UP SuperServer SYS-510P-MR / 1U

Key Applications

  • Small Business
  • Web/Hosting Application
  • Email/Firewall/Print Server

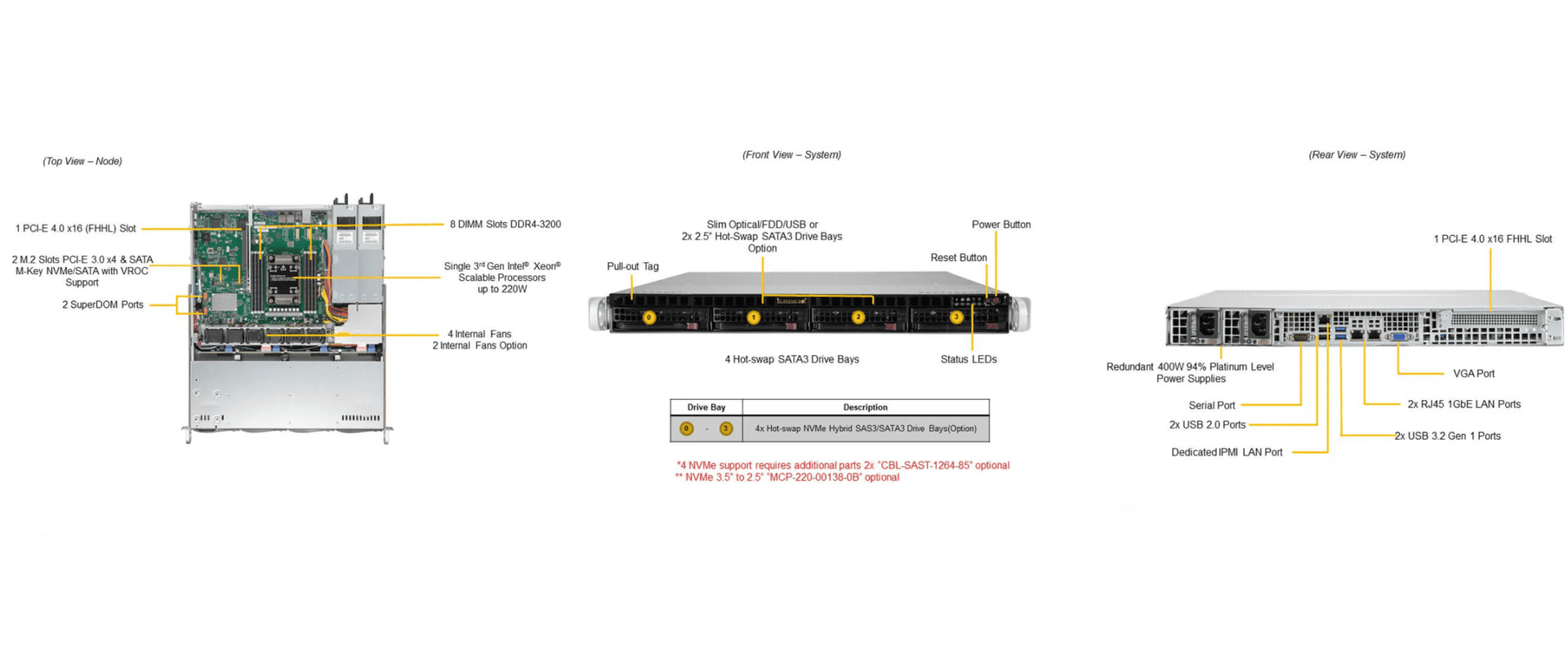

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 220W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 1 PCIe 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller i350 2x 1GbE RJ45
  5. 4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
  6. Redundant Platinum 400W Power Supply

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-510P-MR Standard version with PWS-407P-1R (Platinum Level)
SuperServer SYS-510P-MR-EU European version with PWS-602A-1R (Titanium Level)
Motherboard
Super X12SPO-F
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 36C/72T; Up to 54MB Cache
Note Supports up to 220W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices
SATA SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe NVMe; RAID 0/1/5/10 support (*VROC HW key is required)
Chipset Intel® C621A
Network Connectivity 2x 1GbE BaseT with Intel® i350
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
  • 6 USB 2.0 port(s) (4 headers; 2 rear)
Video 1 VGA port(s)
Serial Port 2 COM Port(s) (1 header; 1 rear)
DOM 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-813MF2TS-R407CBP2
Dimensions and Weight
Height 1.7″ (43mm)
Width 17.2″ (437mm)
Depth 19.98″ (507mm)
Package 8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
  • Net Weight: 17.6 lbs (8 kg)
  • Gross Weight: 30.4 lbs (13.8 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) 1 PCIe 4.0 x16 FHHL slot(s)
Drive Bays / Storage
Drive Bays 4x 3.5″ NVMe/SATA drive bays (4x 3.5″ NVMe hybrid)
M.2
Peripheral Bays 2x 2.5″ drive bays
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
400W Redundant Platinum Level power supplies
Note: SYS-510P-MR-EU (European) SKU uses PWS-602A-1R (Titanium Level)
Dimension (W x H x L) 54.5 x 40.25 x 220 mm
AC Input
  • 400W: 100-240Vac / 50-60Hz
  • 400W: 200-240Vdc / 50-60Hz
+12V
Max: 33A / Min: 0A (100Vac-240Vac)
5V SB
Max: 3A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
