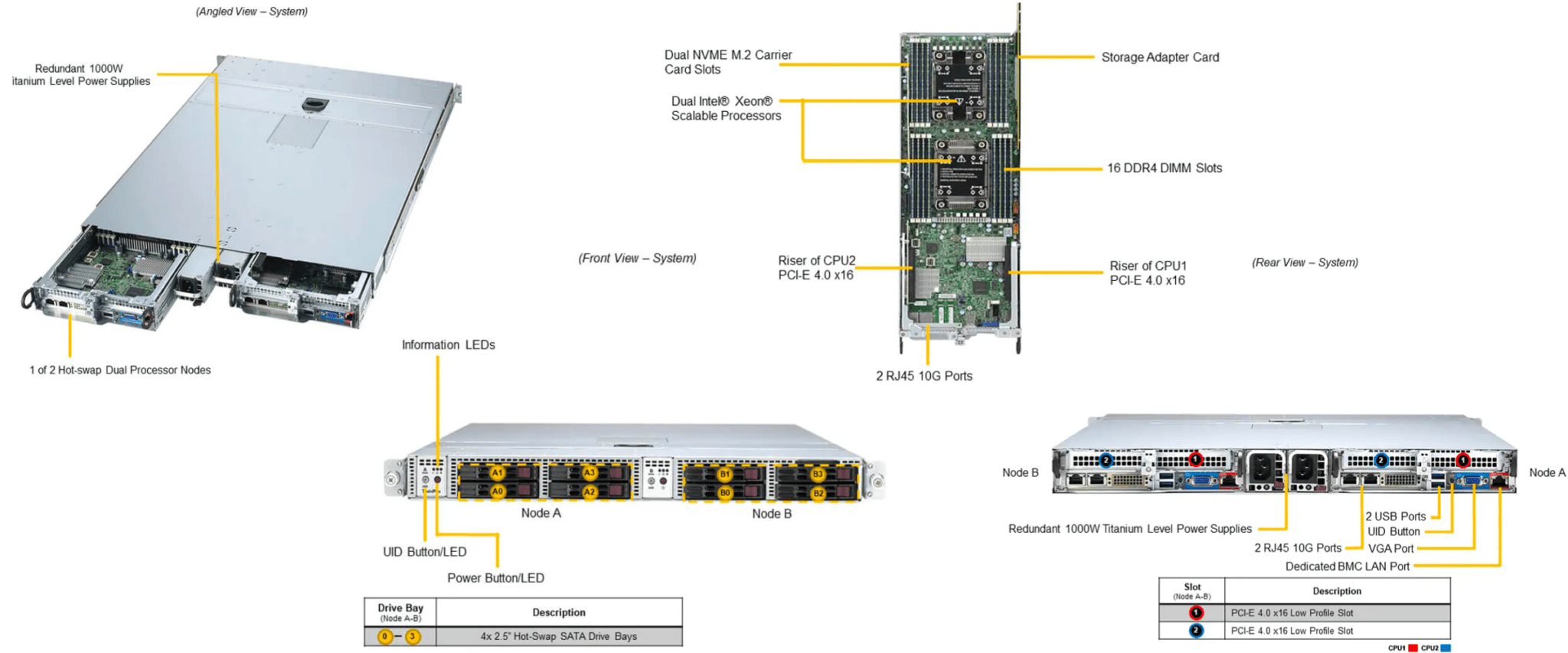

Twin SuperServer SYS-120TP-DTTR / 1U

Key Applications

High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

Key Features

Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
Intel® C621A chipset
16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
2 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)
Intel® X710 Dual port 10GBase-T LAN onboard
4x 2.5″ hot-swap SATA drive bays
6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
Two 1000W redundant power supplies with PMBus
ASPEED AST2600 BMC, 2 USB, VGA. RoT

SATA (6Gbps); 4 slots per node; RAID 0, 1, 5, 10 support.

Product Specifications

Product SKUs
SuperServer SYS-120TP-DTTR
Motherboard
Super X12DPT-PT6
Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache per CPU
Note	Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Memory Voltage	1.2 V
On-Board Devices (per Node)
SATA	SATA3 (6Gbps) via Intel C621A; RAID 0, 1, 5, 10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X710-AT2
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)
Others	M.2 2 NVME M.2 (up to 22×80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only.
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	5 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-809H-R1K05P3
Dimensions and Weight
Height	1.7″ (43mm)
Width	17.25″ (438mm)
Depth	28.25″ (718mm)
Package	8″ (H) x 29.6″ (W) x 38.4″ (D)
Weight	Net Weight: 33.5 lbs (15.2 kg) Gross Weight: 48.1 lbs (21.9 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button UID button
LEDs	Network activity LED Power status LED System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)	2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage (per Node)
Hot-swap	4x 2.5″ hot-swap SATA drive bays
M.2	View M.2 Options
System Cooling
Fans	6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shroud(s)
Power Supply
1000W Redundant Titanium Level power supplies
Dimension (W x H x L)	38 x 40 x 360 mm
AC Input	800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz 1000W: 240-240Vdc / 50-60Hz
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
