Twin A+ Server AS-2126FT-HE-LCC / 2U

Key Applications

  • Oil & Gas
  • Scientific Research
  • High Performance Computing (HPC)
  • Research Lab

Key Features

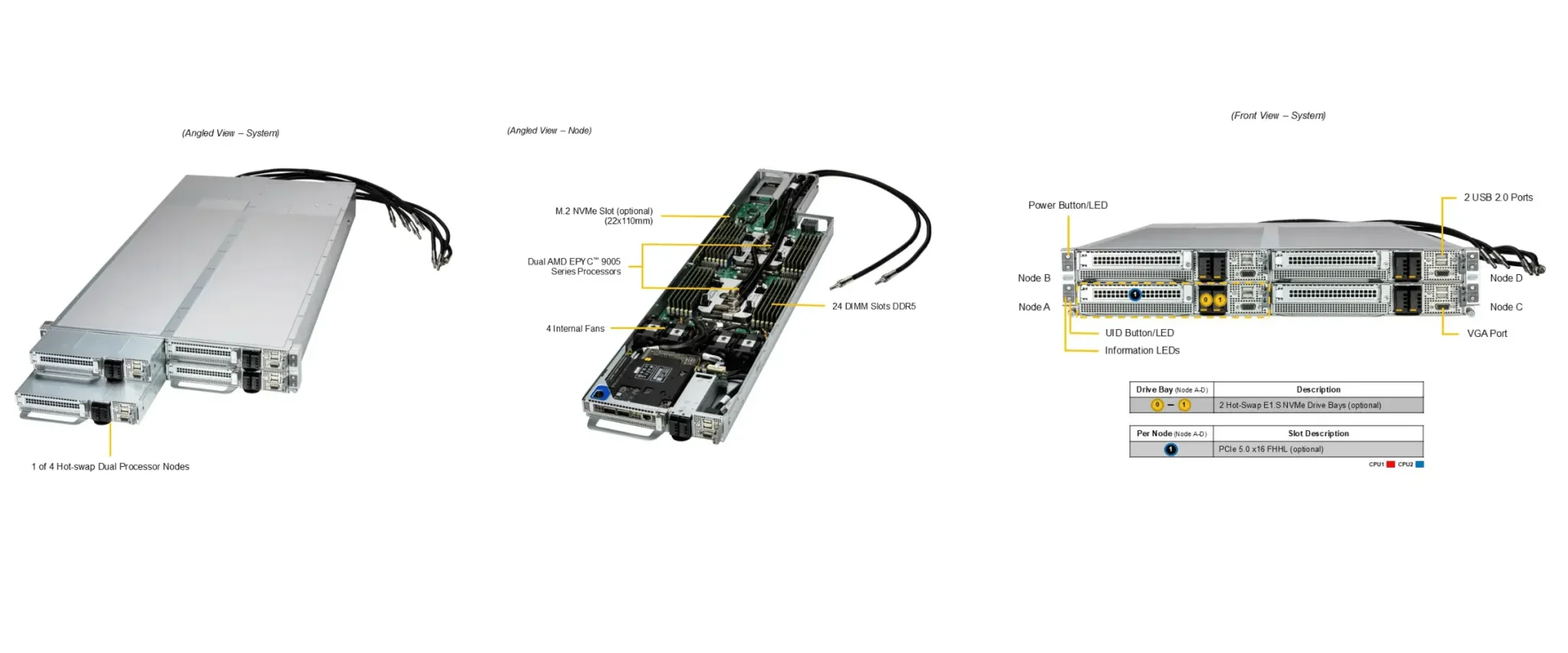

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Dual AMD EPYC™ 9005/9004 Series Processors up to 500W with liquid cooling
  2. Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
  3. Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
  4. Optional 1 PCIe 5.0 x16 FHHL slot + 1 PCIe 5.0 x16 LP slot
  5. Optional 2 E1.S Slots + Optional 2 M.2 NVME drive Slots
  6. 4 Redundant Up to 3200W Titanium Level Power Supplies

Categories

Download datasheet

Product Specifications

Product SKUs A+ Server AS -2126FT-HE-LCC
Motherboard Super H14DST-F
Processor (per Node)
CPU Dual processor(s), AMD EPYC™ 9005/9004 Series Processors
Core Count Up to 192C/384T; Up to 512MB Cache per CPU
Note Supports up to 500W TDP CPUs (Liquid Cooled)
System Memory (per Node)
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
Chipset System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN suppor
Input / Output (per Node)
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 ports (front)
Video 1 VGA port
TPM 1 TPM Onboard/port 80
System BIOS AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Power configurations ACPI/APM Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism
Security
Hardware Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
Voltage System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis 2U Rackmount
Model CSE-F214EC-000NP
Dimensions and Weight
Height 3.46″ (88 mm)
Width 17.67″ (449 mm)
Depth 37.09″ (942 mm)
Package 10.83″ (H) x 27.29″ (W) x 50.32″ (D)
Weight
  • Gross Weight: 72.45 lbs (32.86 kg)
  • Net Weight: 54.9 lbs (24.93 kg)
Available Color Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default: 1 PCIe 5.0 x16 LP slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A*: 1 PCIe 5.0 x16 LP slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x16 FHHL slot
  • (*Requires additional parts, refer to system callout images for details)
  • View AOC Options
M.2 2 M.2 NVMe slots (M-key 22110(default); Optional Configuration)
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; Optional Configuration)
System Cooling
Fans 16 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling Direct to Chip (D2C) Cold Plate
Power Supply
4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 185 mm
Input 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Output Type Backplanes (gold finger)
4x 2700W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2700W: 200-240Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz
+12V Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 225A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Output Type Backplanes (gold finger)
4x 3200W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 185 mm
Input 3200W: 0240Vdc / 50-60Hz (for CQC only) 1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz
+12V Max: 82A / Min: 0A (100Vac-127Vac) Max: 237.7A / Min: 0A (200Vac-207Vac) Max: 245.9A / Min: 0A (207Vac-220Vac) Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB Max: 3A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling Return Server-End of Life Product
