Storage SuperServer SSG-640SP-DE1CR90 / 4U | Taknet
  • Supermicro

Storage SuperServer SSG-640SP-DE1CR90 / 4U

Key Applications

  • Big Data & Analytics, Data Lake
  • HPC and AI/ML Workloads
  • Telco & Cloud Service Providers
  • Financial Services & Healthcare Image Archives
  • Content Repositories
  • Government Data Protection

Key Features

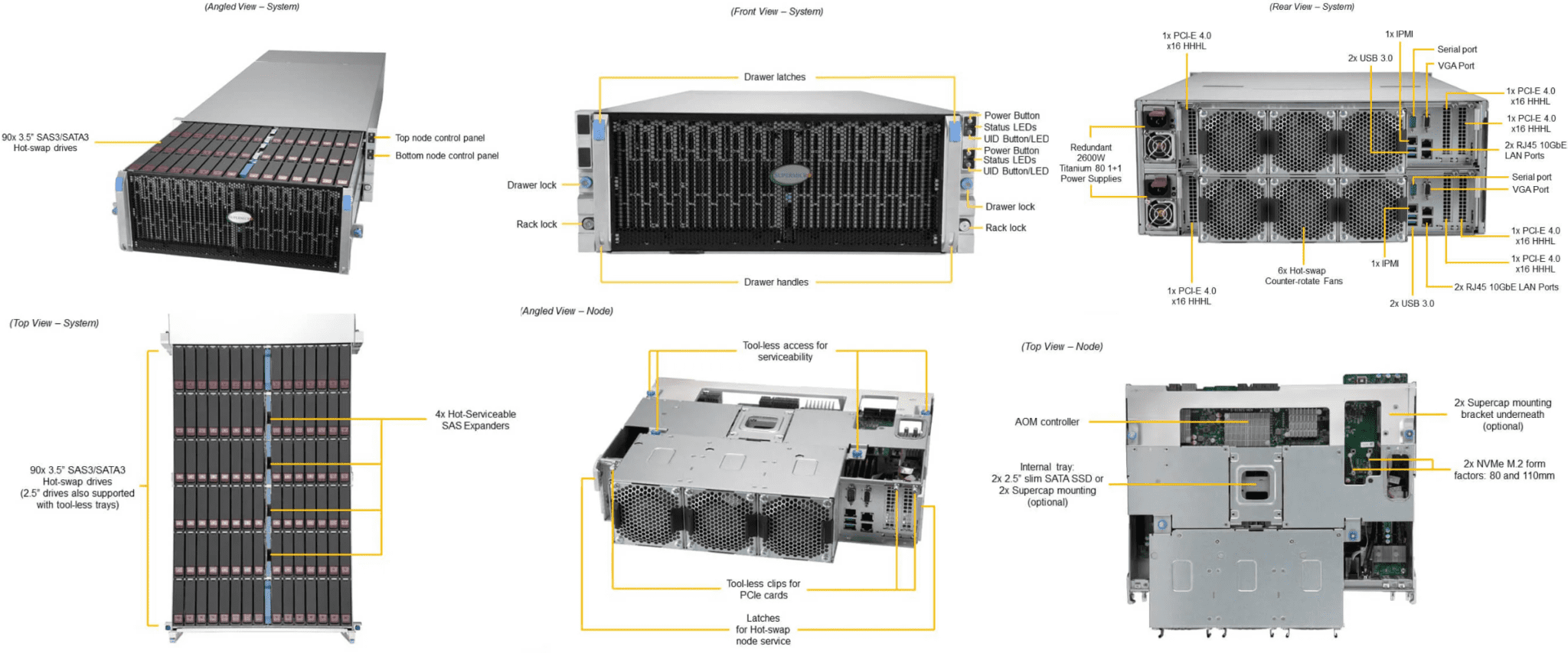

Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCIe 4.0 x16 HHHL PCIe slots
  4. 90 3.5″/2.5″ Hot-swap SAS3/SATA3 drives (Each node controls 45 drives)
  5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 2600W Redundant Power Supplies Titanium Level (96%)
  7. Drive Controller support via Broadcom® 3916 or 3616
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-640SP-DE1CR90
Motherboard
Super X12DSC-6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 36C/72T; Up to 54MB Cache per CPU
Note Supports 120W – 205W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage 1.2 V
On-Board Devices (per Node)
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB 2 USB 3.0 port(s) (2 Rear_USB)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 rear)
DOM 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSV-947HTS-R2K63P
Dimensions and Weight
Height 7″
Width 17.6″
Depth 42.1″
Package 29.92″ (H) x 35.82″ (W) x 53.15″ (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 240 lbs (108.86 kg)
Available Color Black
Expansion Slots (per Node)
PCI-Express (PCIe) 3 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 90x 3.5″ hot-swap SATA3/SAS3 drive bays
  • 2x 2.5″ 7mm drive bays
M.2
System Cooling
Fans 6 Heavy Duty 8cm Fan(s)
Power Supply
2600W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 265 mm
AC Input
  • 2600W: 200-240Vac / 50-60Hz
  • 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
  • 5% to 95% (Non-Condensing)
