GrandTwin SuperServer SYS-210GT-HNTF / 2U

Key Applications

  • HPC
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • High-availability Cache Cluster
  • Telco Edge Cloud
  • EDA (Electric Design Automation)
  • Mission Critical Web Applications

Key Features

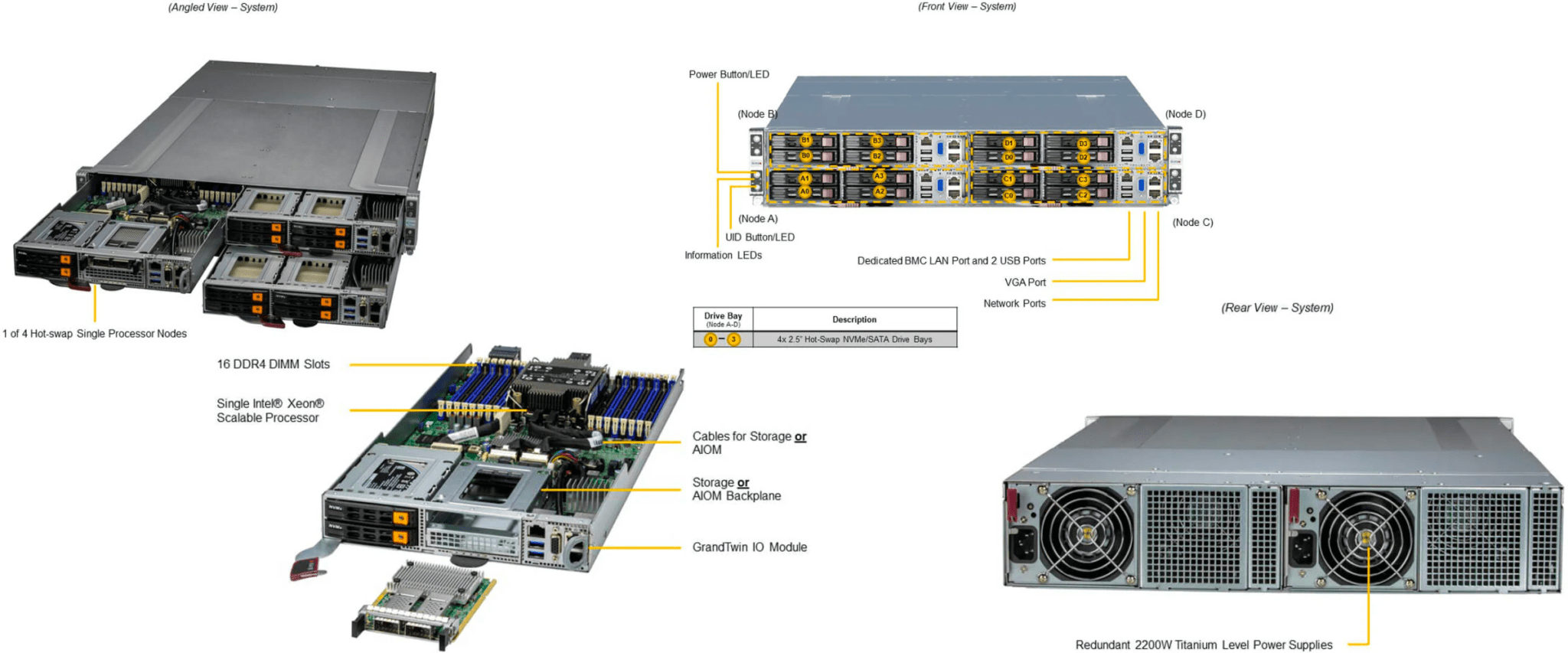

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
  2. Intel® C621A
  3. 16 DIMM Slots up to 4TB
  4. Optional: AIOM PCIe 4.0 x16 LP (OCP 3.0 compliant)
  5. Two optional storage modules. Each module supports 2x NVMe or SATA drive bays
  6. 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design
  7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-210GT-HNTF
Motherboard
Super X12SPT-G
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 40C/80T; Up to 60MB Cache
Note Supports up to 270W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
On-Board Devices (per Node)
Chipset Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
1 RJ45 Dedicated BMC LAN port
USB
2 USB 3.0 port(s) (2 USB)
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Chassis
Form Factor 2U Rackmount
Model CSE-GT214BF-R2K21BP
Dimensions and Weight
Height 3.46″ (88mm)
Width 17.67″ (449mm)
Depth 28″ (711.2mm)
Package 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Net Weight: 68 lbs (30.8 kg)
  • Gross Weight: 88 lbs (39.9 kg)
Available Color Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
1 PCIe 4.0 x16 slot(s)
Drive Bays / Storage (per Node)
Hot-swap
4x 2.5″ hot-swap NVMe/SATA drive bays (4x 2.5″ NVMe dedicated)
M.2
System Cooling
Fans 2x 16.5K RPM Heavy Duty 8cm Fan(s)
Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L) 106.5 x 84 x 245.3 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
  • Max: 174.17A (230Vac-240Vac)
12V SB Max: 2A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 5°C ~ 40°C (41°F ~ 104°F)
Non-operating Temperature:
  • -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity:
  • 8% to 80% (non-condensing)
Non-operating Relative Humidity:
  • 8% to 90% (non-condensing)
