GrandTwin A+ Server AS-2115GT-HNTF / 2U

Key Applications

  • HPC
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • High-availability Cache Cluster
  • Telco Edge Cloud
  • EDA (Electric Design Automation)
  • Mission Critical Web Applications

Key Features

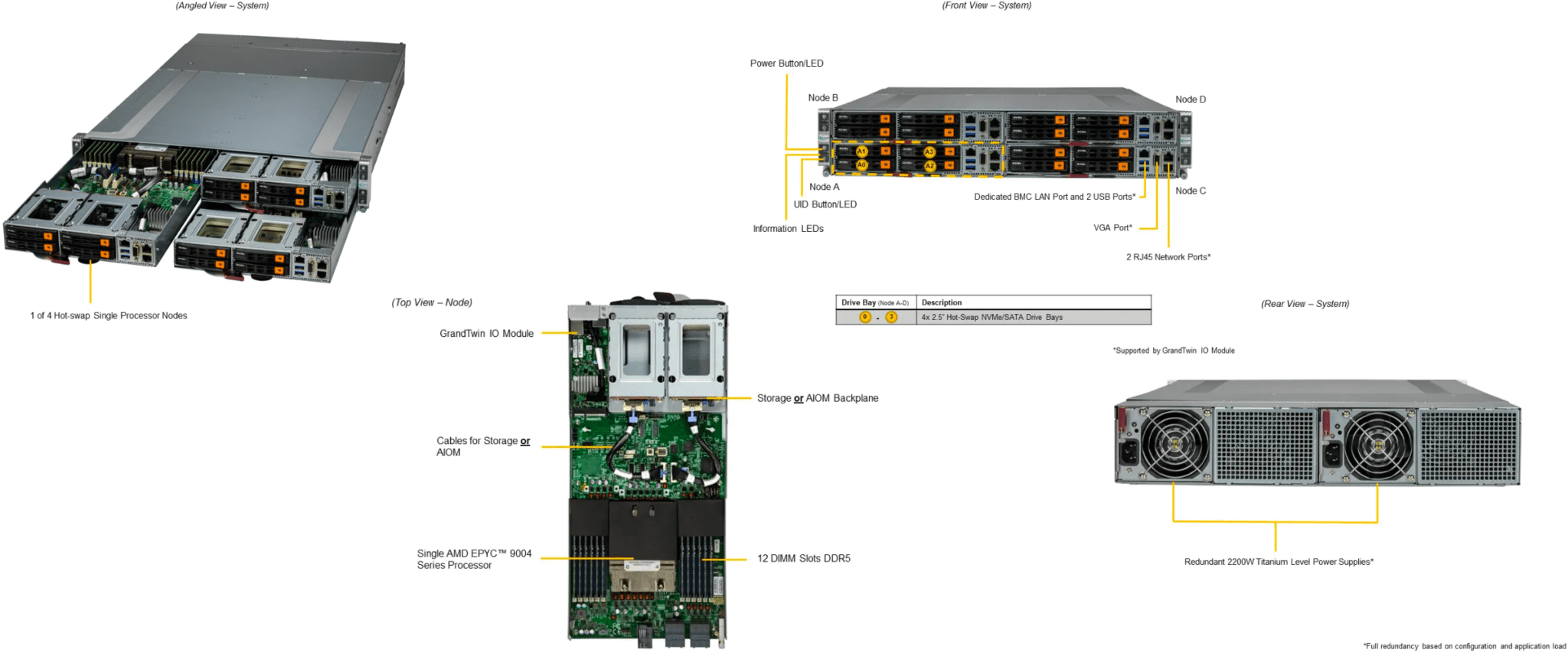

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Single-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
  2. 12 DIMM Slots , up to 3TB DDR5 memory
  3. Flexible bays for either Storage or AIOM / OCP 3.0 slots
  4. Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
  5. Up to 4 Hot-swap 2.5″ NVMe/SATA drives

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS -2115GT-HNTF
Motherboard
Super H13SST-G
Processor (per Node)
CPU
Core Count Up to 128C/256T
Note Supports up to 400W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
On-Board Devices (per Node)
Chipset AMD SP5
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
1 RJ45 Dedicated BMC LAN port
USB
2 USB 3.0 port(s) (2 USB)
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Voltage Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Chassis
Form Factor 2U Rackmount
Model CSE-GT214BF-R2K21BP
Dimensions and Weight
Height 3.46″ (88mm)
Width 17.67″ (449mm)
Depth 28″ (711.2mm)
Package 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Net Weight: 68 lbs (30.8 kg)
  • Gross Weight: 88 lbs (39.9 kg)
Available Color Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
1 PCIe 5.0 x16 LP slot(s)
Note
Internal Low profile slot only, requires optional riser kit and 2 drive bay slots.
Drive Bays / Storage (per Node)
Hot-swap
4x 2.5″ hot-swap NVMe/SATA drive bays (4x 2.5″ NVMe hybrid)
M.2
System Cooling
Air Shroud 1 per node Air Shroud(s)
Fans 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L) 106.5 x 84 x 245.3 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
  • Max: 174.17A (230Vac-240Vac)
12V SB Max: 2A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity:
  • 8% to 80% (non-condensing)
Non-operating Relative Humidity:
  • 8% to 90% (non-condensing)
