FatTwin SuperServer SYS-F610P2-RTN / 4U

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Scale-Out Storage
  • Virtualization Server
  • Telco Data Center

Key Features

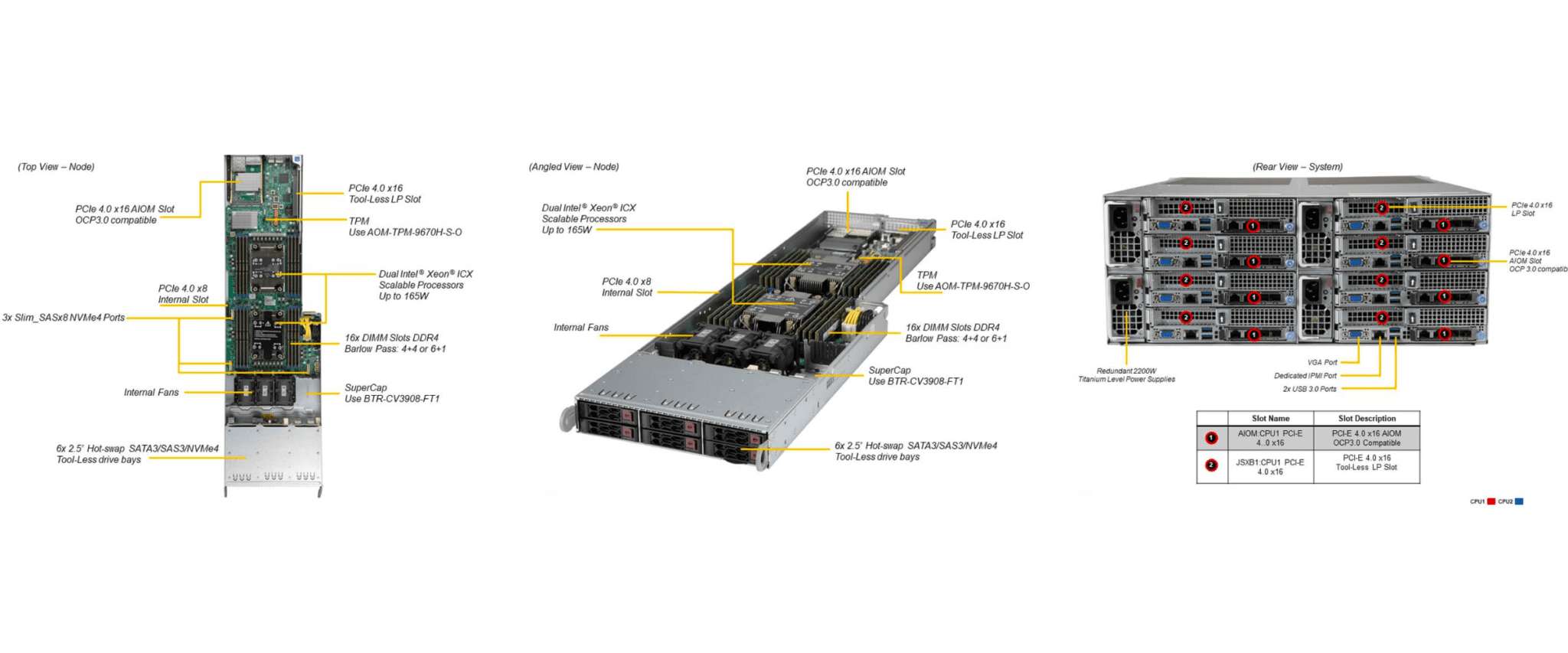

Eight hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
  1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
  2. 16 DIMMs Supports up to 4TB  Intel® Optane Persistent Memory 200  Series; up to 2TB DDR 4-3200
    Two M.2 Internal Drives
  3. Network Connectivity Via AIOM (OCP 3.0 Compliant)
    NVMe/SATA/SAS options
  4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
  5. Front access node for better serviceability; 6x 2.5” hot-swap HDDs per node
    Up to 6x SAS/SATA/NVMe Hot Swap 2.5” Drives

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-F610P2-RTN
Motherboard
Super X12DPFR-AN6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 36C/72T; Up to 54MB Cache per CPU
Note Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB non-ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices (per Node)
Chipset Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
14 SATA (6Gbps) port(s)
NVMe
6 NVMe U.2 options
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 port(s) (2 rear)
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Chassis
Form Factor 4U
Model CSE-F418BC3-R2K20BP
Dimensions and Weight
Height 6.96″ (177mm)
Width 17.63″ (448mm)
Depth 29″ (737mm)
Package 15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
1 PCIe 4.0 x8 LP slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5″ hot-swap NVMe/SATA/SAS drive bays (6x 2.5″ NVMe hybrid)
  • 6x 2.5″ 7mm drive bays
M.2 View M.2 Options
System Cooling
Fans 3x 4cm Fan(s)
Power Supply
8800W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB Max: 1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 5% to 95% (8)
Non-operating Relative Humidity:
  • 90% to 5% (95)
