FatTwin SuperServer SYS-F511E2-RT / 4U

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Telco Data Center

Key Features

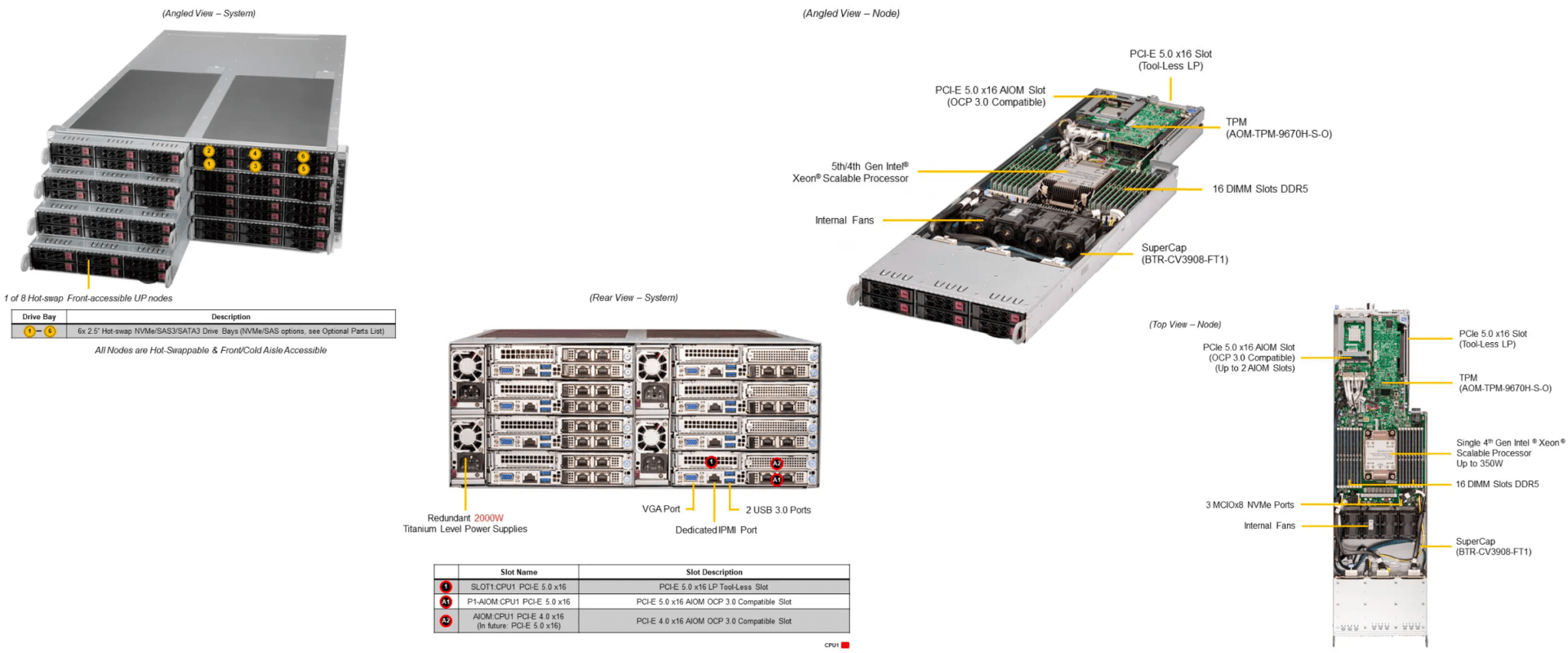

Eight hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
  1. Single Socket E (LGA-4677) Supports 4th/5th Gen Intel® Xeon® Scalable Processor
  2. C741 Chipset
  3. 16 DIMMs Up to 4TB 5600MTs DDR5
    Two M.2 Internal Drives
  4. Network Connectivity Via AIOM (OCP 3.0 Compliant)
    NVMe/SATA/SAS options
  5. AIOM and M.2 support; 2 AIOM card support (PCIe 5.0)
  6. Up to 6x SAS/SATA/NVMe Hot Swap 2.5” Drives

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-F511E2-RT
Motherboard
Super X13SEFR-A
Processor (per Node)
CPU
Core Count Up to 60C/120T; Up to 112.5MB Cache
Note Supports up to 350W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 5600MT/s non-ECC DDR5
Memory Voltage 1.1 V
On-Board Devices (per Node)
Chipset Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
10 SATA (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 port(s) (2 rear)
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • 4 40 mm Heavy Duty Fans per Node
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Chassis
Form Factor 4U
Model CSE-F418BC4-R2K08BP
Dimensions and Weight
Height 6.96″ (177mm)
Width 17.63″ (448mm)
Depth 29″ (737mm)
Package 15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
  • 1 PCIe 5.0 x16 LP slot(s)
  • 2 AIOM slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5″ hot-swap NVMe/SATA/SAS drive bays (6x 2.5″ NVMe hybrid)
  • 6x 2.5″ 7mm drive bays
M.2
System Cooling
Fans 4x 4cm Fan(s)
Power Supply
2000W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 5% to 95% (8)
Non-operating Relative Humidity:
  • 90% to 5% (95)
