BigTwin SuperServer SYS-222BT-HER / 2U

Key Applications

  • All-Flash NVMe Hyperconverged Infrastructure
  • Container-as-a-Service; Application Accelerator
  • High-Performance File System
  • Diskless HPC Clusters

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 205W with air cooling or 330W with liquid cooling
  2. Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
  3. Flexible networking with OCP 3.0 AIOM slot
    • Up to 2 PCIe 5.0 x16 LP slots
    • Internal PCIe 5.0 for 2x NVMe M.2 support onboard
    • Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
  5. Up to 8 front hot-swap E3.S 1T PCIe 5.0 NVMe drive bays

Categories

Download datasheet

Product Specifications

Product SKUs SuperServer SYS-222BT-HER

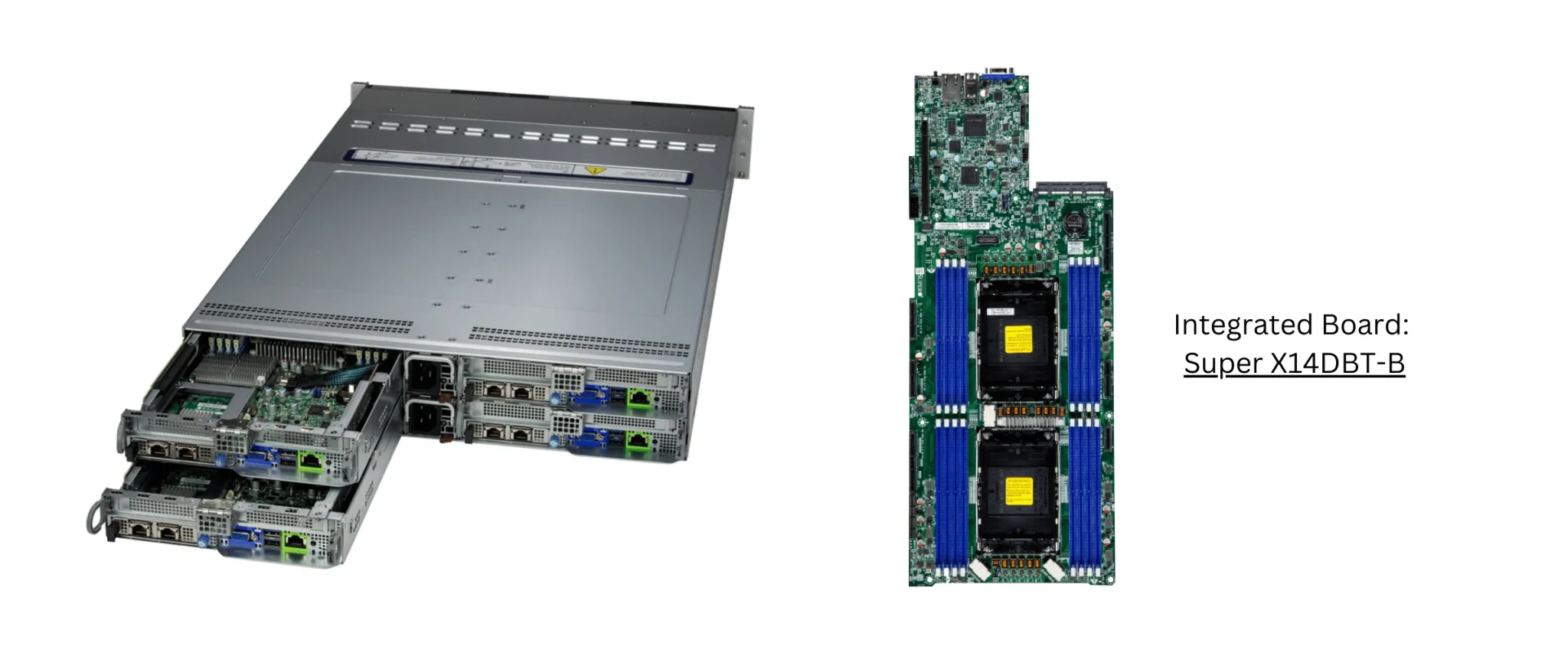

Motherboard Super X14DBT-B
Processor (per Node)
CPU Dual Socket E2 (LGA-4710), Intel® Xeon® 6700 series processors with E-cores
Core Count Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 205W TDP CPUs (Air Cooled)*
  • Supports up to 330W TDP CPUs (Liquid Cooled)
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
Chipset System on Chip
Network Connectivity
Input / Output (per Node)
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 Gen2 Type-A ports (Rear)
Video 1 VGA port
System BIOS AMI 32MB Flash ROM
Management
Software
Power configurations ACPI/APM Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
Chassis 2U Rackmount
Model CSE-217BE3Q-R3K60P
Dimensions and Weight
Height 3.47″ (88 mm)
Width 17.68″ (449 mm)
Depth 28.75″ (730 mm)
Package 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 96.6 lbs (43.8 kg)
  • Net Weight: 66.1 lbs (30 kg)
Available Color Black front & silver body
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x16 LP slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 8 bays
  • 8 front hot-swap E3.S 1T PCIe 5.0 NVMe drive bays
  • View NVMe Options
M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; VROC required for RAID)
System Cooling
Fans 4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)
Power Supply
Type 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 45 x 40 x 480 mm
Input
  • 3600W: 0240Vdc / 50-60Hz (for CQC only)
  • 1400W: 100-127Vac / 50-60Hz
  • 3000W: 200-207.9Vac / 50-60Hz
  • 3100W: 208-219.9Vac / 50-60Hz
  • 3250W: 220-229.9Vac / 50-60Hz
  • 3450W: 230-237.9Vac / 50-60Hz
  • 3600W: 238-240Vac / 50-60Hz
+12V
  • Max: 112A / Min: 0A (100Vac-127Vac)
  • Max: 240A / Min: 0A (200Vac-207.9Vac)
  • Max: 248A / Min: 0A (208Vac-219.9Vac)
  • Max: 260A / Min: 0A (220Vac-229.9Vac)
  • Max: 276A / Min: 0A (230Vac-237.9Vac)
  • Max: 288A / Min: 0A (238Vac-240Vac)
12V SB Max: 4.5A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
