BigTwin SuperServer SYS-222BT-DNR / 2U

Key Applications

  • High-Performance File System
  • Diskless HPC Clusters
  • Scale Out All-Flash NVMe Storage
  • Big Data Analytics and AI

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 330W with air or liquid cooling
  2. Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
  3. Flexible networking with OCP 3.0 AIOM slot
    • Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slots
    • Internal PCIe 5.0 for 2x NVMe M.2 support onboard
    • Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
  5. Up to 12 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-222BT-DNR
Motherboard

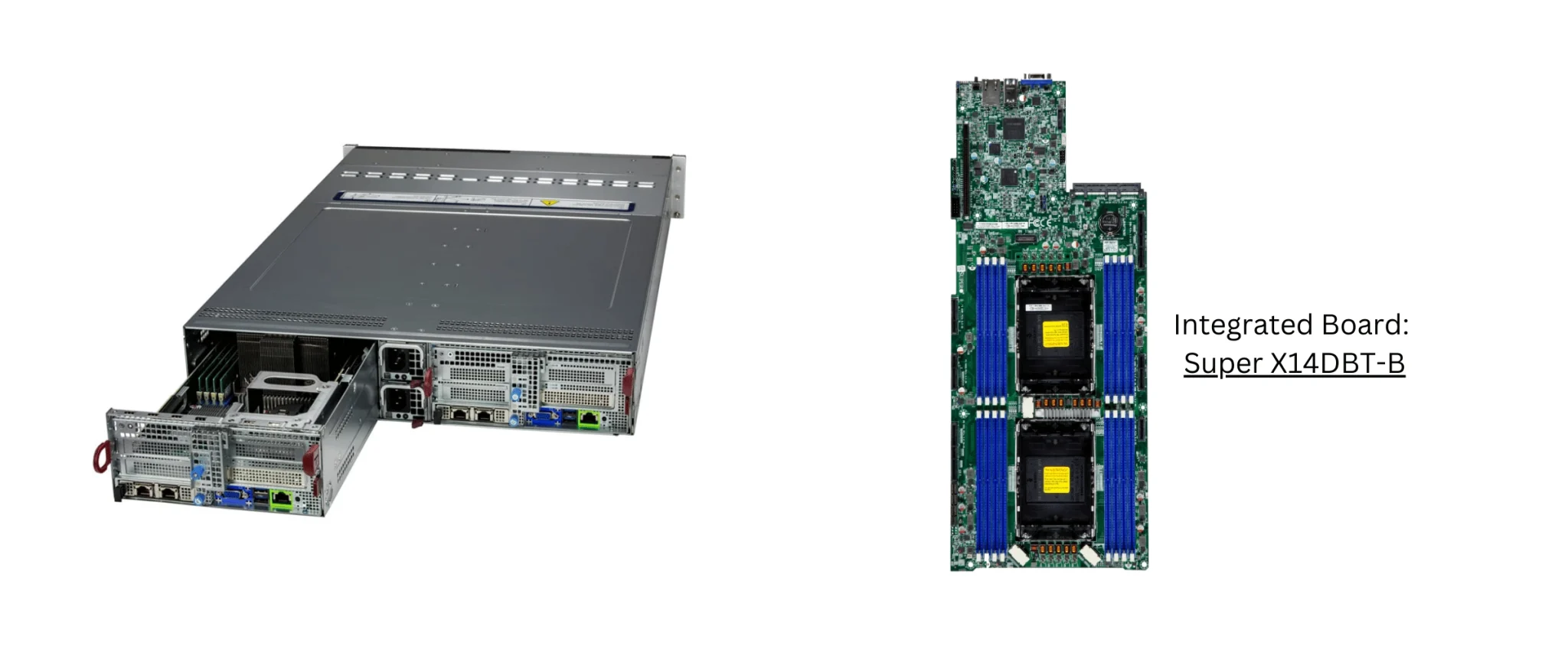

Super X14DBT-B
Processor (per Node)
CPU Dual Socket E2 (LGA-4710), Intel® Xeon® 6700 series processors with E-cores
Core Count Up to 144C/144T; Up to 108MB Cache per CPU
Note Supports up to 250W TDP CPUs (Air Cooled) Supports up to 330W TDP CPUs (Liquid Cooled)
System Memory (per Node)
Memory Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 64000MT/s ECC DDR5 RDIMM View Memory Options
On-Board Devices (per Node)
Chipset System on Chip
Network Connectivity Via AIOM View AIOM Options View AOC Options
Input / Output (per Node)
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 Gen2 Type-A ports (Rear)
Video 1 VGA port
System BIOS
BIOS Type AMI 32MB Flash ROM
Management
Software
Power configurations ACPI/APM Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator
Chassis
Form Factor 2U Rackmount
Model CSE-217BD2-R2K22P
Dimensions and Weight
Height 3.47″ (88 mm)
Width 17.68″ (449 mm)
Depth 28.75″ (730 mm)
Package 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight Gross Weight: 80.7 lbs (36.6 kg) Net Weight: 55.1 lbs (25 kg)
Available Color Black front & silver body
Front Panel
LED HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Buttons Power On/Off button UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration Default 2 PCIe 5.0 x8 LP slots 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration Default: Total 12 bays 12 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110 (default); VROC required for RAID)
System Cooling
Fans 4x 16.5K RPM Heavy Duty 80x80x38mm Fan(s)
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 45 x 40 x 480 mm
Total Output Power for CCC only
Input
  • 1200W: 100-127Vac
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
  • 1800W: 200-220Vac
  • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
  • 1980W: 220-230Vac
  • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
  • 2090W: 230-240Vac
  • 2090W: 230-240Vdc (for CCC only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
  • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
  • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (connector)
Operating Environment
ROHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
