• Supermicro

A+ Server AS-F2014S-RNTR / 4U

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Scale Out Storage
  • Telco Data Center
  • Virtualization Server

Key Features

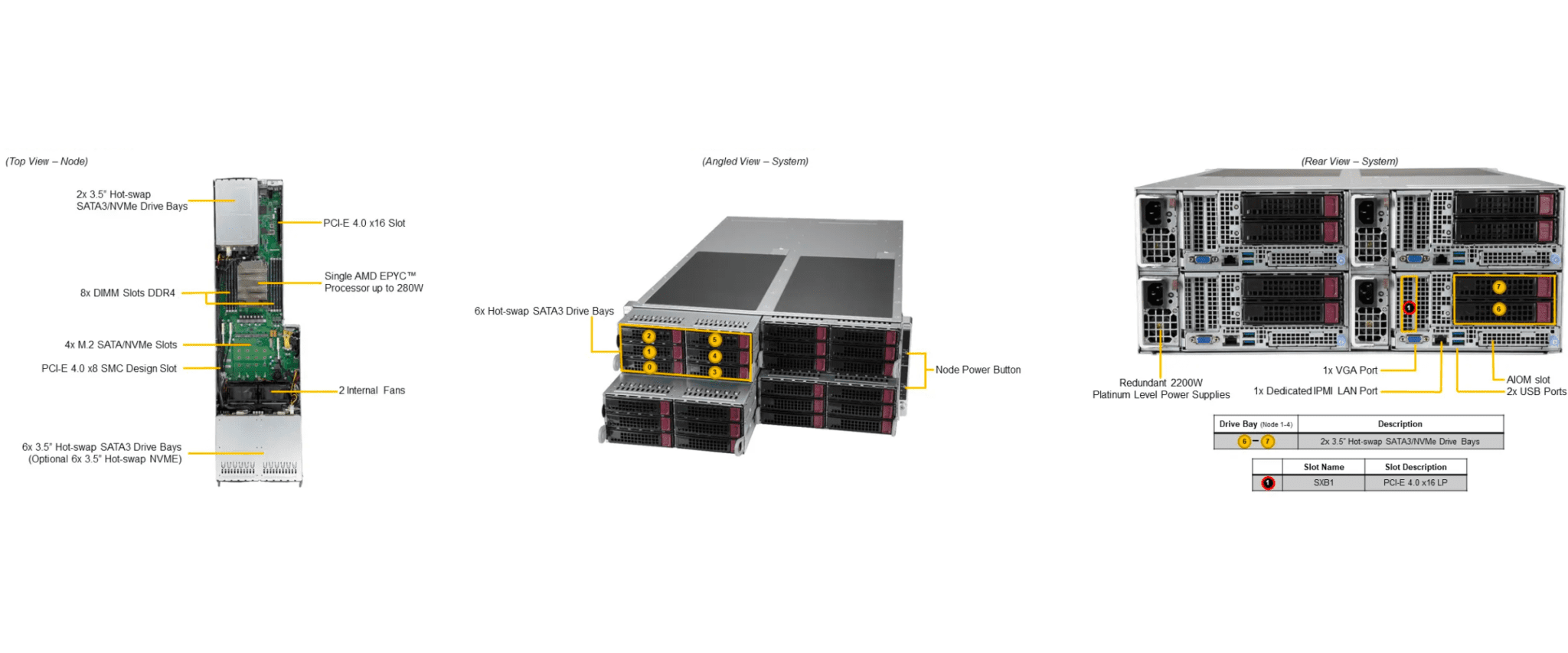

4 Hot-pluggable System Nodes in a 4U form factor.
Each node supports:
  1. Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
  3. Expansion slots:
    • 1 PCI-E 4.0 x16 (LP Riser),
    • 1 PCI-E 4.0 x8 (for Internal RAID AOC)
  4. AIOM Network card, 1 dedicated IPMI LAN port
  5. 1 VGA, 2 USB 3.0 ports
  6. 8 Hot-swap 3.5″ drive bays:
    • Front 6 SATA (Optional NVMe support),
    • Rear 2 SATA/NVMe
    M.2 Interface: 4 SATA/PCI-E 4.0 x4
    M.2 Form Factor: 2242, 2260, 2280, 22110
    M.2 Key: M-Key
  7. 2x 8cm 13.5K RPM middle fans
  8. 2200W Redundant Power Supplies, Titanium Level (96%)
    (Full redundancy based on configuration and application load)

Categories

Download datasheet

Product Specifications

Product SKUs
AS -F2014S-RNTR A+ Server F2014S-RNTR (Black)
Motherboard
Super H12SSFR-AN6
Processor/Chipset (per Node)
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
  • (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP/cTDP up to 280W*
Cores Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SATA3 (6Gbps)
Network Controllers
Flexible networking via AIOM (not included, must add 1 per node)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2600 BMC
Input / Output (per node)
LAN
  • Flexible networking via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
VGA 1 VGA port
Others
  • 1 COM port
  • 1 TPM 2.0 header
System BIOS
BIOS Type 256Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations ACPI Power Management
PC Health Monitoring
CPU Monitors for CPU Cores
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSE-F424AS3-R2K20BP
Dimensions and Weight
Width 17.63″ (448mm)
Height 6.96″ (177mm)
Depth 29″ (737mm)
Package 28.3″ (W) x 15.0″ (H) x 42.4″ (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors Black
Front Panel (per node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 4.0 x16 (Low-profile riser)
  • 1 PCI-E 4.0 x8 (Internal RAID AOC)
Drive Bays (per node)
Hot-swap
8 Hot-swap 3.5″ drive bays: Front 6 SATA (optional NVMe support), Rear 2 SATA/NVMe
M.2
  • M.2 Interface: 4 SATA/PCI-E 4.0 x4
  • M.2 Form Factor: 2242, 2260, 2280, 22110
  • M.2 Key: M-Key
Backplane
1 SATA/NVMe backplane
System Cooling (per node)
Fans 2x 8cm 13.5K RPM middle fans
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency 50-60Hz
Dimensions (W x H x L) 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB Max: 1A / Min: 0A
Output Type Backplanes (gold finger)
Certification
Titanium Level
[ Test Report ]
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
