Supermicro

A+ Server AS-F1114S-RNTR / 4U

Key Applications

Hyperscale / Hyperconverged
HPC and Big Data
Data Center Enterprise Applications
Scale Out Storage
Telco Data Center
Virtualization Server

Key Features

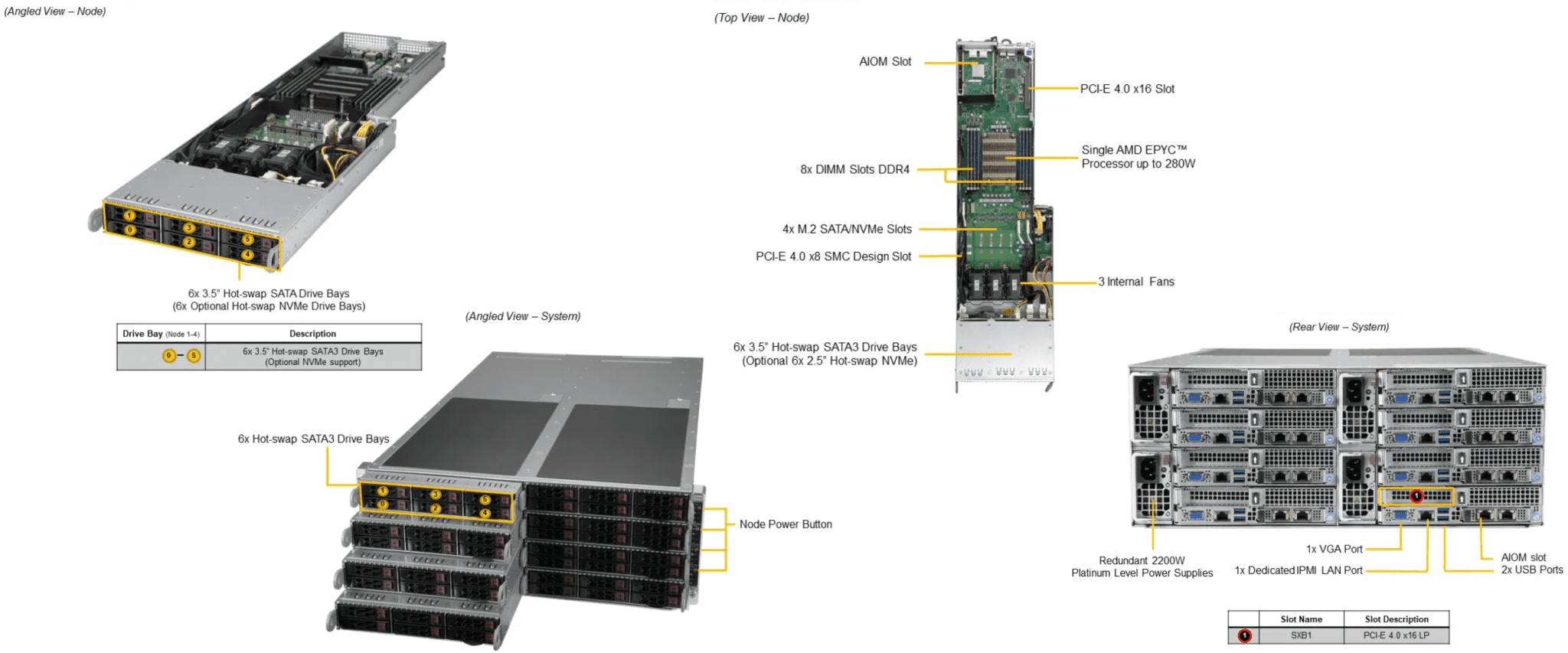

8 Hot-pluggable System Nodes in a 4U form factor. Each node supports:

Single AMD EPYC™ 7003/7002 Series Processor

(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Up to 2TB ECC 3DS LRDIMM,

up to DDR4-3200MHz; 8 DIMM slots
Expansion slots: 1 PCI-E 4.0 x16 (LP Riser),

1 PCI-E 4.0 x16 (for AIOM)
AIOM Network card,

1 dedicated IPMI LAN port
1 VGA, 2 USB 3.0 ports
6 Hot-swap 2.5″ drive bays:

2 NVMe/SATA3,

4 SATA3 (optional NVMe with additional cables)

M.2 Interface: 4 SATA/PCI-E 4.0 x4

M.2 Form Factor: 2242, 2260, 2280, 22110

M.2 Key: M-Key
3x 4cm 17.6K RPM middle fans
2200W Redundant Power Supplies

Titanium Level (96%)

(Full redundancy based on configuration and application load)

Product Specifications

Product SKUs
AS -F1114S-RNTR	A+ Server F1114S-RNTR (Black)
Motherboard
Super H12SSFR-AN6
Processor/Chipset (per Node)
CPU	Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Supports CPU TDP / cTDP up to 280W*
Cores	Up to 64 Cores
Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity	8 DIMM slots Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
SATA	SATA3 (6Gbps)
Network Controllers	Flexible networking via AIOM (not included, must add 1 per node)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2600 BMC
Input / Output (per node)
LAN	Flexible networking via AIOM 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
VGA	1 VGA port
Others	1 COM port 1 TPM 2.0 header
System BIOS
BIOS Type	256Mb SPI Flash EEPROM with AMI BIOS
Management
Software	IPMI 2.0 KVM with dedicated LAN SSM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-F418BC3-R2K20B
Dimensions and Weight
Width	17.63″ (448mm)
Height	6.96″ (177mm)
Depth	29″ (737mm)
Package	28.3″ (W) x 15.0″ (H) x 42.4″ (D)
Weight	Net Weight: 150 lbs (68.04 kg) Gross Weight: 200 lbs (90.71 kg)
Available Colors	Black
Front Panel (per node)
Buttons	Power On/Off button UID button
LEDs	Power status LED Hard drive activity LED Network activity LEDs Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express	1 PCI-E 4.0 x16 (Low-profile riser) 1 PCI-E 4.0 x8 (Internal RAID AOC)
Drive Bays (per node)
Hot-swap	2 Hot-swap 2.5″ NVMe/SATA3 and 4 SATA3 (optional NVMe with additional cables)
M.2	M.2 Interface: 4 SATA/PCI-E 4.0 x4 M.2 Form Factor: 2242, 2260, 2280, 22110 M.2 Key: M-Key
Backplane
1 SATA/NVMe backplane
System Cooling (per node)
Fans	3x 4cm 17.6K RPM middle fans
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input	1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency	50-60Hz
Dimension (W x H x L)	76 x 40 x 336 mm
+12V	Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (230-240Vac) Max: 183.3A / Min: 0A (220-240Vac)
5VSB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
