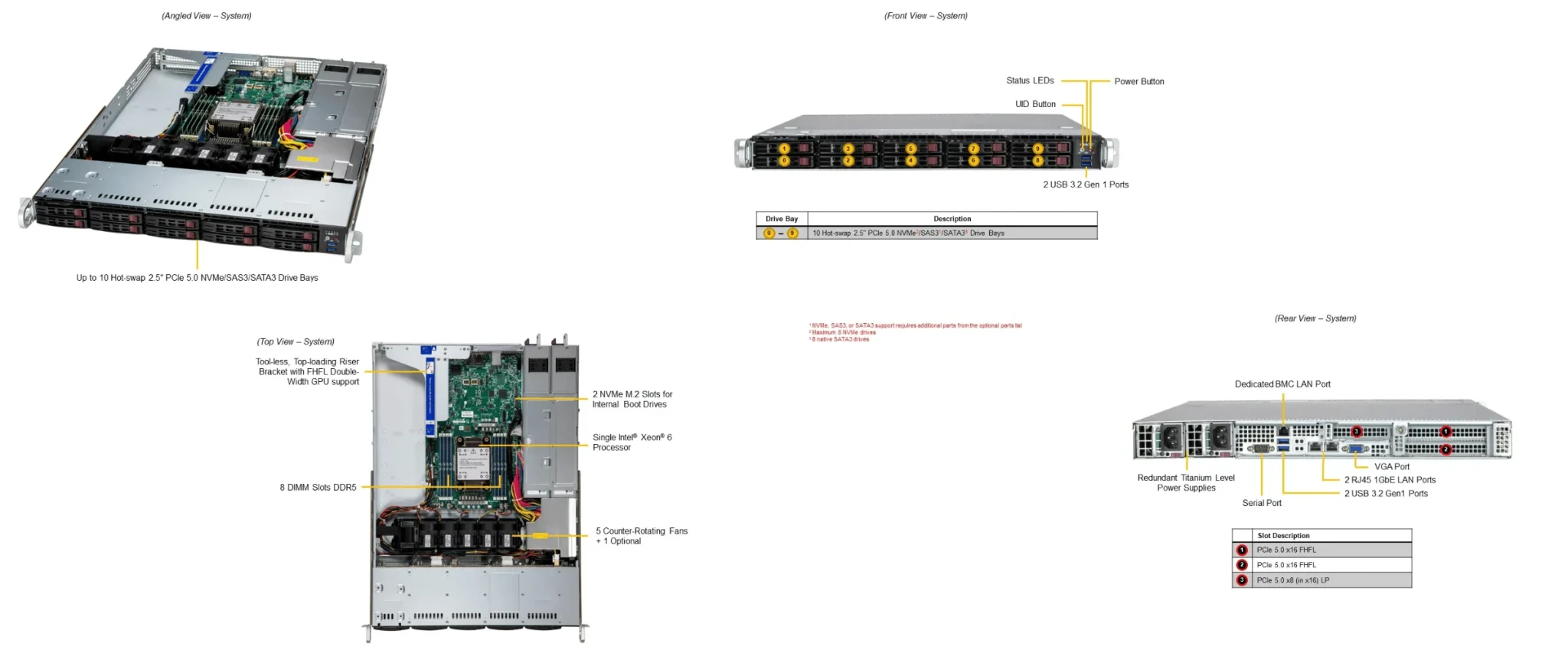

WIO SuperServer SYS-112B-WR / 1U

Key Applications

  • Virtualization
  • Networking Appliance
  • Cloud Computing
  • Data Center Optimized
  • Database/Storage
  • Storage Headnode
  • Entry GPU server
  • Web Cache, CDN, Video Streaming
  • AI Inference

Key Features

  1. WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
  2. Single Intel® Xeon® 6 6700 series processor with E-cores
  3. 8 DIMM slots supporting up to 1TB of memory (6700E series CPU).
  4. Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
  5. Native SATA drives supported, with option for up to 8 PCIe 5.0 NVMe drives or 10 SAS drives.
  6. Trusted Platform Module (TPM) 2.0 onboard.

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-112B-WR
Motherboard
Super X14SBW-F
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700 series processors with E-cores
Core Count Up to 144C/144T; Up to 108MB Cache
Note Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 2 single-width GPUs
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots / 8 Channels
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
SATA SATA (6Gbps)
NVMe
Chipset System on Chip
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB 2 USB 3.2 Gen1 Type-A ports (rear), 2 USB 3.2 Gen1 Type-A ports (front)
Video 1 VGA port
Serial 1 COM port (Rear), 1 COM port (Header)
TPM 1 TPM header
System BIOS
BIOS Type AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory, 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment, Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-116BTS-R000WNP
Dimensions and Weight
Height 1.7″ (43 mm)
Width 17.2″ (437 mm)
Depth 23.5″ (597 mm)
Package 7.75″ (H) x 23.5″ (W) x 31.5″ (D)
Weight
  • Gross Weight: 33.5 lbs (15.2 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Color Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default: 2 PCIe 5.0 x16 FHFL slots, 1 PCIe 5.0 x8 (in x16) LP slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays; 8 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 10 bays; 8 front hot-swap 2.5″ SATA drive bays, 2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • Option B: Total 10 bays; 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays, 6 front hot-swap 2.5″ SATA drive bays
  • Option C: Total 10 bays; 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays, 2 front hot-swap 2.5″ SATA drive bays
  • Option D: Total 10 bays; 10 front hot-swap 2.5″ SAS* drive bays
  • View NVMe Options, View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud 1 CPU Air Shroud
Power Supply
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 54.5 x 40.25 x 322 mm
Input 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V Max: 66.67A / Min: 0A (100Vac-127Vac) Max: 71.67A / Min: 0A (200Vac-240Vac) Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
