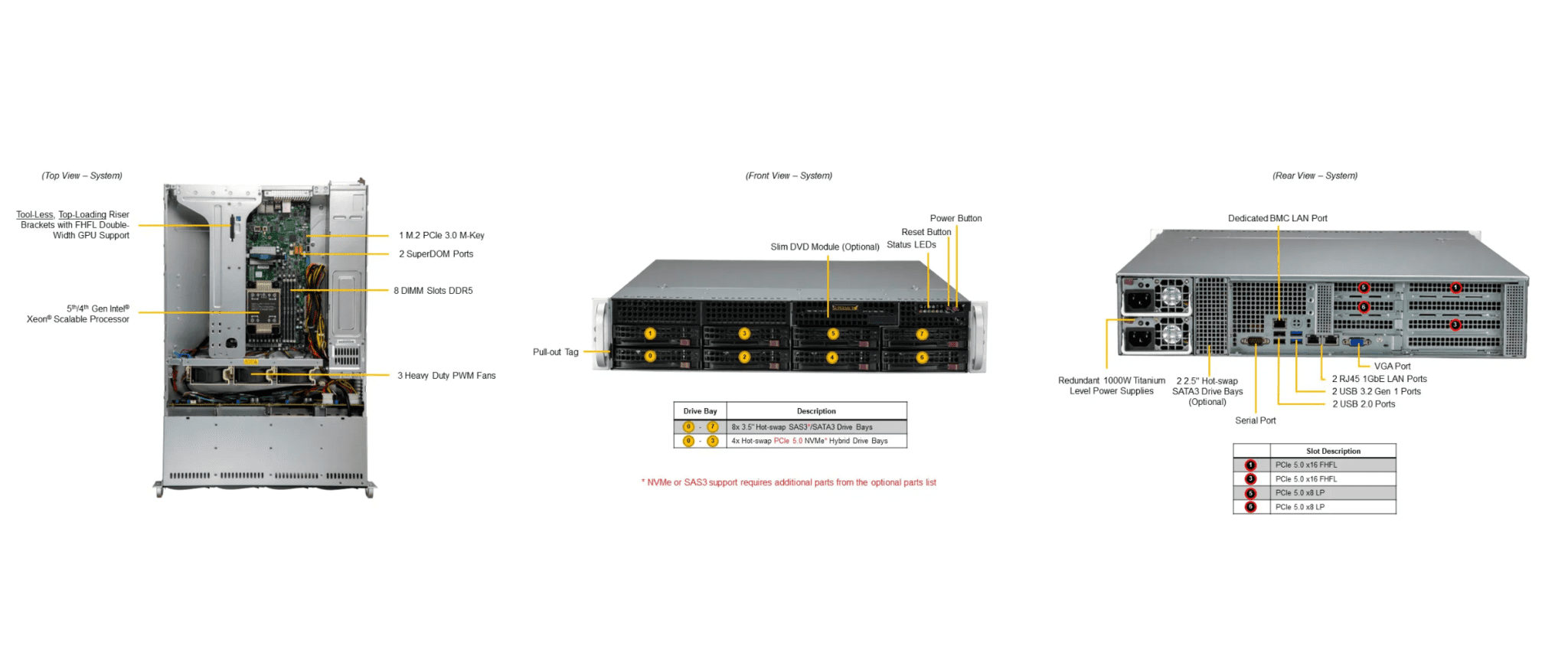

UP SuperServer SYS-521E-WR / 2U

Key Applications

  • Data Center Optimized
  • Network Appliance
  • Database/Storage
  • Entry GPU server

Key Features

  1. Single Socket E (LGA-4677) 4th/5th Gen Intel®  Xeon® Scalable processors. Up to 300W TDP
  2. Intel® C741 Chipset
  3. 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
  4. 2 PCIe 5.0 x16 FHFL;
    2 PCIe 5.0 x8 LP;
    1 PCIe 3.0 x2 NVMe M.2
  5. Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
  6. 8x front hot-swap 3.5″ SATA3 drive bays (Optional 4 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
  7. Redundant Now Titanium 1000W Power Supplies

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-521E-WR
Motherboard
Super X13SEW-F
Processor
CPU
Core Count Up to 52C/104T; Up to 300MB Cache
Note Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 1 double-width or 2 single-width GPU(s)
Supported GPU
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
CPU-GPU Interconnect PCIe
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage 1.1 V
On-Board Devices
SATA SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset Intel® C741
Network Connectivity
2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear)
  • 3 USB 2.0 port(s) (2 rear; 1 Type A)
Video 1 VGA port(s)
Serial Port 2 COM Port(s) (1 header; 1 rear)
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-825B2TS-R0WNP
Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 25.5″ (647mm)
Package 11″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Net Weight: 34 lbs (15.42 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x8 LP slot(s)
Note
  • Default loadout. (For more configs, please contact sales)
  • FH slots can be reconfigured with RSC-W2-688G5. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)
Drive Bays / Storage
Drive Bays 8x 3.5″ NVMe/SATA/SAS drive bays (4x 3.5″ NVMe hybrid)
M.2
Peripheral Bays 2x 2.5″ drive bays
System Cooling
Fans 3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
2x 1000W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
  • 1000W: 200-240Vdc / 50-60Hz
  • 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
  • Max: 83A / Min: 0A (200Vdc-240Vdc)
  • Max: 83A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity:
  • 8% to 80% (non-condensing)
Non-operating Relative Humidity:
  • 8% to 90% (non-condensing)
