UP Storage SuperServer SSG-540P-E1CTR45L / 4U | Taknet
  • Supermicro

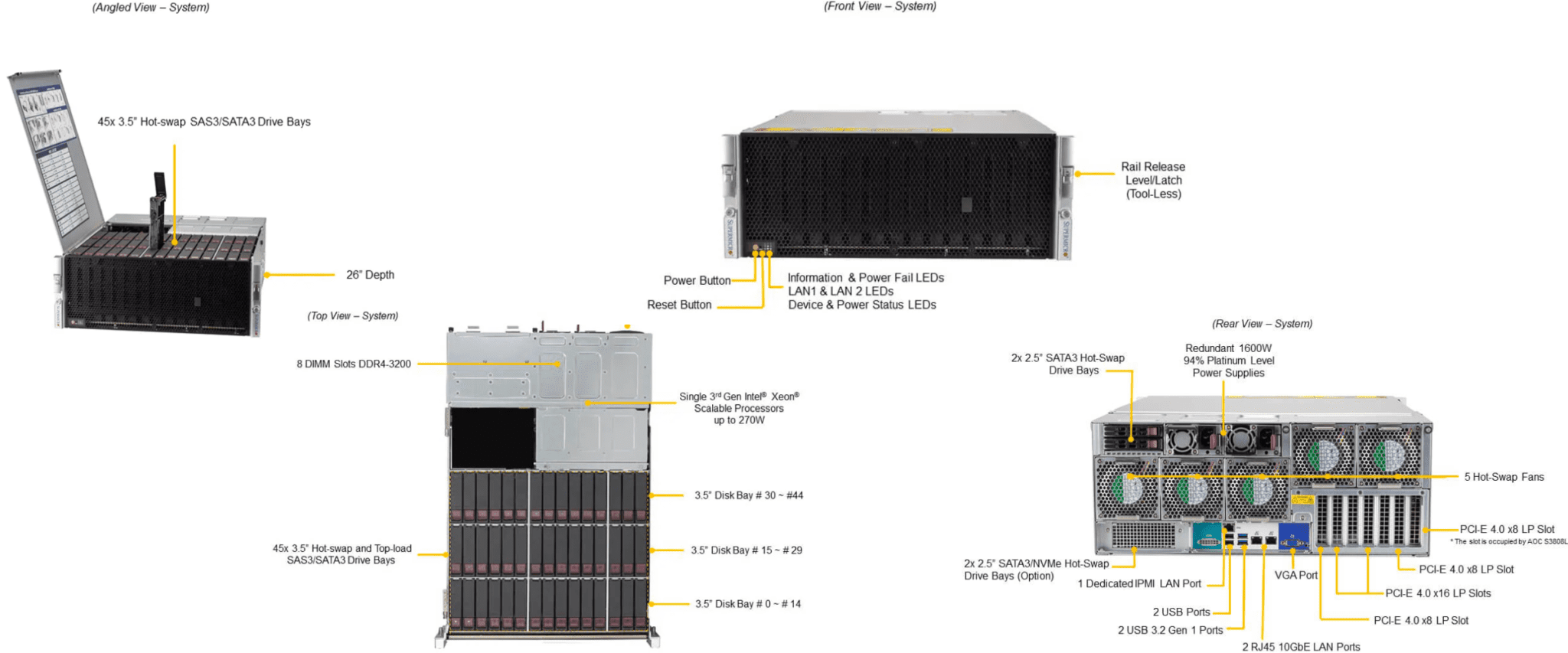

UP Storage SuperServer SSG-540P-E1CTR45L / 4U

Key Applications

  • Database Applications
  • Backup Storage, Cold Storage
  • Data Warehousing, Archiving

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
  6. Redundant Platinum 1600W Power Supply

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-540P-E1CTR45L
Motherboard
Super X12SPI-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 40C/80T; Up to 60MB Cache
Note Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices
SATA SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS SAS3 (12Gbps) via Broadcom 3808 (IT mode)
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
USB
4 USB 2.0 port(s) (2 headers; 2 rear)
5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 header)
DOM 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSE-946LTS-R1K66P1
Dimensions and Weight
Height 7″ (178mm)
Width 17.2″ (437mm)
Depth 26″ (660mm)
Package 22″ (H) x 28″ (W) x 42″ (D)
Weight
  • Net Weight: 85 lbs (38.56 kg)
  • Gross Weight: 120 lbs (54.43 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x8 LP slot(s)
  • 2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
45x 3.5″ hot-swap SATA/SAS drive bays
M.2
Peripheral Bays 2x 2.5″ SATA drive bays
System Cooling
Fans 5x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud(s)
Power Supply
1600W Redundant Platinum Level power supplies
Dimension (W x H x L) 73.5 x 40 x 265 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100Vac-120Vac)
  • Max: 132A / Min: 0.1A (200Vac-240Vac)
12V SB Max: 2A / Min: 0.2A
Output Type Backplanes (gold finger)
Certification Platinum Level Certified94%+
Platinum Level
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
