UP Storage SuperServer SSG-540P-E1CTR36H / 4U

Key Applications

  • Enterprise Server
  • Database Processing & Storage
  • Appliance Optimized Storage

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45

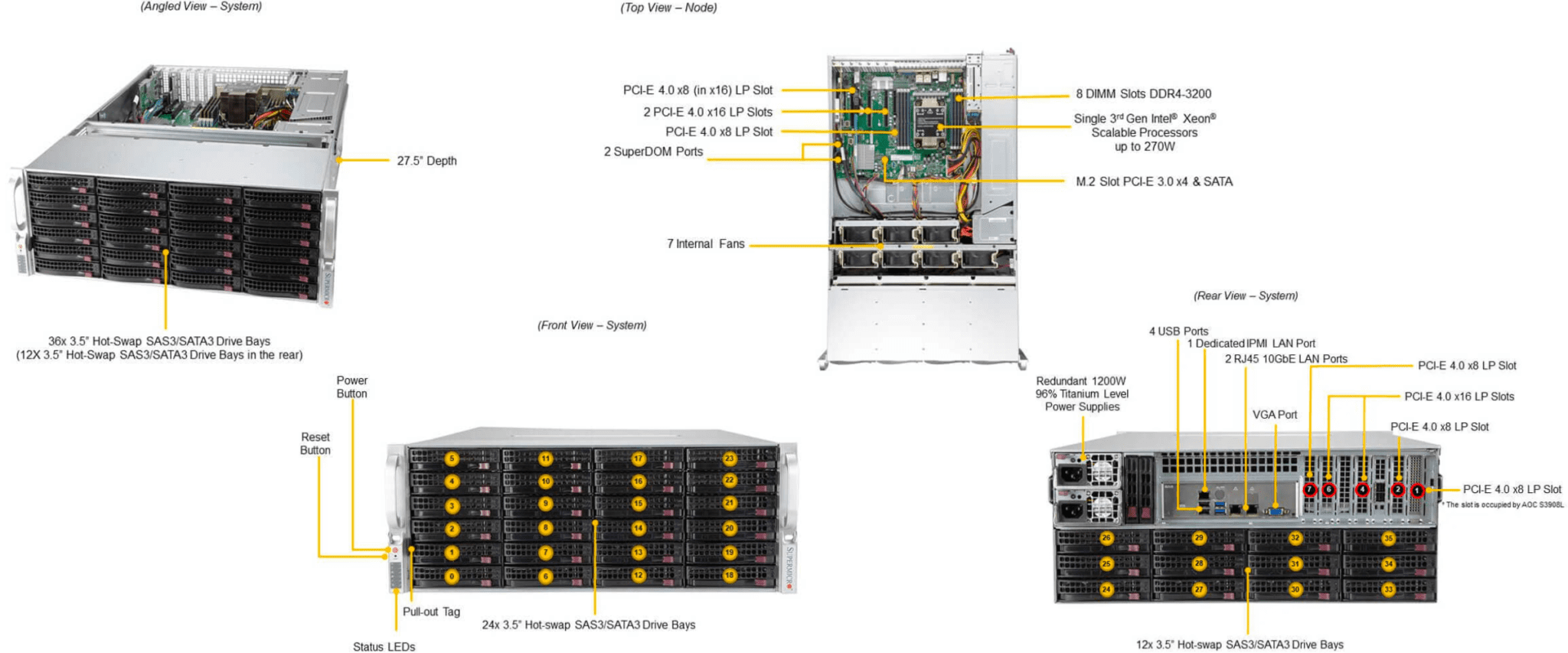

  5. 36x Hot-swap 3.5″ SAS3/SATA3 drive bays (24 front + 12 rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ NVMe/SATA (rear, optional); 2x Internal fixed bay support up to 4x 2.5″ drive bays (optional)
  6. Redundant Titanium 1200W Power Supply

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-540P-E1CTR36H
Motherboard
Super X12SPI-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 40C/80T; Up to 60MB Cache
Note Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices
SATA SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS SAS3 (12Gbps) via Broadcom 3908; RAID 0, 1, 5, 6, 10, 50, 60 support
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
USB
4 USB 2.0 port(s) (2 headers; 2 rear)
5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 header)
DOM 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSE-847BTS-R1K23LPBP4
Dimensions and Weight
Height 7″ (178mm)
Width 17.2″ (437mm)
Depth 27.5″ (699mm)
Package 17.5″ (H) x 27″ (W) x 39.5″ (D)
Weight
  • Net Weight: 66.5 lbs (29.7 kg)
  • Gross Weight: 102.5 lbs (46.4 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x8 LP slot(s)
  • 2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
36x 3.5″ hot-swap SATA/SAS drive bays
M.2
Peripheral Bays 2x 2.5″ SATA or NVMe drive bays (optional)
System Cooling
Fans 7x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
