Supermicro

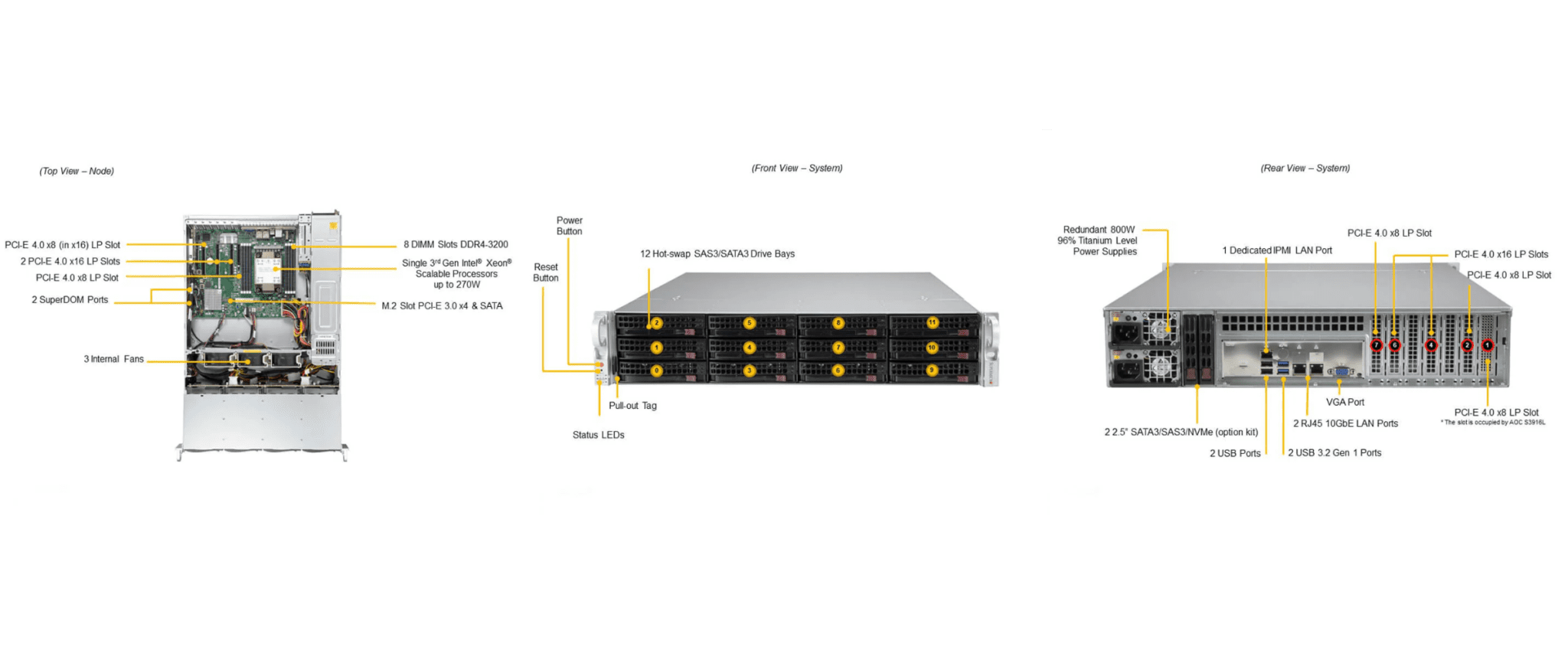

UP Storage SuperServer SSG-520P-ACTR12H / 2U

Key Applications

Enterprise Server
Database Processing & Storage
Appliance Optimized Storage

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
Intel® Ethernet Controller X550 2x 10GbE RJ45
12x Direct-attached hot-swap 3.5″ SAS3/SATA3 drive bays, Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ NVMe/SATA (rear, optional)
Redundant Titanium 800W Power Supply

Product Specifications

Product SKUs
SuperServer SSG-520P-ACTR12H
Motherboard
Super X12SPI-TF
Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
On-Board Devices
SATA	SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS	SAS3 (12Gbps) via Broadcom 3916; RAID 0, 1, 5, 6, 10, 50, 60 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN ports
USB	4 USB 2.0 port(s) (2 headers; 2 rear) 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator module (VRM) Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-826BTS-R802LPB
Dimensions and Weight
Height	3.5″ (89mm)
Width	17.2″ (437mm)
Depth	25.6″ (650mm)
Package	11.5″ (H) x 26.5″ (W) x 34″ (D)
Weight	Net Weight: 34 lbs (15.4 kg) Gross Weight: 58 lbs (26.3 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off System Reset
LEDs	Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information
Expansion Slots
PCI-Express (PCIe)	2 PCIe 4.0 x8 LP slot(s) 2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap	12x 3.5″ hot-swap SATA/SAS drive bays
M.2	1x PCIe 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-key View M.2 Options
Peripheral Bays	2x 2.5″ SATA or NVMe drive bays (optional)
System Cooling
Fans	3x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)
Power Supply
800W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz
+12V	Max: 66A / Min: 0A (100Vac-240Vac) Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
