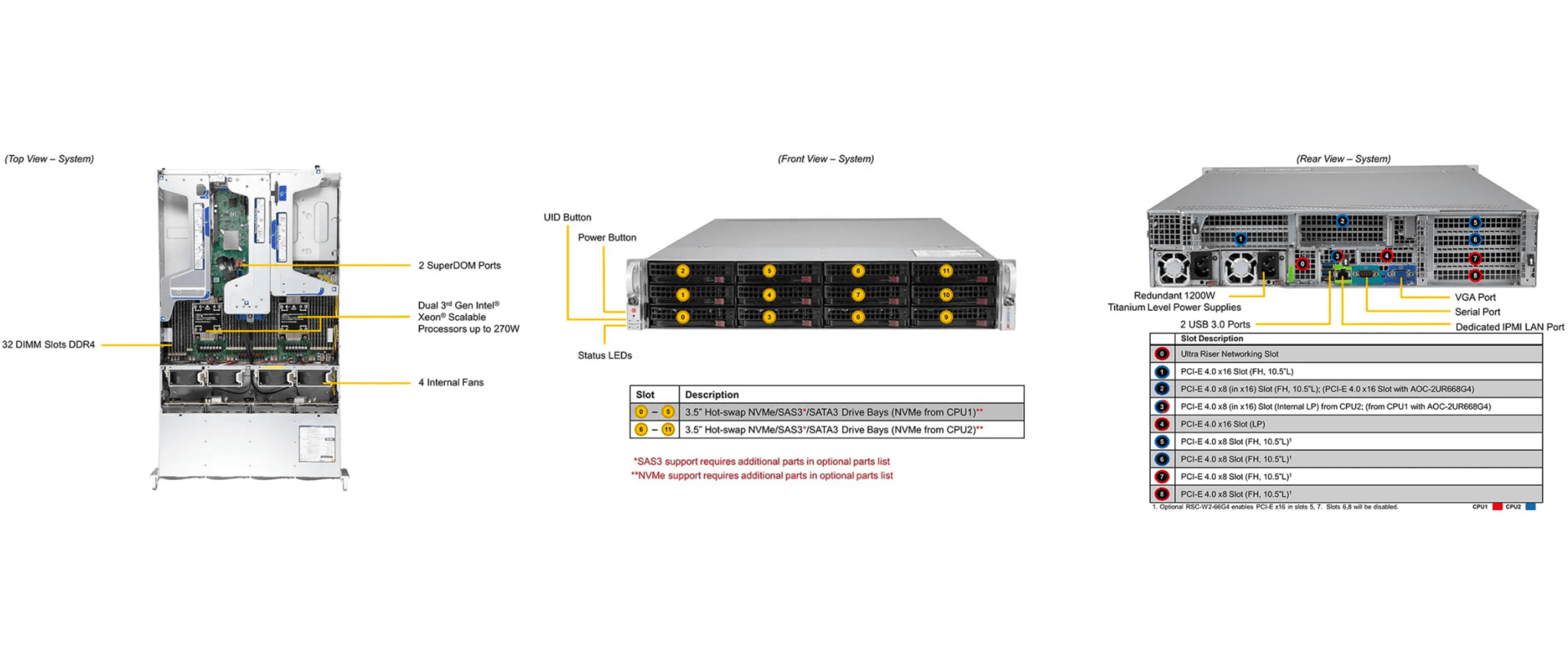

Ultra SuperServer SYS-620U-TNR / 2U

Key Applications

  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. Flexible networking options
  5. 12x 3.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
  6. 4 heavy duty fans with optimal fan speed control
  7. 1200W redundant Titanium level power supplies

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-620U-TNR
Motherboard
Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 40C/80T; Up to 60MB Cache per CPU
Note
Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 4 double-width or 6 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A4000, A30, A2, A10, T4, RTX A5000, A40, A16, A100
  • View GPU Options
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices
SATA SATA3 (6Gbps) via Intel® PCH 621A; RAID 0/1/5/10 support
NVMe NVMe (16GT/s); RAID 0/1/5/10 support
Chipset Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X710-AT2 (optional) OR
  • 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional)
  • No NIC option supported
  • View Network Card (AOC) Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN 1 RJ45 Dedicated BMC LAN port
USB 2 USB 3.0 port(s) (2 rear)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 rear)
DOM 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-829U3TS-R1K22P-T
Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 29.05″ (737.9mm)
Package 10.07″ (H) x 23.81″ (W) x 37.28″ (D)
Weight
  • Net Weight: 35.5 lbs (16.2 kg)
  • Gross Weight: 57.5 lbs (26.2 kg)
Available Color Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 FH, 10.5″L slot(s)
  • 5 PCIe 4.0 x8 FH, 10.5″L slot(s)
  • 1 PCIe 4.0 x8 Internal LP slot(s)
  • 1 PCIe 4.0 x16 LP slot(s)
Note Optional RSC-W2-66G4 enables PCIe x16 in slots 5, 7. Slots 6,8 will be disabled.
Drive Bays / Storage
Hot-swap 12x 3.5″ hot-swap NVMe/SATA/SAS drive bays (12x 2.5″ NVMe hybrid)(SAS/NVMe support requires additional parts. Please see the Optional Parts list.)
M.2 View M.2 Options
System Cooling
Fans 4x 8cm heavy-duty fans with optimal fan speed control
Air Shroud 2 Air Shroud(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 203 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
