Storage SuperServer SSG-631E-E1CR16H / 3U | Taknet
  • Supermicro

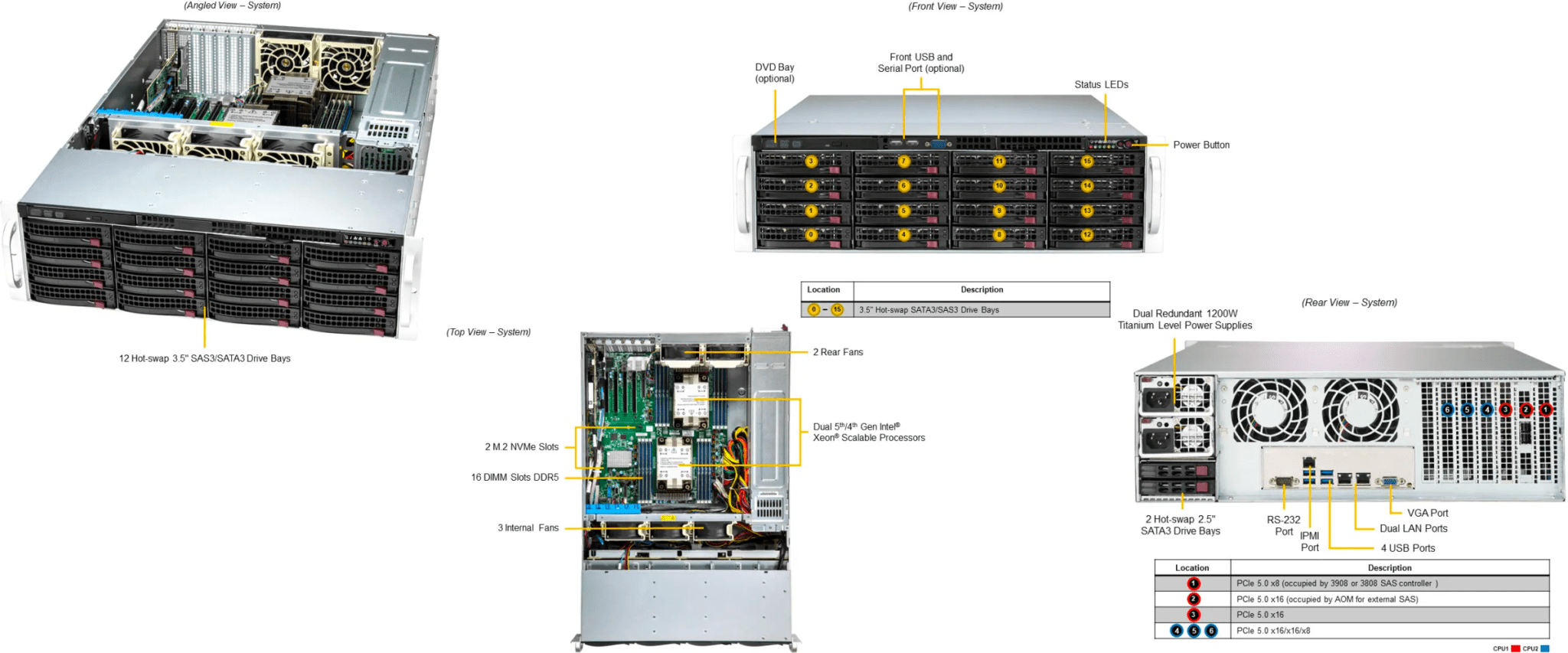

Storage SuperServer SSG-631E-E1CR16H / 3U

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
  3. 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    2x 10 GbE onboard via Broadcom BCM57416
  4. 16x 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear 2.5″ SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HW RAID support via Broadcom® 3908

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-631E-E1CR16H
Motherboard
Super X13DEI-T
Processor
CPU
Note Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage 1.1 V
On-Board Devices
Chipset Intel® C741
Network Connectivity 2x 10GbE BaseT with Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 Onboard 10 GbE LAN Ports
USB
4 USB 3.0 port(s) (4 Rear_USB)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 rear)
DOM 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 3U Rackmount
Model CSE-836BTS-R1K23BP2
Dimensions and Weight
Height 5.2″
Width 17.2″
Depth 25.5″
Package 13″ (H) x 27″ (W) x 35″ (D)
Weight
Gross Weight: 79 lbs (48 kg)
Available Color Silver
Front Panel
Buttons
Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 FH slot(s)
  • 4 PCIe 5.0 x16 FH slot(s)
Note
PCIe slot 1 & 2 are occupied by the Storage Controller/JBOD Expansion Module
Drive Bays / Storage
Hot-swap
16x 3.5″ hot-swap SATA3/SAS3 drive bays (2x 2.5″ hot-swap SATA3 rear drive bays)
M.2
System Cooling
Fans 5 Heavy Duty 8cm Fan(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
  • 5% to 95% (Non-Condensing)
