Supermicro

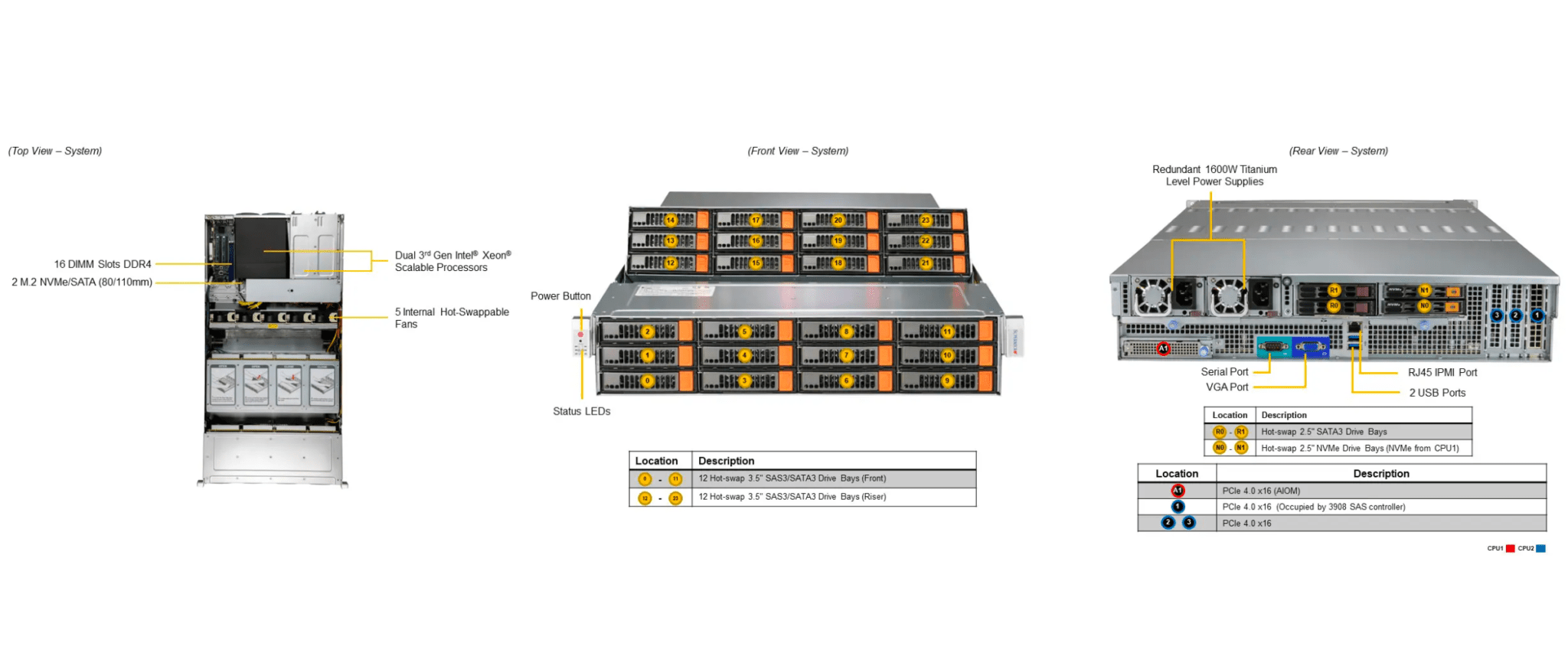

Storage SuperServer SSG-620P-E1CR24H / 2U

Key Applications

Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks

Key Features

Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
16 ECC DDR4-3200: LRDIMM/RDIMM
3 x PCIe 4.0 x16 Slots

Dedicated PCIe 4.0 AIOM slot
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
24 3.5″ Hot-swap SAS3/SATA3 drives, 4x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
5x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908

Product Specifications

Product SKUs
SuperServer SSG-620P-E1CR24H
Motherboard
Super X12DSC-A6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W – 205W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
On-Board Devices
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 Rear_USB)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-826STS-R1K62P1
Dimensions and Weight
Height	3.5″
Width	17.2″
Depth	34″
Package	12″ (H) x 29″ (W) x 52″ (D)
Weight	Net Weight: 52 lbs (23.59 kg) Gross Weight: 74.5 lbs (33.79 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LEDs	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)	1 PCIe 4.0 x8 LP slot(s) 2 PCIe 4.0 x16 LP slot(s) 1 PCIe 4.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap	24x 3.5″ hot-swap SATA3/SAS3 drive bays (2x 2.5″ hot-swap SATA3 rear drive bays)
M.2	2 M.2 NVMe OR 2 M.2 SATA3 M-Key, 2280 and 22110 View M.2 Options
System Cooling
Fans	5 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
