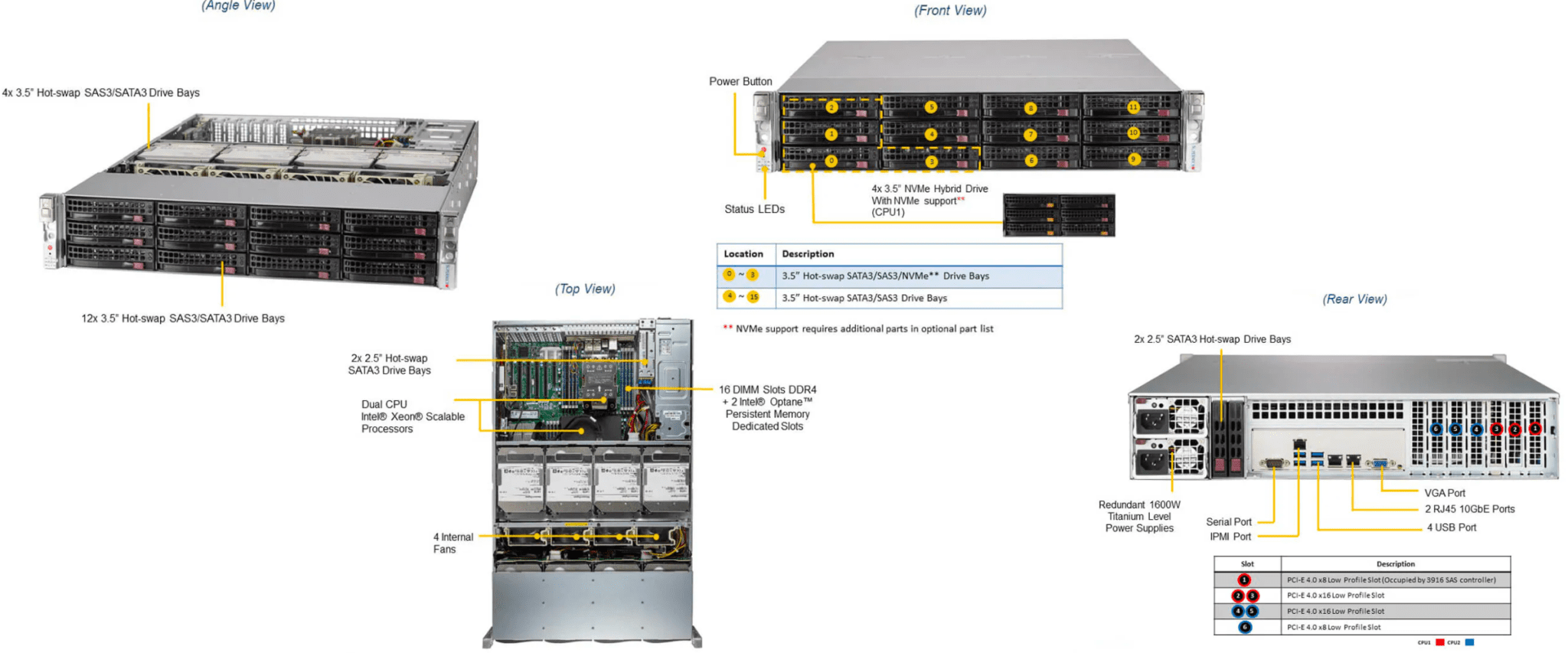

Storage SuperServer SSG-620P-ACR16H / 2U

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
  4. 16x 3.5″ hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA 2.5″ Slots; onboard 1 M.2 NVMe
  5. 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
  6. 1600W Redundant Power Supplies Titanium Level (96%)
  7. Broadcom® 3916 controller

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-620P-ACR16H
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 38C/76T; Up to 57MB Cache per CPU
Note Supports 120W – 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM
Memory Voltage 1.2 V
On-Board Devices
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
4 USB 3.0 port(s) (4 Rear_USB)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 rear)
DOM 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U
Model CSE-829HE1C4-R1K62LPB
Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 27.75″ (705mm)
Package 10.8″ (H) x 25.9″ (W) x 39.3″ (D)
Weight
  • Net Weight: 41.5 lbs (18.82 kg)
  • Gross Weight: 62 lbs (28.12 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • HDD Fail LED
  • Network Activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED
Expansion Slots
PCI-Express (PCIe)
  • 4 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x8 LP slot(s)
Note
PCIe slot 1 is occupied by the Storage Controller
Drive Bays / Storage
Hot-swap
16x 3.5″ hot-swap SATA3/SAS3 drive bays (4x 3.5″ NVMe hybrid)
M.2
System Cooling
Fans 4 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Certification Titanium Level Certified 94%+
Titanium Level
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
  • 5% to 95% (Non-Condensing)
