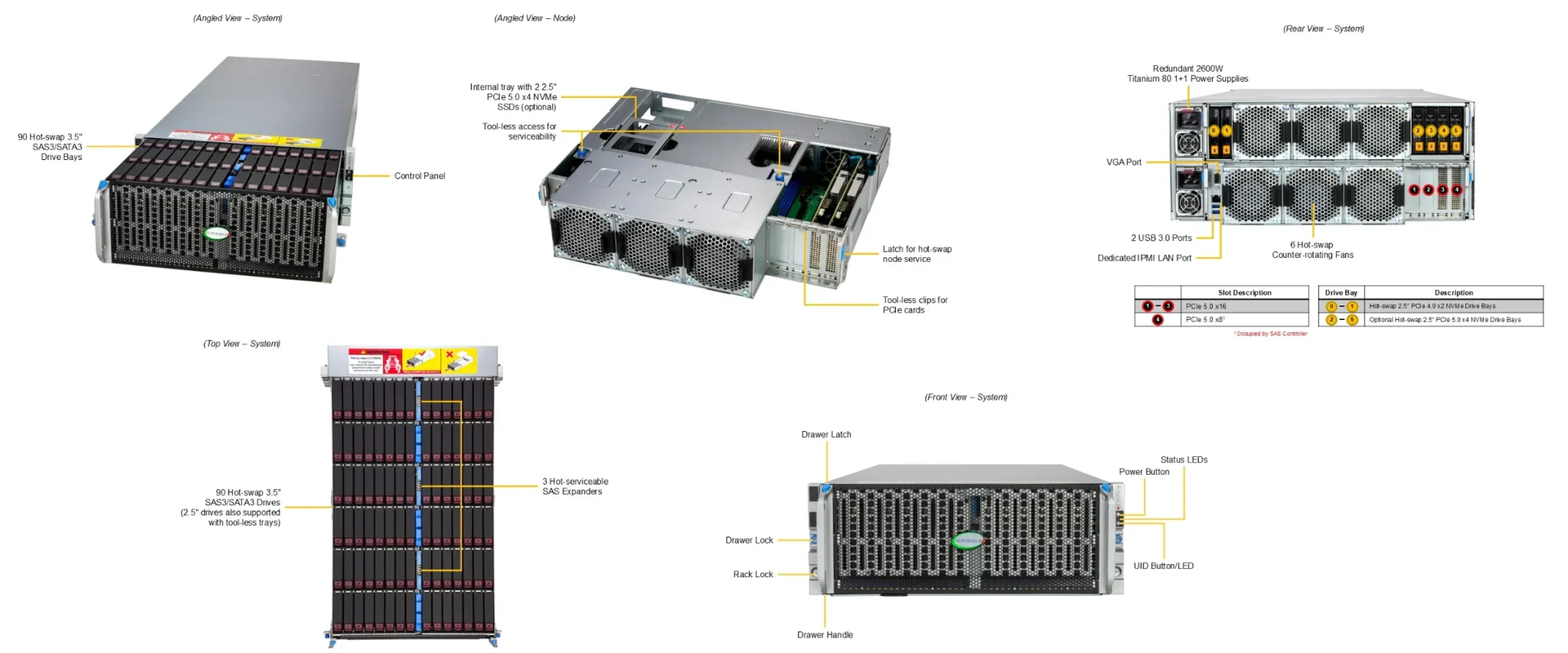

Storage SuperServer SSG-542B-E1CR90 / 4U

Key Applications

  • Big Data & Analytics, Data Lake
  • HPC and AI/ML Workloads
  • Telco & Cloud Service Providers
  • Financial Services & Healthcare Image Archives
  • Content Repositories
  • Government Data Protection

Key Features

  1. Single Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with E-cores up to 350W with air cooling
  2. Up to 16 DIMMs supporting up to 2TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC
  3. Up to 1 PCIe 5.0 x8 HHHL + 3 PCIe 5.0 x16 HHHL slots
  4. Up to 90 top-loading hot-swap 3.5″/2.5″ SAS/SATA + 4 rear hot-swap 2.5″ NVMe + 2 internal fixed 2.5″ NVMe drive bays
  5. 2 Redundant 2600W Titanium Level power supplies
  6. 4U Rackmount chassis

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SSG-542B-E1CR90
Motherboard
Super X14SBSC
Processor
CPU
Core Count Up to 144C/144T; Up to 108MB Cache
Note Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage 1.1V
On-Board Devices
NVMe NVMe; RAID 0/1 support
Chipset System on Chip
Network Connectivity
  • No NIC option supported
Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 ports(rear)
Video 1 VGA port
System BIOS
BIOS Type AMI 64MB SPI Flash
Management
Software
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSE-947HTS-R2K63P
Dimensions and Weight
Height 6.96″ (177 mm)
Width 17.6″ (447 mm)
Depth 43.3″ (1099 mm)
Package N/A
Weight
  • Gross Weight: 225 lbs (102.06 kg)
  • Net Weight: 130 lbs (58.97 kg)
Palletized Packing (W x H x L) 35.82″ (910 mm) x 29.92″ (755 mm) x 53.15″ (1345 mm)
Available Color N/A
Expansion Slots
PCI-Express (PCIe) Configuration Default:
  • 1 PCIe 5.0 x8 (in x8) HHHL slot
  • 3 PCIe 5.0 x16 (in x16) HHHL slots
View AOC Options
M.2 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration Default: Total 90 bays
  • 90 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bays
Option A: Total 4 bays
  • 4 rear hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
Option B: Total 2 bays
  • 2 internal fixed 2.5″ PCIe 5.0 x4 NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
System Cooling
Fans
  • 6 Heavy Duty 8cm Fan(s)
  • 1 Counter Rotating 6cm Fan(s)
Power Supply
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac
  • 2600W: 200-240Vdc (For CQC Only)
  • 2600W: 200-240Vac / 50-60Hz
  • 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
  • Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
