Supermicro

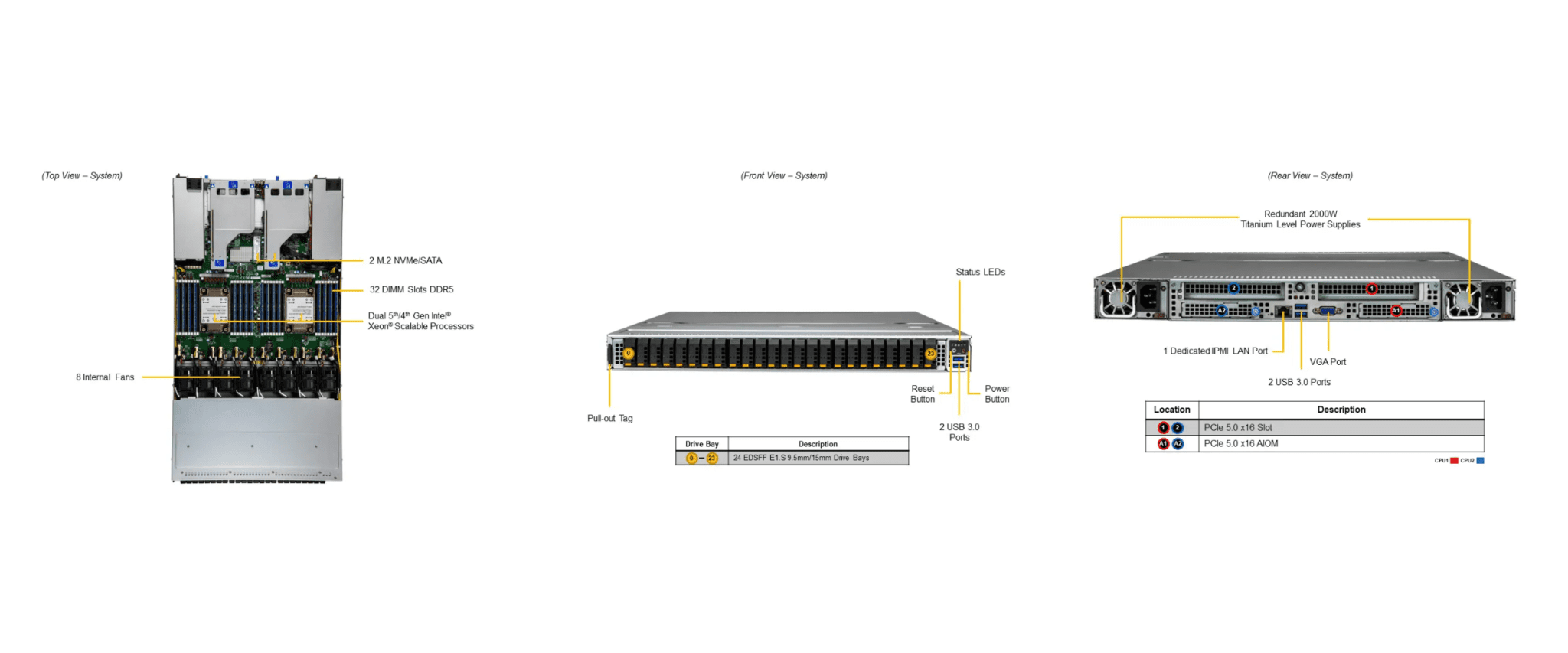

Storage SuperServer SSG-121E-NES24R / 1U

Key Applications

Software-defined Storage
In-Memory Computing
Data Intensive HPC
Private & Hybrid Cloud
NVMe Over Fabrics Solution

Key Features

Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
Redundant Titanium 2000W Power Supplies

Product Specifications

Product SKUs
SuperServer SSG-121E-NES24R
Motherboard
Super X13DSF-A
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports 145W – 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 2 double-width GPU(s)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage	1.1 V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 port(s) (2 front; 2 rear)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-126ES2-R2K08P
Dimensions and Weight
Height	1.7″ (43.6mm)
Width	17.2″ (438.4mm)
Depth	30.4″ (773.25mm)
Package	7.87″ (H) x 23.81″ (W) x 40.55″ (D)
Weight	Net Weight: 48 lbs (21.8 kg) Gross Weight: 68.74 lbs (31.2 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LEDs	Network activity Power status SSD activity System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)	2 PCIe 5.0 x16 FH slot(s) 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap	24x E1.S Hot-swap NVMe (9.5mm or 15mm) drive slots
M.2	2x PCIe 3.0 (Hybrid NVMe or SATA3) M-Key, 2280 and 22110 View M.2 Options
System Cooling
Fans	8 Heavy Duty 4cm Fan(s)
Power Supply
2000W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
