Storage ARS-121L-NE316R / 1U

Key Applications

  • Software-defined Storage
  • In-Memory Computing
  • Data Intensive HPC
  • Private & Hybrid Cloud
  • NVMe Over Fabrics Solution

Key Features

  1. Single NVIDIA Grace™ CPU Superchip, up to 144 Arm v9 cores, TDP 600W
  2. Up to 960GB LPDDR onboard memory
  3. 2 PCIe 5.0 x16 FHHL slots & 1 AIOM connector (OCP 3.0 SFF Compliant)
  4. 16 Front Hot-Swap E3.S (7.5mm) NVMe drive bays
  5. Reduntant Titanium 1600W Power Supplies

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer ARS-121L-NE316R
Motherboard
Super G1SMP
Processor
CPU
  • Single processor(s)
  • NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note Supports up to 600W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC LPDDR5X
On-Board Devices
Chipset System on Chip
Network Connectivity View AOC Options
Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 1 USB 3.0 Type-A port(Rear)
Video 1 mini-DP port
System BIOS
BIOS Type AMI 64MB SPI Flash EEPROM
Management
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-SG101E3-R000NDP
Dimensions and Weight
Height 1.7″ (43.6 mm)
Width 17.2″ (438.4 mm)
Depth 30.4″ (772.15 mm)
Package 8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight Gross Weight: 66.8 lbs (30.3 kg) Net Weight: 43.6 lbs (19.8 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration Default*:
  • 2 PCIe 5.0 x16 (in x16) FHHL slots
Option A:
  • 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)

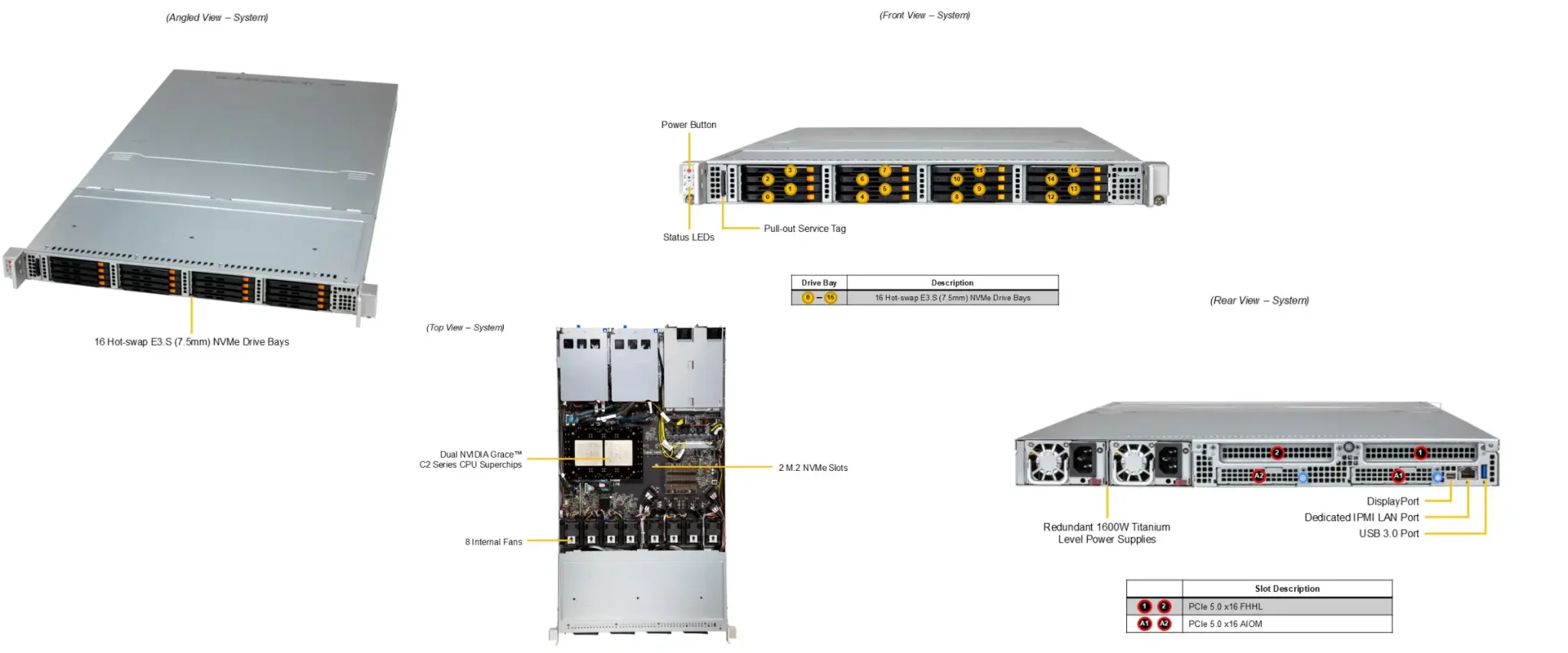

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) View AOC Options
Drive Bays / Storage
Drive Bays Configuration Default: Total 16 bays
  • 16 front hot-swap E3.S 1T NVMe drive bays
M.2 2 M.2 NVMe slots (M-key)
System Cooling
Fans 8 Removable heavy-duty 4cm Fan(s)
Power Supply
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Certification
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
