Supermicro

MP SuperServer SYS-681E-TR / 6U

Key Applications

In-Memory Database
Virtualization, ERP, CRM
Research Lab/National Lab
Scale -up HPC

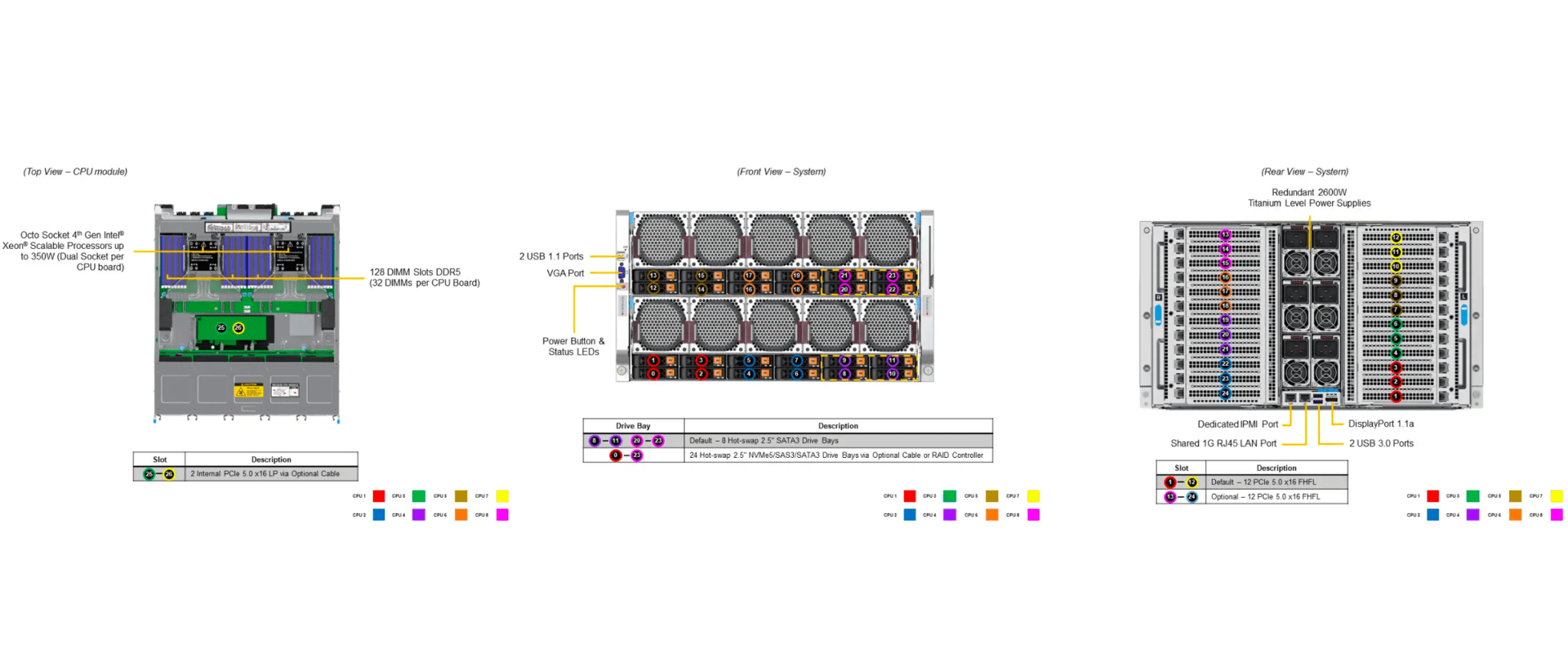

Key Features

Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
128 DIMM Slots;

Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards
24x 2.5″ Hot-swap NVMe/SAS3/SATA3 drive bays ;

2x internal M.2 NVMe/SATA;

Optional RAID support via storage add-on card
10 heavy duty fans w/ optimal fan speed control

Product Specifications

Product SKUs
SuperServer SYS-681E-TR
Motherboard
Super X13OEI-CPU
Processor
CPU	8 Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
Note	Supports 250W – 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 12 double-width GPU(s)
System Memory
Memory	Slot Count: 128 DIMM slots Max Memory (2DPC): Up to 32TB 4800MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset	Intel® C741
Network Connectivity	1x 1GbE BaseT
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 1x 1GbE RJ45
USB	2 USB 1.1 port(s) (2 front) 2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s) 1 DisplayPort (s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	6U Rackmount
Model	CSE-618TS-R5K26P
Dimensions and Weight
Height	10.4″ (265mm)
Width	17.68″ (449mm)
Depth	33.1″ (841mm)
Package	36.3″ (H) x 28.34″ (W) x 42.5″ (D)
Weight	Net Weight: 176.37 lbs (80 kg) Gross Weight: 242.5 lbs (110 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off UID
LEDs	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)	12 PCIe 5.0 x16 FHFL slot(s) 12 PCIe 5.0 x16 FHFL optional slot(s) 2 PCIe 5.0 x16 LP internal optional slot(s)
Drive Bays / Storage
Hot-swap	24x 2.5″ hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5″ NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2	2 M.2 NVMe OR 2 M.2 SATA3 View M.2 Options
System Cooling
Fans	10 Heavy duty counter-rotating 8cm Fan(s)
Power Supply
2600W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 265 mm
AC Input	2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
