MP SuperServer SYS-241E-TNRTTP / 2U | Taknet
  • Supermicro

MP SuperServer SYS-241E-TNRTTP / 2U

Key Applications

  • Artificial Intelligence (AI)
  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

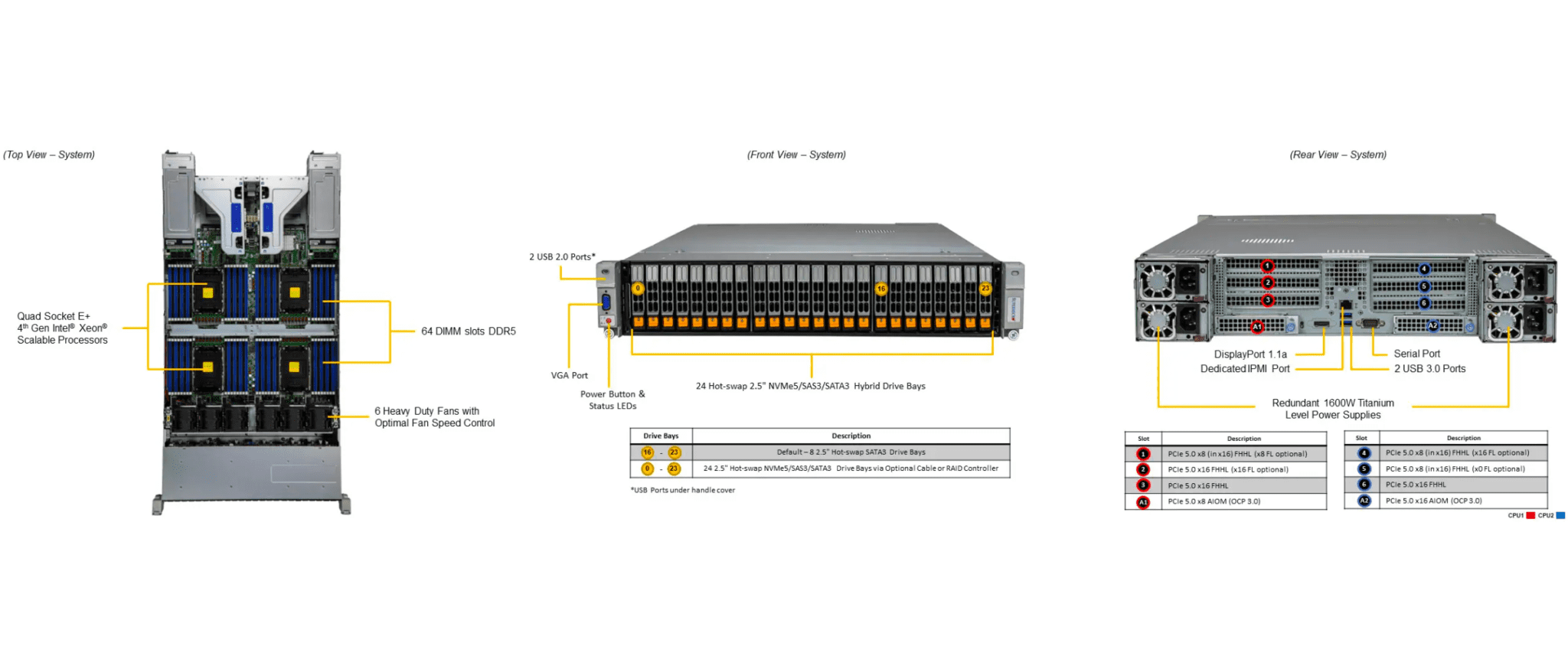

Key Features

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 64 DIMM Slots;
    Up to 8TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
  3. Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accerlator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 24x 2.5″ Hot-swap NVMe/SAS3/SATA3 Hybrid Drive bays (Default with 24 SAS3/SATA3 drive bays);
    2x internal M.2 NVMe/SATA;
    Optional RAID support via storage add-on card
  6. 6 heavy duty fans w/ optimal fan speed control
    Liquid cooling solution is available – please contact your Supermicro sales rep for more info.

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-241E-TNRTTP
Motherboard
Super X13QEH+
Processor
CPU
Note
  • Supports 165W – 250W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count Up to 2 double-width GPU(s)
Supported GPU
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect PCIe
System Memory
Memory
  • Slot Count: 64 DIMM slots
  • Max Memory (2DPC): Up to 8TB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage 1.1 V
On-Board Devices
Chipset Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
  • 1 DisplayPort (s)
Serial Port 1 COM Port(s) (1 rear)
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-218HTS-R3K2AWP
Dimensions and Weight
Height 3.5″ (87.9mm)
Width 17.3″ (438.4mm)
Depth 33.4″ (849.3mm)
Package 9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight
  • Net Weight: 45.5 lbs (20.64 kg)
  • Gross Weight: 71.5 lbs (32.43 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • UID
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 5.0 x8 FHFL slot(s)
  • 1 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 1 PCIe 5.0 x16 AIOM slot(s)
  • 1 PCIe 5.0 x8 AIOM slot(s)
Drive Bays / Storage
Hot-swap 24x 2.5″ hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5″ NVMe hybrid)(Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
System Cooling
Fans 6 Heavy duty counter-rotating 6cm Fan(s)
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Certification
Titanium Level
[ Test Report ]
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
  • 5% to 95% (Non-Condensing)
