Supermicro

Mainstream SuperServer SYS-621P-TR / 2U

Key Applications

Virtualization
Enterprise Server
Application and data serving
Compute Intensive Applications

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
1200W Redundant Titanium level Power Supplies

Product Specifications

Product SKUs

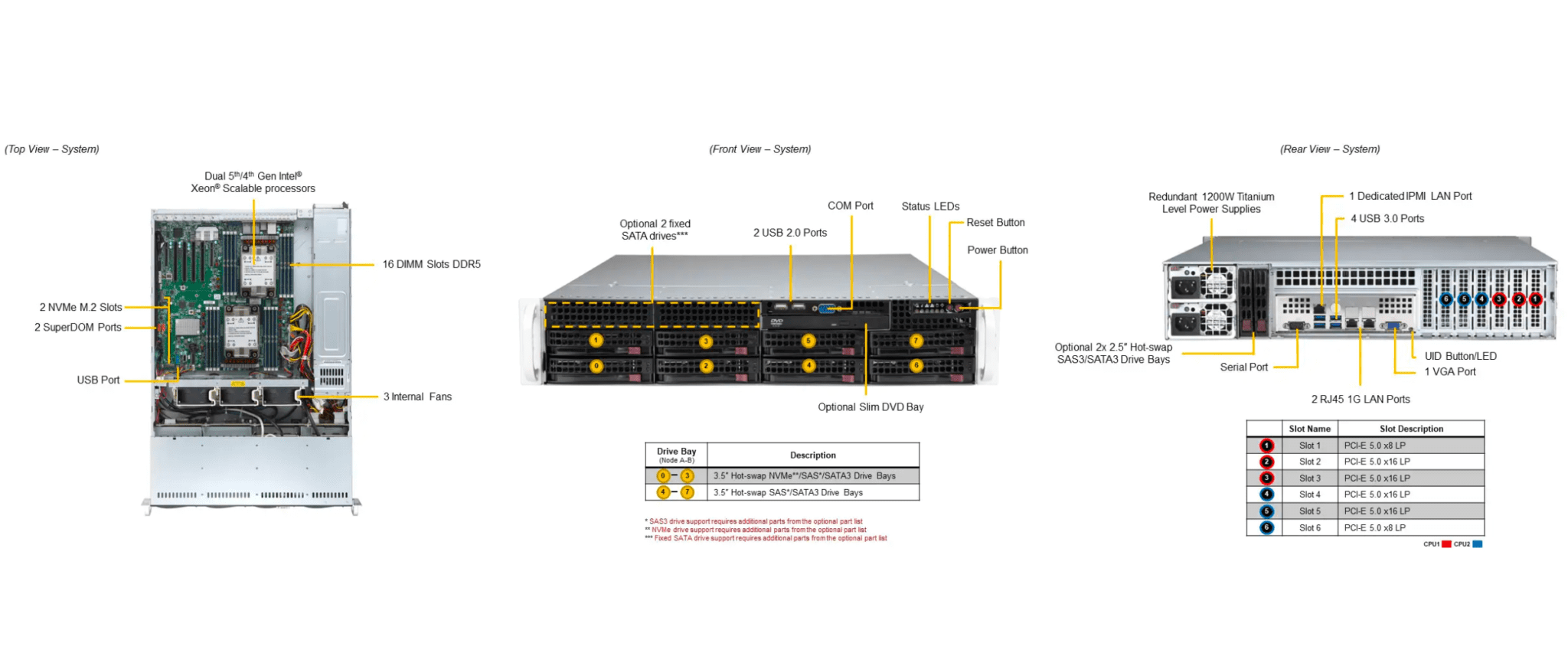

SuperServer SYS-621P-TR
Motherboard
Super X13DEI
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
On-Board Devices
SATA	SATA3 (6Gbps)
Chipset	Intel® C741
Network Connectivity	2x 1GbE port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated BMC LAN port
USB	2 USB 2.0 port(s) (2 front) 4 USB 3.0 port(s) (4 rear)
Video	1 VGA port(s)
Serial Port	2 COM Port(s) (1 front; 1 rear)
DOM	2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height	3.5″ (89mm)
Width	17.2″ (437mm)
Depth	25.5″ (647mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Net Weight: 36.38 lbs (16.5 kg) Gross Weight: 69 lbs (31.2 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off System Reset
LEDs	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)	2 PCIe 5.0 x8 LP slot(s) 4 PCIe 5.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap	8x 3.5″ hot-swap SATA3 drive bays (Configurable option for 8 hot-swap SAS or 4x hot-swap NVMe drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list)
M.2	2 M.2 NVMe View M.2 Options
Peripheral Bays	1x slim DVD drive bays (optional)
System Cooling
Fans	3 middle 8cm Fan(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

Speak with an expert to learn more.
