Mainstream SuperServer SYS-220P-C9R / 2U | Taknet
  • Supermicro

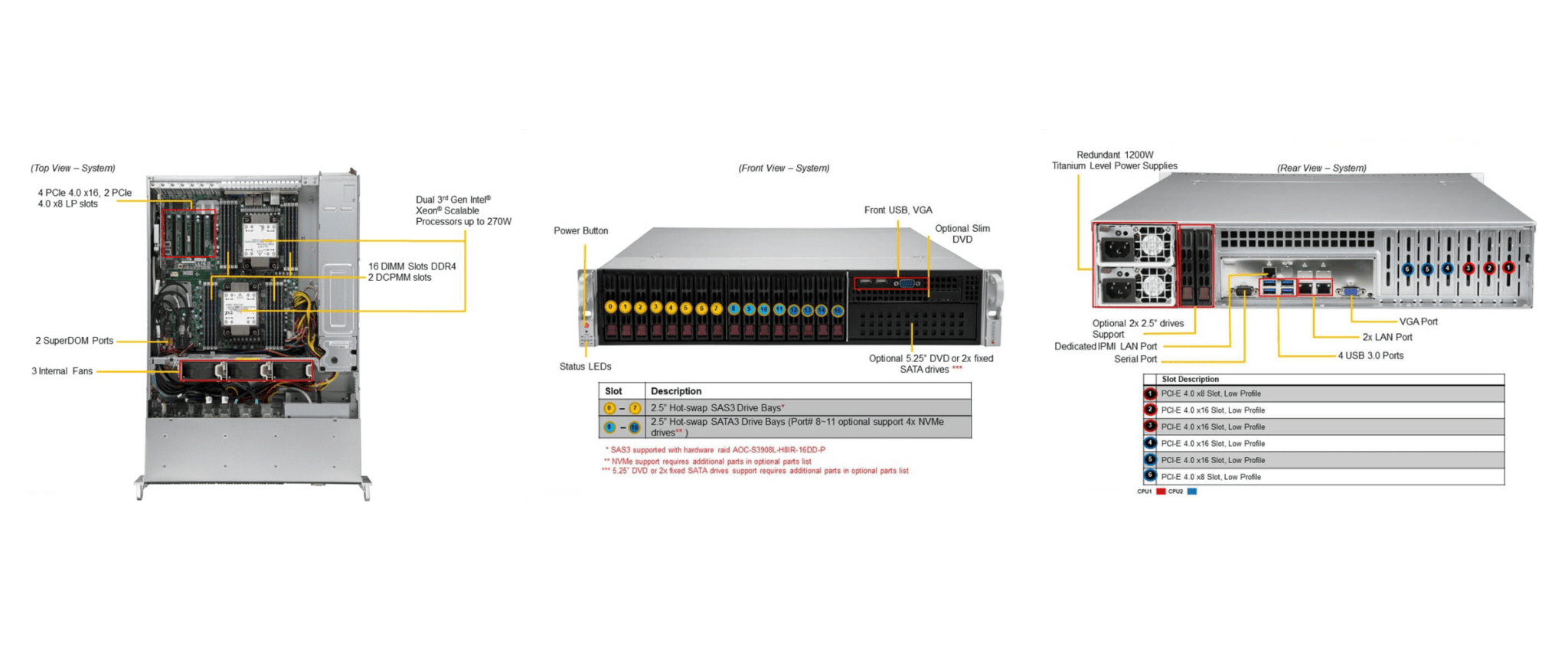

Mainstream SuperServer SYS-220P-C9R / 2U

Key Applications

  • High Performance Computing
  • Enterprise Server
  • Data Center Optimized
  • Database Processing and High Density Storage
  • Application-Optimized Solutions

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
    CPU TDP supports Up to 270W TDP
    3 UPI up to 11.2 GT/s
  2. Intel® C621A Chipset
    SATA: Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  4. 4 PCIe 4.0 x16 Low Profile (LP)
    1 PCIe 4.0 x8 Low Profile (LP)
    * PCIe slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support  8x SAS drives
  5. Dual Gigabit LAN with Intel® i350  Ethernet Controller
  6. 16 hotswap 2.5″ drive bays
    8 SAS drives wih Broadcom® 3908 Gen4 HW RAID controller for RAID  0, 1, 5, 6, 10, 50, 60
    8 SATA drives with Intel® C621A controller for RAID 0,1,5,10
    1 M.2 support:
    • M.2 Interface: PCIe 3.0 x4
    • M.2 Form Factor: 2260, 2280, 22110
    • M.2 Key: M-Key
    Optional 1 slim or 5.25″ DVD-ROM drive
    Optional 4x hotswap 2.5″ NVMe or 2 fixed 2.5″ NVMe/SSD/HDD/SuperDOM
  7. 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control
    1 air shroud
  8. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
  9. 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-220P-C9R
Motherboard
Super X12DPi-N6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 36C/72T; Up to 60MB Cache per CPU
Note Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
On-Board Devices
Chipset Intel® C621A
Network Connectivity
2x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 4 USB 3.0 port(s) (4 rear)
Video 1 VGA port(s)
Serial Port 2 COM Port(s) (1 front; 1 rear)
DOM 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-213BTS-R1K23LPBP3-1
Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 24.8″ (630mm)
Package 11″ (H) x 29″ (W) x 38.7″ (D)
Weight
  • Net Weight: 38 lbs (17.4 kg)
  • Gross Weight: 63 lbs (28.8 kg)
Available Color Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 4 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x8 LP slot(s)
Drive Bays / Storage
Hot-swap 16x 2.5″ hot-swap drive bays (8x SAS drive bays with Broadcom® 3908 HW RAID controller(backplane port# 0~7) and 8x SATA drive bays (backplane port# 8~15) with Intel® C621A (4x SATA drive bays (backplane port# 8~11) can be converted to NVMe drives with optional 2x CBL-SAST-0821-1)
M.2
Peripheral Bays 1x (slim or 5.25″) DVD drive bays (optional)
System Cooling
Fans 3 heavy duty fans with optimal fan speed control
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
  • 5% to 95% (Non-Condensing)
