Mainstream A+ Server AS-2024S-TR / 2U | Taknet
  • Supermicro

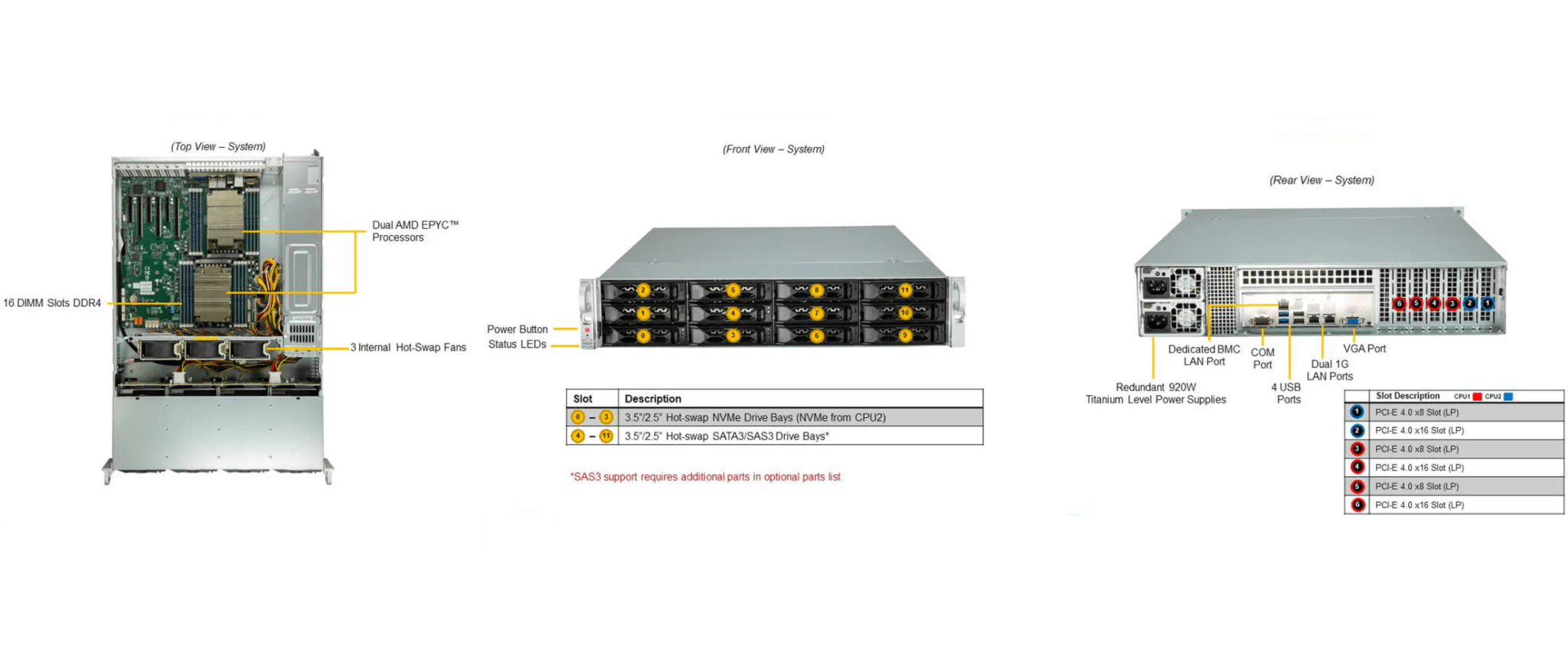

Mainstream A+ Server AS-2024S-TR / 2U

Key Applications

  • Virtualization
  • Enterprise Server
  • Data Center Optimized
  • Application and data serving
  • Model analysis
  • Compute Intensive Applications

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    Supports Up to 240W CPU TDP
  2. AMD® SP3
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
  4. 3 PCIe 4.0 x16 Low Profile (LP)
    3 PCIe 4.0 x8 Low Profile (LP)
  5. Dual Gigabit LAN
  6. 12 hot-swap 3.5″ (Tool-less) or 2.5″ (screw) drive bays
    (Default configuration is 8 SATA + 4 NVMe)
    (Up to 12x NVMe drives supported with optional NVMe kit)
    1 M.2 support:
    – M.2 Interface: PCIe 3.0 x4
    – M.2 Form Factor: 2260, 2280, 22110
    – M.2 Key: M-Key
  7. 3 heavy duty Hot-swappable 9.4K RPM Cooling Fans
    1 air shroud
  8. 920W Redundant Power Supplies Platinum level
  9. 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS -2024S-TR
Motherboard
Super H12DSi-N6
Processor
CPU
Core Count Up to 64C/128T; Up to 256MB Cache per CPU
Note Supports up to 240W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage 1.2 V
On-Board Devices
Chipset AMD SP3
Network Connectivity
2x 1GbE BaseT port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 2 USB 3.0 port(s) (2 rear)
Video 1 VGA port(s)
Serial Port 1 COM Port(s) (1 COM)
DOM 2 SuperDOM (Disk on Module) port
Management
Software
Power Configurations
ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-LA26TS-R920LPP1
Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 25.5″ (648mm)
Package 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Net Weight: 33.5 lbs (15.2 kg)
  • Gross Weight: 60 lbs (27.2 kg)
Available Color Silver
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LEDs
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x8 LP slot(s)
  • 3 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap 12x 3.5″ hot-swap SATA/NVME drive bays (3.5″ drive installation is tool-less, 2.5″ drives will require screws. Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts)
M.2
Backplanes
HDD Backplane Supports 12 SATA3 or 12 SAS3 or 4 NVMe
Note Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts
System Cooling
Air Shroud 1 Clear Plastic Air Shroud(s)
Fans 3 Middle 80mm Fan(s)
Power Supply
920W Redundant Platinum Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 920W: 100-127Vac / 50-60Hz
  • 920W: 200-240Vdc / 50-60Hz
  • 920W: 200-240Vac / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
