Hyper SuperServer SYS-222H-TN / 2U

Key Applications

  • Virtualization
  • Software-defined Storage
  • High Performance Computing
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Intel® Xeon® 6 6700 series processors with E-cores
  2. 32 DIMM slots supporting up to 4TB of memory
  3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. 8x 2.5″ hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-222H-TN
Motherboard
Super X14DBM-SP
Processor
CPU
Core Count Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 330W TDP CPUs (Air Cooled)
  • Supports up to 330W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count Up to 4 double-width or 8 single-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
NVMe
Chipset System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 ports (rear), 2 USB 3.0 ports(Header)
Video 1 VGA port
System BIOS
BIOS Type AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-HS219-R000NP
Dimensions and Weight
Height 3.5″ (88 mm)
Width 17.3″ (438.4 mm)
Depth 29.73″ (755.2 mm)
Package 10.12″ (H) x 23.82″ (W) x 37.28″ (D)
Weight
  • Gross Weight: 66 lbs (30 kg)
  • Net Weight: 40 lbs (18.2 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*
    • 4 PCIe 5.0 x16 FH/10.5″L double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • Option B*
    • 8 PCIe 5.0 x8 (in x16) FH/10.5″L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)

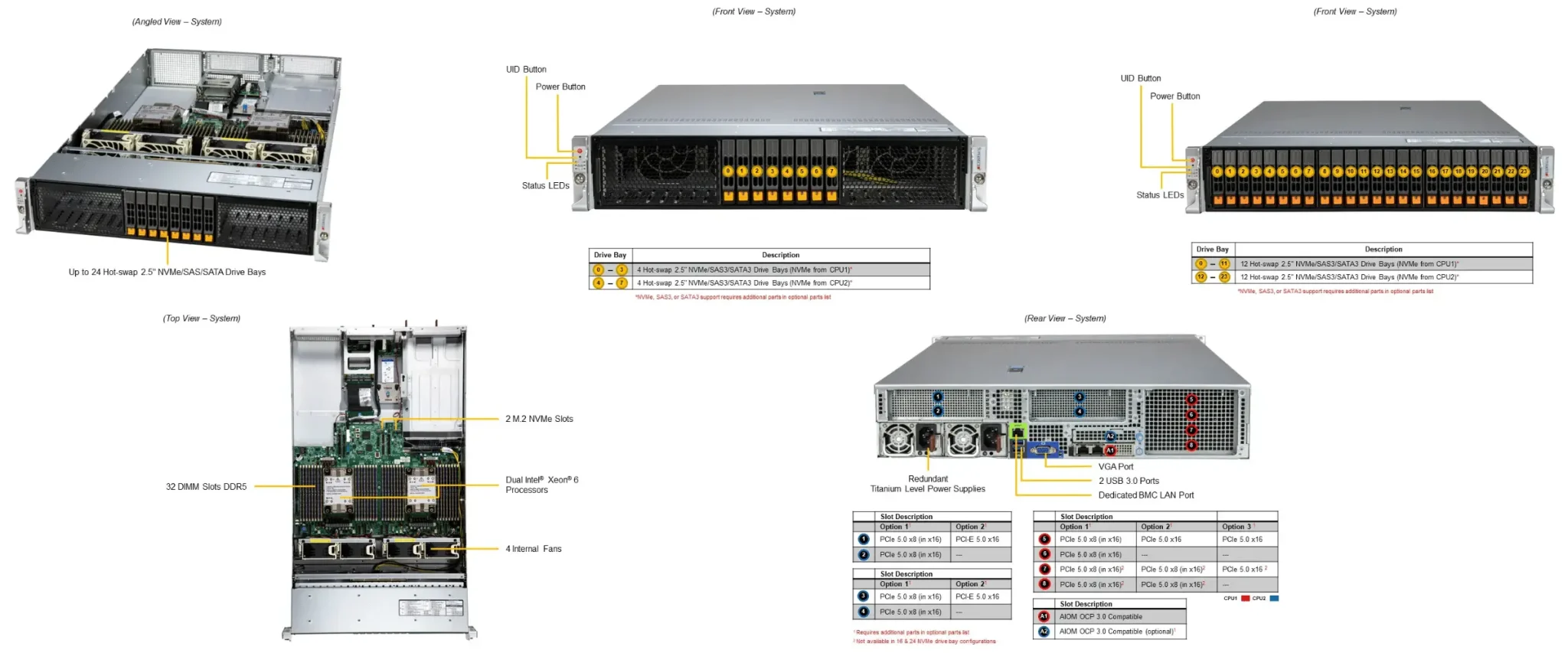

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
CXL Support Up to 4 CXL 2.0 x16/x8 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option A: Total 16 bays
    • 16 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option B: Total 24 bays
    • 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud 2 Air Shrouds
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-120Vac / 50-60Hz 100-127Vac 1800W: 200-220Vac / 50-60Hz 200-240Vac 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz
+12V Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A Max: 3.5A
Output Type Backplanes (gold finger)
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
