Hyper SuperServer SYS-212HA-TN / 2U | Taknet
  • Supermicro

Hyper SuperServer SYS-212HA-TN / 2U

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server
  • Data Center Optimized
  • Database Processing and High Density Storage

Key Features

  1. Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
  2. Single Intel® Xeon® 6 6900 series Processor.
  3. 12 DIMM slots supporting up to 3TB of 8800 MRDIMM
  4. Double width add-on card support.
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
  7. Trusted Platform Module (TPM) 2.0 onboard.
  8. Modularized and Tool-less design for easy serviceability.

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-212HA-TN
Motherboard
Super X14SBH-AP
Processor
CPU
  • Single Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count Up to 128C/256T; Up to 504MB Cache
Note Supports up to 500W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 ports (rear)
Video 1 VGA port
System BIOS
BIOS Type AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment, Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-HS201-R000NFP
Dimensions and Weight
Height 3.5″ (88.9 mm)
Width 17.2″ (437 mm)
Depth 31.74″ (806.2 mm)
Package 9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg)
Available Color Silver

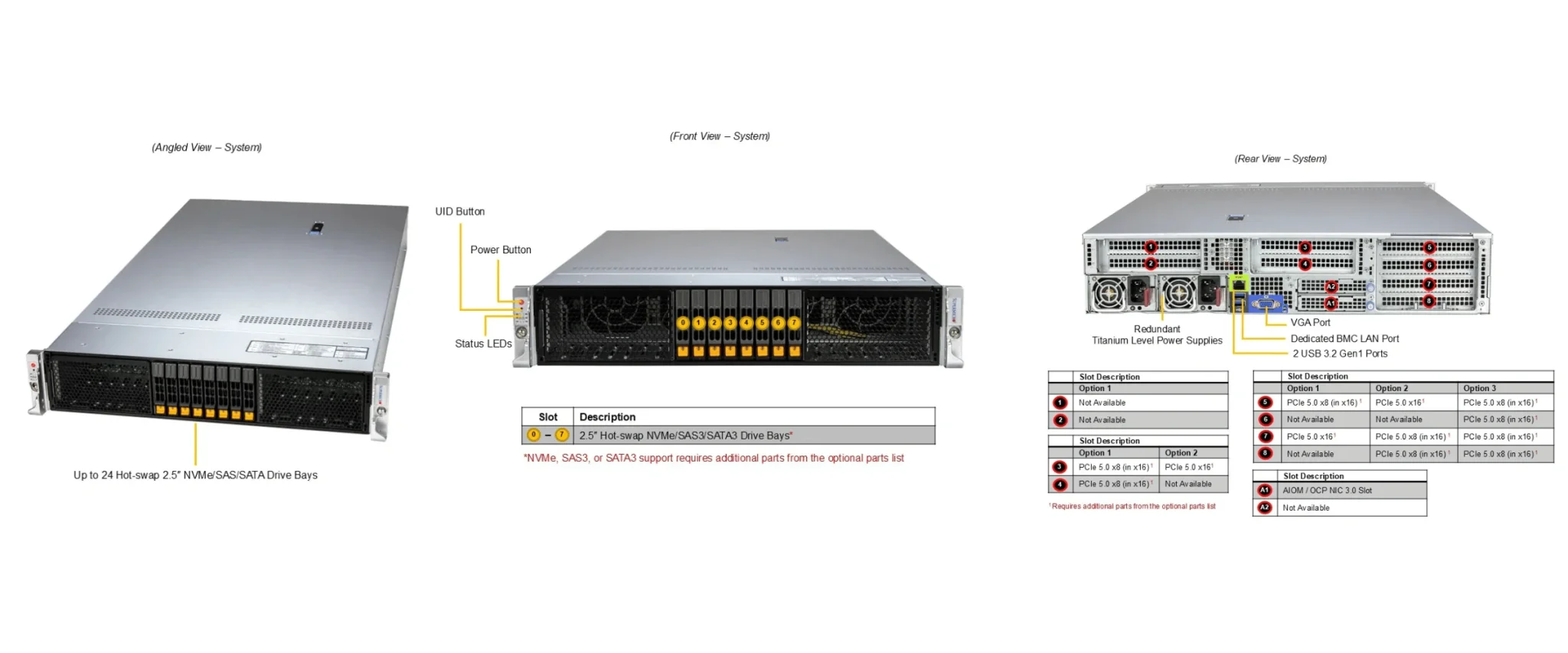

Front Panel
LED HDD activity, LAN1 activity, Power status, System information
Buttons Power On/Off, UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A: 1 PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 5.0 x16 FH/10.5″L double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B: 1 PCIe 5.0 x16 FHFL double-width slot, 2 PCIe 5.0 x8 FH/10.5″L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
System Cooling
Air Shroud 1 CPU Air Shroud
Fans 6 counter-rotating 60x60x56mm Fan(s)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1300W: -44–65Vdc
+12V Max: 108.3A / Min: 0A
12V SB Max: 2.1A
Output Type Backplanes (gold finger)
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A Max: 3.5A
Output Type Backplanes (gold finger)
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
