Hyper A+ Server AS-2126HS-TN / 2U

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server
  • High Performance Computing (HPC)

Key Features

  1. Dual AMD EPYC™ 9005/9004 Series Processors
  2. Support up to DDR5 24 DIMM slots (1DPC)
  3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
    • Up to 24 front hot-swap 2.5″ NVMe/SATA drive bays
    • 2 M.2 PCIe 3.0 NVMe slots
  6. Capabilities for GPU and CXL 2.0 support

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS-2126HS-TN
Motherboard
Super H14DSH
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Core Count Up to 384C/768T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count Up to 3 double-width GPUs
GPU-GPU Interconnect PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
On-Board Devices
Chipset System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 ports (rear)
Video 1 VGA port
TPM 1 TPM Onboard/port 80
System BIOS
BIOS Type AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V
  • CPU thermal trip support
Chassis
Form Factor 2U Rackmount
Model CSE-HS201-R000NFP
Dimensions and Weight
Height 3.5″ (88.9 mm)
Width 17.2″ (437 mm)
Depth 31.74″ (806.2 mm)
Package 9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*
    • 4 PCIe 5.0 x16 FHFL double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B*
    • 8 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

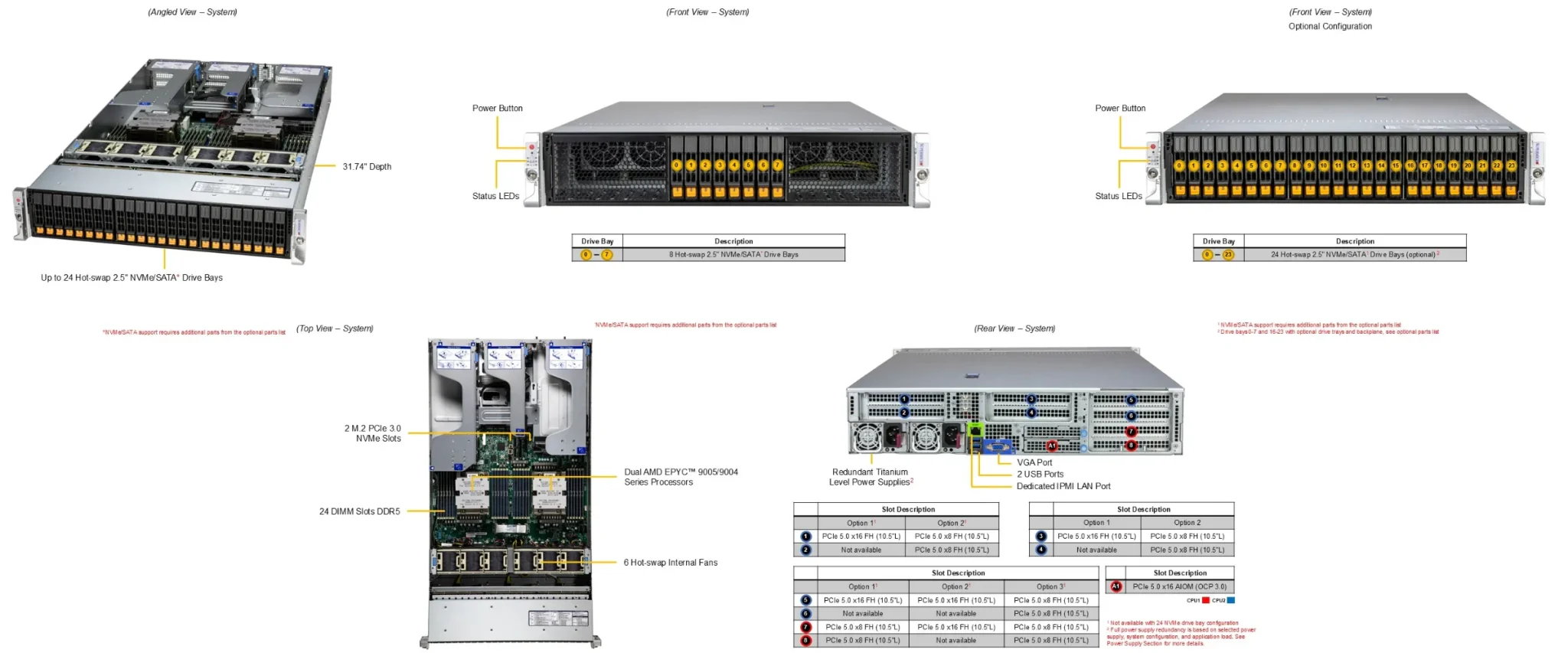

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
CXL Support Up to 4 CXL 2.0 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5″ NVMe*/SATA* drive bays
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5″ NVMe*/SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans 6 counter-rotating 60x60x56mm Fan(s)
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-120Vac / 50-60Hz 100-127Vac1800W: 200-220Vac / 50-60Hz 200-240Vac2000W: 200-240Vac / 50-60Hz (for UL/cUL only)1980W: 220-230Vac / 50-60Hz2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz
+12V Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A Max: 3.5A
Output Type Backplanes (gold finger)
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle Return Server-End of Life Product
