Hyper A+ Server AS-1115HS-TNR / 1U | Taknet
  • Supermicro

Hyper A+ Server AS-1115HS-TNR / 1U

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

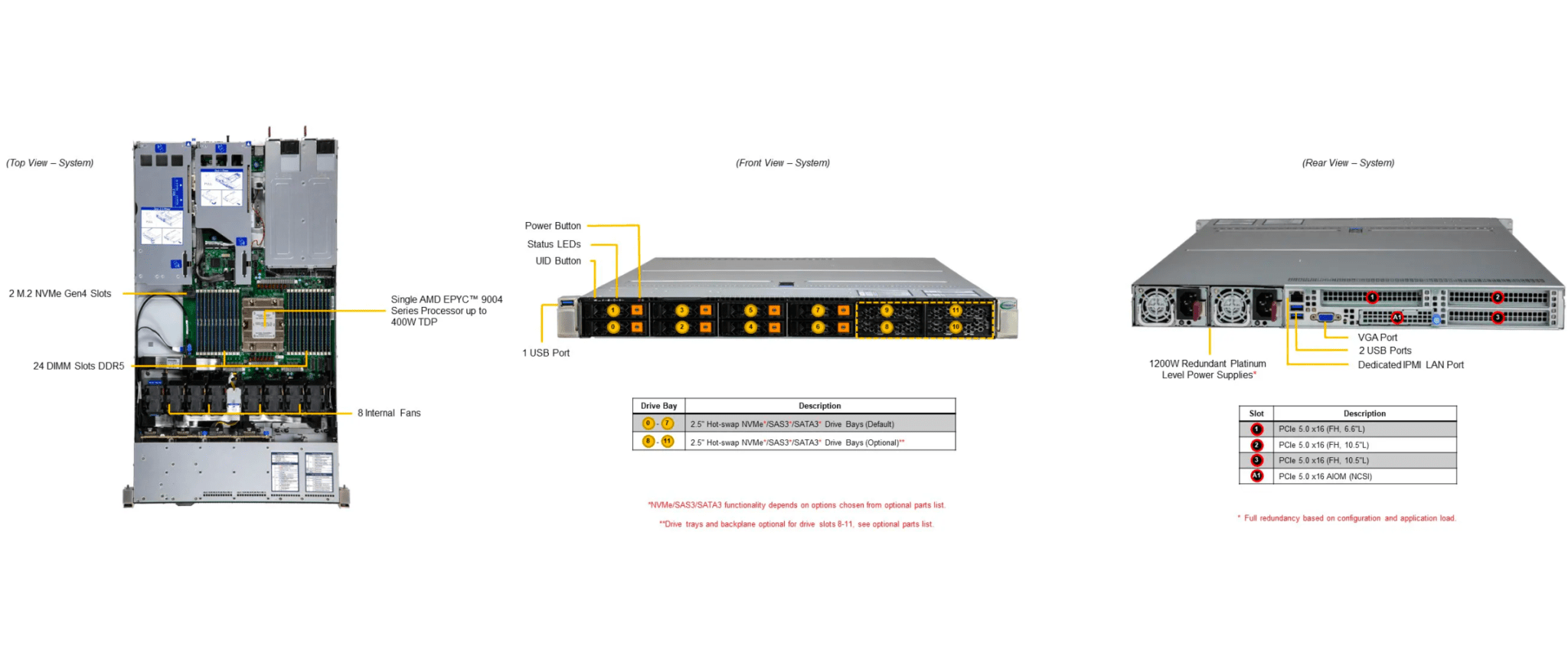

Key Features

  1. 4th Generation AMD EPYC™ 9004 Series Processor
  2. ASPEED AST2600
  3. 24 DIMM slots with 2 DIMM per channel (up to 6TB DDR5-4000MHz(1R)/3600MHz(2R)) OR
    12 DIMM slots with 1 DIMM per channel (up to 3TB DDR5-4800MHz)
  4. 1 PCIe 5.0 x16, FH, 6.6″L
    2 PCIe 5.0 x16 FH, 10.5″L
    Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8 Hot-swap 2.5” NVMe/SAS/SATA (Option for up to 12 drives)
    (Optional parts required for NVMe/SAS/SATA configurations)
  6. 800/1200W Redundant Power Supplies  (Titanium Level)
    (*Full redundancy based on configuration and application load)
  7. 2 On-board NVMe M.2 slots; 1x PCIe 3.0 x4, 1x PCIe 3.0 x2; 80mm/110mm (Boot)

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS -1115HS-TNR
Motherboard
Super H13SSH
Processor
CPU
Core Count Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count Up to 1 double-width GPU(s)
Supported GPU
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
Memory Voltage 1.1 V
On-Board Devices
Chipset System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 Dedicated IPMI LAN port
USB
3 USB 3.0 port(s) (1 front; 2 rear)
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 256MB SPI Flash
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power Configurations
  • Power-on mode control for AC power loss recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Voltage
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U
Model CSE-HS119-R1K24P2-A
Dimensions and Weight
Height 1.7″ (43mm)
Width 17.2″ (437mm)
Depth 29.4″ (747mm)
Package 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Net Weight: 32 lbs (14.5 kg)
  • Gross Weight: 51 lbs (23.1 kg)
Available Color Black front & silver body
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 5.0 x16 FH, 6.6″L slot(s)
  • 2 PCIe 5.0 x16 FH, 10.5″L slot(s)
  • 1 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
8x 2.5″ hot-swap NVMe/SATA/SAS drive bays (Up to 12x 2.5″ hot-swap NVMe/SATA/SAS support with additional parts)
M.2
  • 2x NVMe (1x PCIe 3.0×4, 1x PCIe 3.0×2, Boot drive only)
  • M-Key, 22110 (Default)/2280
  • View M.2 Options
System Cooling
Fans 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
  • Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
Note Operating Temperature based on configurations
