Supermicro

GPU SuperServer SYS-A21GE-NBRT / 10U

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics

Key Features

Dual 5th/4th Gen Intel® Xeon® Scalable processors
Support for NVIDIA HGX™ B200 8-GPU
Up to 32 DIMMs supporting up to 8TB DDR5-4400 in 2DPC or 4TB DDR5-5600 in 1DPC
2 RJ45 10GbE + 2 SFP28 25GbE + 2 RJ45 10GbE
Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
Up to 12 front hot-swap 2.5″ NVMe + 3 front hot-swap 2.5″ SATA drive bays
6 Redundant 3000W Titanium Level power supplies

Product Specifications

Product SKUs

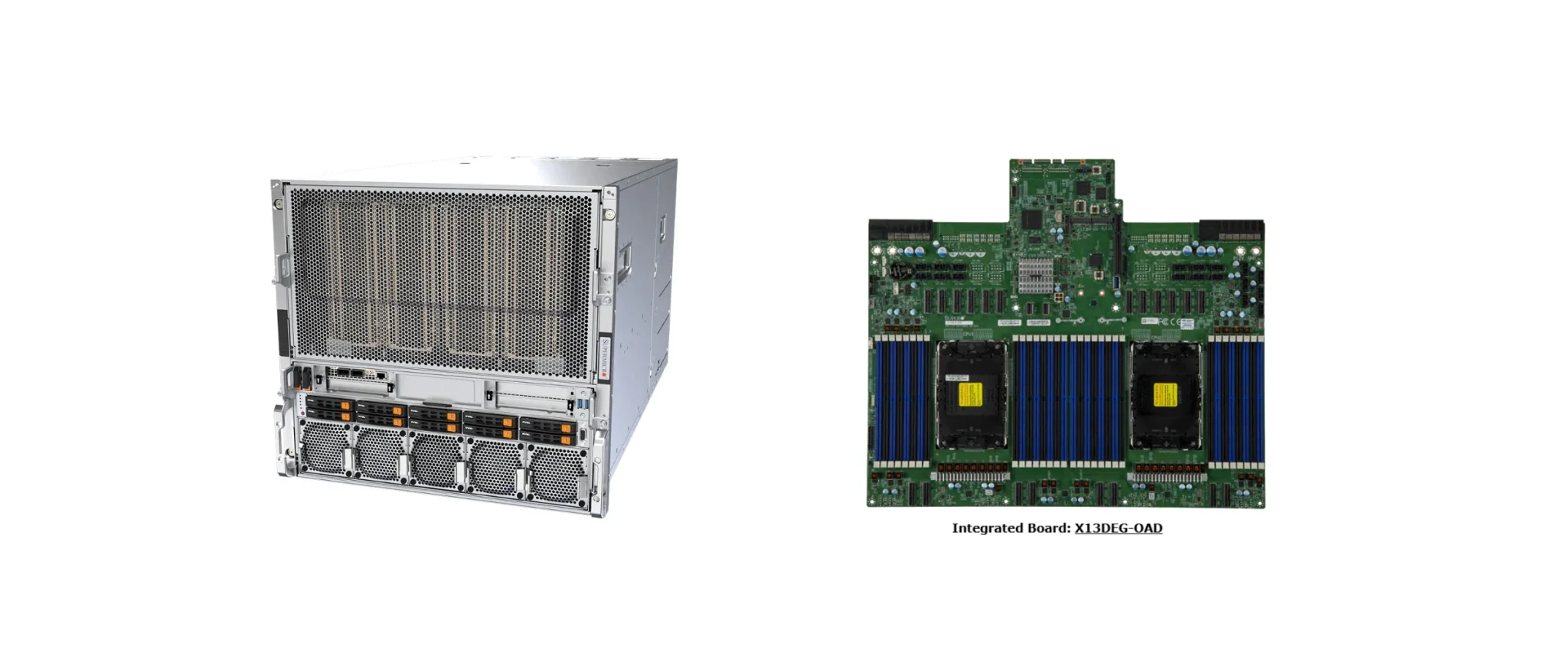

SuperServer SYS-A21GE-NBRT
Motherboard
Super X13DEG-OAD
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional)
Input / Output
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	10U Rackmount
Model	CSE-GP1001TS-R000NPF
Dimensions and Weight
Height	17.2″ (438.8 mm)
Width	17.6″ (449 mm)
Depth	33.2″ (843.28 mm)
Package	25.2″ (H) x 49.4″ (W) x 27.3″ (D)
Weight	Gross Weight: 183 lbs (83.1 kg) Net Weight: 122.7 lbs (55.64 kg)
Available Color	Silver
Front Panel
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Buttons	Power On/Off UID/ Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
M.2	2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default); USB 3.0; VROC required for RAID)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 12 bays 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 2 front hot-swap 2.5″ PCIe 4.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables)
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	10 heavy duty fans with optimal fan speed control
Power Supply
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (W x H x L)	106.5 x 82.1 x 245.5 mm
Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
