GPU SuperServer SYS-740GP-TNRBT

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training

Key Features

  1. 16 DIMM Slots;
    Up to 4TB DRAM;
    Up to 6TB Intel® Optane™ Persistent Memory  ;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  2. 1 PCIe 4.0 x8 LP
    4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots,
  3. 2 M.2 NVMe or SATA for boot drive only
    Total 8x 3.5″ Hot-swap drive bays
    Up to 8 NVMe drives (4 NVMe drives supported by default)
  4. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  5. 2x 2200W redundant Titanium level power supplies

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-740GP-TNRBT
Motherboard
Super X12DPG-QBT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count Up to 40C/80T; Up to 60MB Cache per CPU
Note Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 4 double-width GPU(s)
CPU-GPU Interconnect PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect PCIe
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage 1.2 V
On-Board Devices
SATA SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor Full-Tower
Model CSE-747BTS-R2K20BP
Dimensions and Weight
Height 18.1″ (460mm)
Width 7″ (178mm)
Depth 26.5″ (673mm)
Package 12.7″ (H) x 27″ (W) x 37.5″ (D)
Weight Net Weight: 52.9 lbs (24 kg) Gross Weight: 57 lbs (25.85 kg)
Available Color black

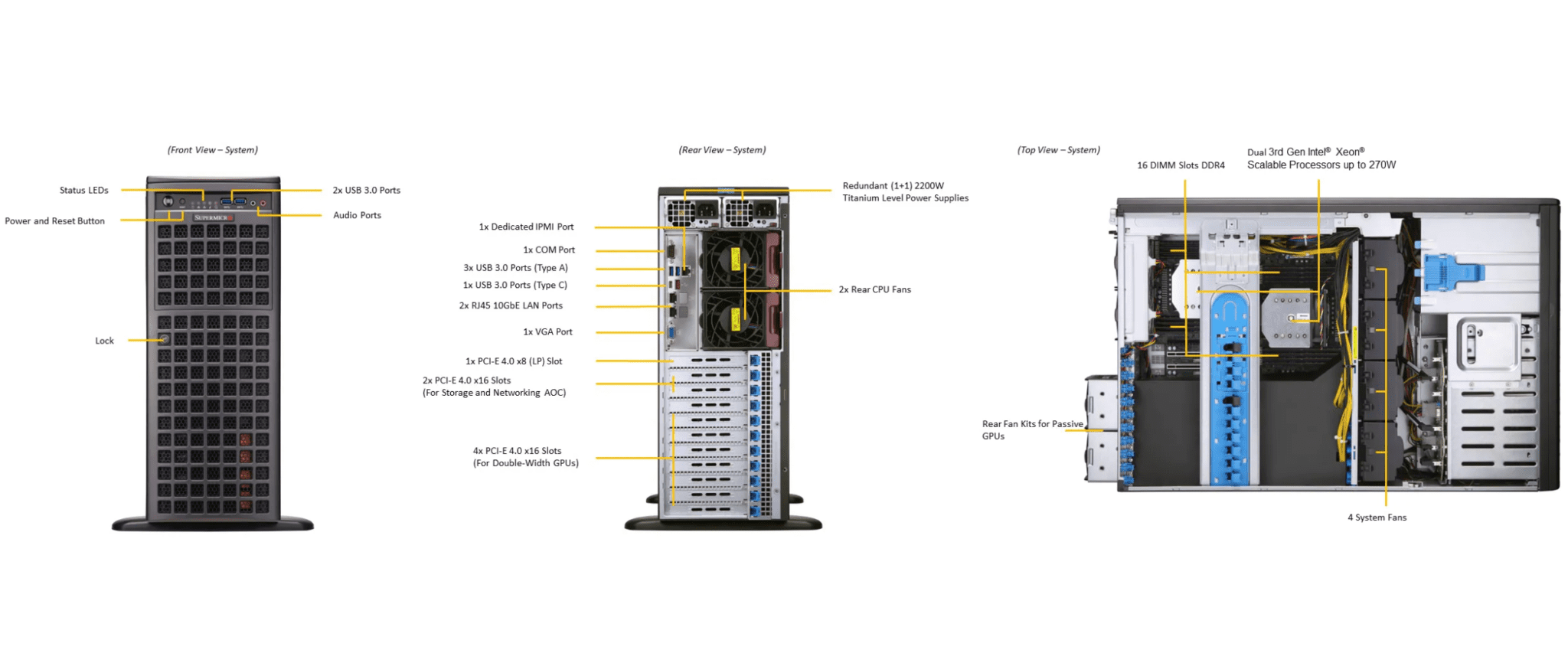

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED
Expansion Slots
PCI-Express (PCIe)
  • 4 PCIe 4.0 x16 FHFL slot(s)
  • 2 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x8 LP slot(s)
Drive Bays / Storage
Hot-swap 8x 3.5″ hot-swap NVMe/SATA/SAS Support drive bays (4x 2.5″ NVMe hybrid)
M.2
System Cooling
Fans 4 heavy duty fans with optimal fan speed control
Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB Max: 1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
