GPU SuperServer SYS-421GE-TNRT3 / 4U | Taknet
  • Supermicro

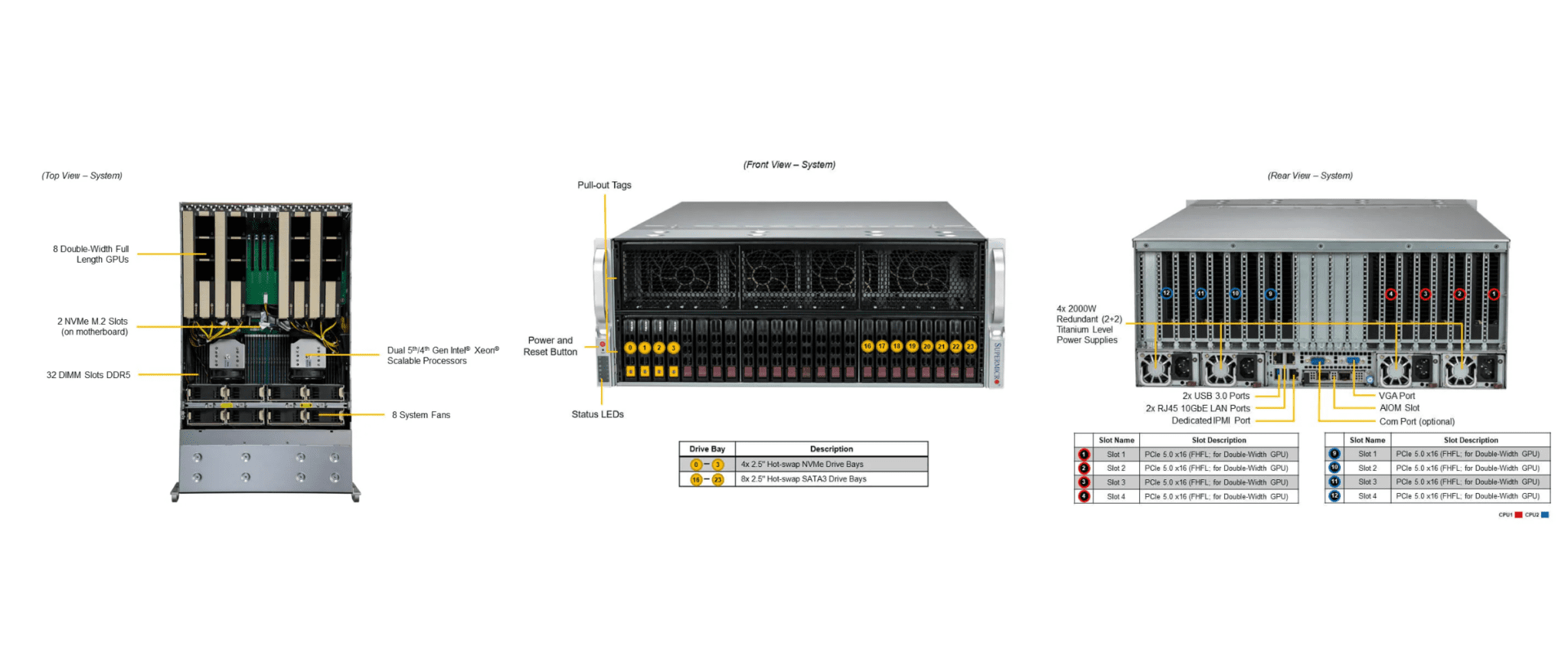

GPU SuperServer SYS-421GE-TNRT3 / 4U

Key Applications

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging

Key Features

  1. 5th/4th Gen Intel®  Xeon® Scalable processor support
  2. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  3. 8 PCIe Gen 5.0 X16 FHFL Slots
    AIOM/OCP 3.0 Support
  4. 4×2.5″ Hot-swap  NVMe drive bays
    8 HOT SWAP 2.5” SATA/SAS (AOC required)
    8x 2.5″ Hot-swap  SATA drive bays
  5. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  6. 4x 2700W (2+2) Redundant Power Supplies, Titanium Level

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-421GE-TNRT3
Motherboard
Super X13DEG-OA
Processor
CPU
Core Count Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 385W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count Up to 8 double-width or 8 single-width GPU(s)
Supported GPU
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect NVIDIA® NVLink® Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage 1.1 V
On-Board Devices
Chipset Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video 1 VGA port(s)
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 4U Rackmount
Model CSE-418G2TS-R5K40P
Dimensions and Weight
Height 7″ (178mm)
Width 17.2″ (437mm)
Depth 29″ (737mm)
Package 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Color Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) 12 PCIe 5.0 x16 FHFL slot(s)
Drive Bays / Storage
Hot-swap 24x 2.5″ hot-swap NVMe/SATA/SAS drive bays (4x 2.5″ NVMe hybrid; 4x 2.5″ NVMe dedicated)
M.2
System Cooling
Fans 8 heavy duty fans with optimal fan speed control
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 2700W Redundant Titanium Level power supplies
Dimension (W x H x L) 73.5 x 40 x 203 mm
AC Input
  • 2700W: 200-240Vac / 50-60Hz
  • 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)
  • Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
