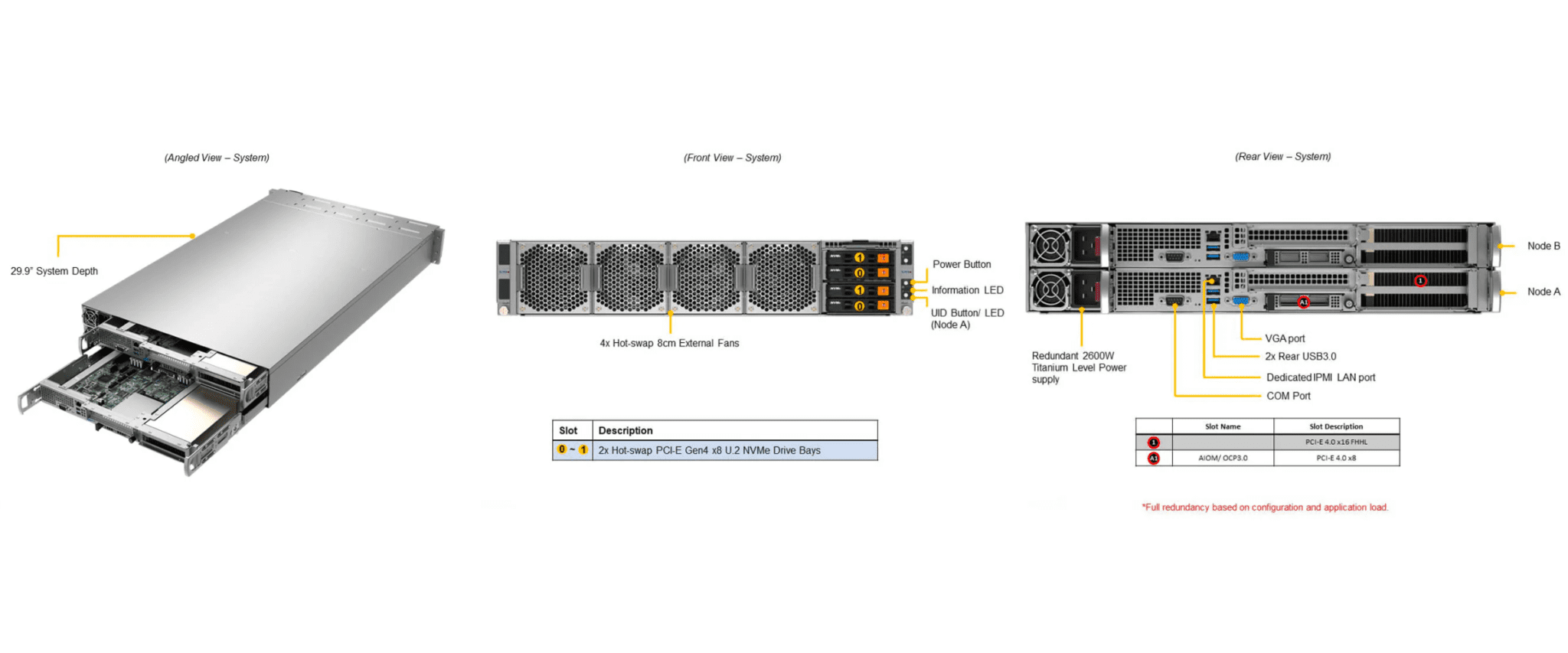

GPU SuperServer SYS-210GP-DNR / 2U

Key Applications

High Performance Computing
AI/Deep Learning Training
Media/Video Streaming
Industrial Automation, Retail
Cloud Gaming

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
Intel® C621A Chipset
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3 PCIe Gen 4.0 x16 FHFL DW
2 front Hot-swap 2.5″ U.2 NVMe Gen4 drive bays

2 M.2 NVMe and SATA for boot drive only
2600W Redundant (1+1) Power SuppliesTitanium Level (96%) (Full redundancy based on configuration and application load)
AST2500 BMC

Product Specifications

Product SKUs
SuperServer SYS-210GP-DNR
Motherboard
Super X12SPG-NF
Processor (per Node)
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache
Note	Supports up to 270W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count	Up to 3 double-width or 3 single-width GPU(s)
Supported GPU	NVIDIA PCIe: RTX A4500,A40,A100,A40,RTX A4000,A30,A10 View GPU Options
GPU-GPU Interconnect	PCIe
Certification
System Memory (per Node)
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-227GTS-R2K63P
Dimensions and Weight
Height	3.47″ (88mm)
Width	17.6″ (447mm)
Depth	29.9″ (760mm)
Package	9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight	Net Weight: 55 lbs (24.94 kg) Gross Weight: 60 lbs (27.21 kg)
Available Color	Black Front & Silver Body
Front Panel
Buttons	Power On/Off button System UID button/LED
LEDs	Hard drive activity LED Information LED as manual description Network activity LEDs Power status LED
Expansion Slots (per Node)
PCI-Express (PCIe)	3 PCIe 4.0 x16 FHFL DW slot(s)
Drive Bays / Storage (per Node)
Hot-swap	2x 2.5″ hot-swap NVMe Support drive bays (2x 2.5″ NVMe dedicated)
M.2	2 M.2 NVMe OR 2 M.2 SATA3 View M.2 Options
System Cooling
Fans	4 Removable heavy-duty Fan(s)
Power Supply
2600W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 265 mm
AC Input	2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
