GPU A+ Server AS -A126GS-TNBR / 10U

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Healthcare
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Climate and Weather Modeling
  • Finance & Economics

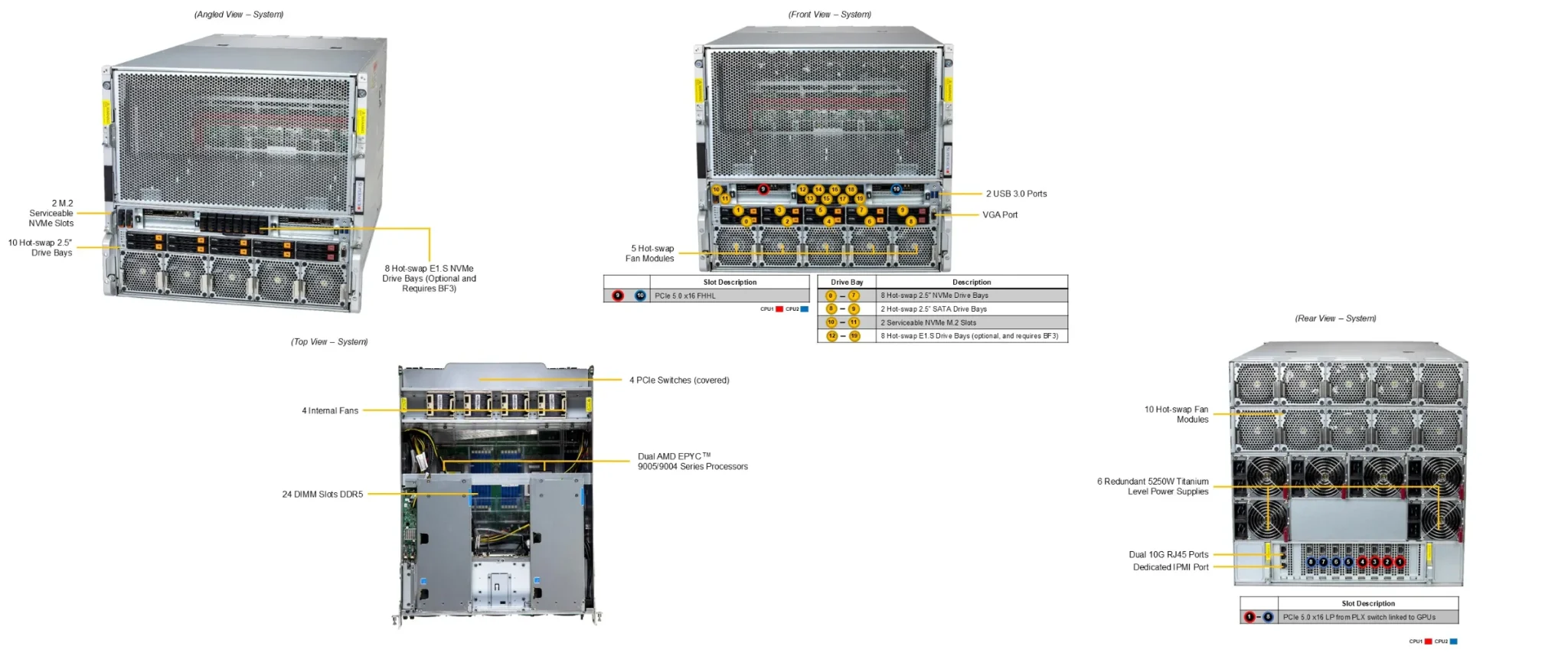

Key Features

  1. Dual AMD EPYC™ 9005/9004 Series Processors
  2. Support 8 onboard SXM GPU accelerator cards, air cooled
  3. 24 DIMM slots DDR5, up to 6000MT/s (1DPC only)
  4. 2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
  5. 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
    • 8 front hot-swap 2.5″ NVMe + 2 hot-swap 2.5″ SATA drive bays
    • 8 E1.S drive bays (optional- requires BF3)
    • 2 Serviceable M.2 slots with RAID

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS-A126GS-TNBR
Motherboard
Super H14DSG-OD
Processor
CPU
Core Count Up to 384C/768T
Note Supports up to 500W TDP CPUs
GPU
Max GPU Count 8 onboard GPUs
Supported GPU NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect NVIDIA® NVLink® with NVSwitch™
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage 1.1V
On-Board Devices
Chipset System on Chip
Network Connectivity
Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 2 USB 3.0 Type-A ports (Rear)
Video 1 VGA port
TPM 1 TPM header
System BIOS
BIOS Type AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 10U Rackmount
Model CSE-GP1001TS-R000NPF
Dimensions and Weight
Height 17.2″ (438.8 mm)
Width 17.6″ (449 mm)
Depth 33.2″ (843.28 mm)
Package 25.2″ (H) x 49.4″ (W) x 27.3″ (D)
Weight
  • Gross Weight: 183 lbs (83.1 kg)
  • Net Weight: 122.7 lbs (55.64 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Buttons
  • Power On/Off
  • UID/ Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2 2 M.2 NVMe slots (M-key 22110 (default))
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays
  • 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 8 bays
  • 8 front hot-swap E1.S NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2 2 M.2 NVMe slots (M-key)
System Cooling
Fans 19x 8cm heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud
Power Supply
6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies
Dimension (W x H x L) 106.5 x 82.1 x 245.3 mm
Input 5250W: 200-240Vac / 50-60Hz
+12V Max: 125A / Min: 0A (200Vac-240Vac)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Certification 94%+ Titanium (certification pending) Level [ Test Report ]
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
