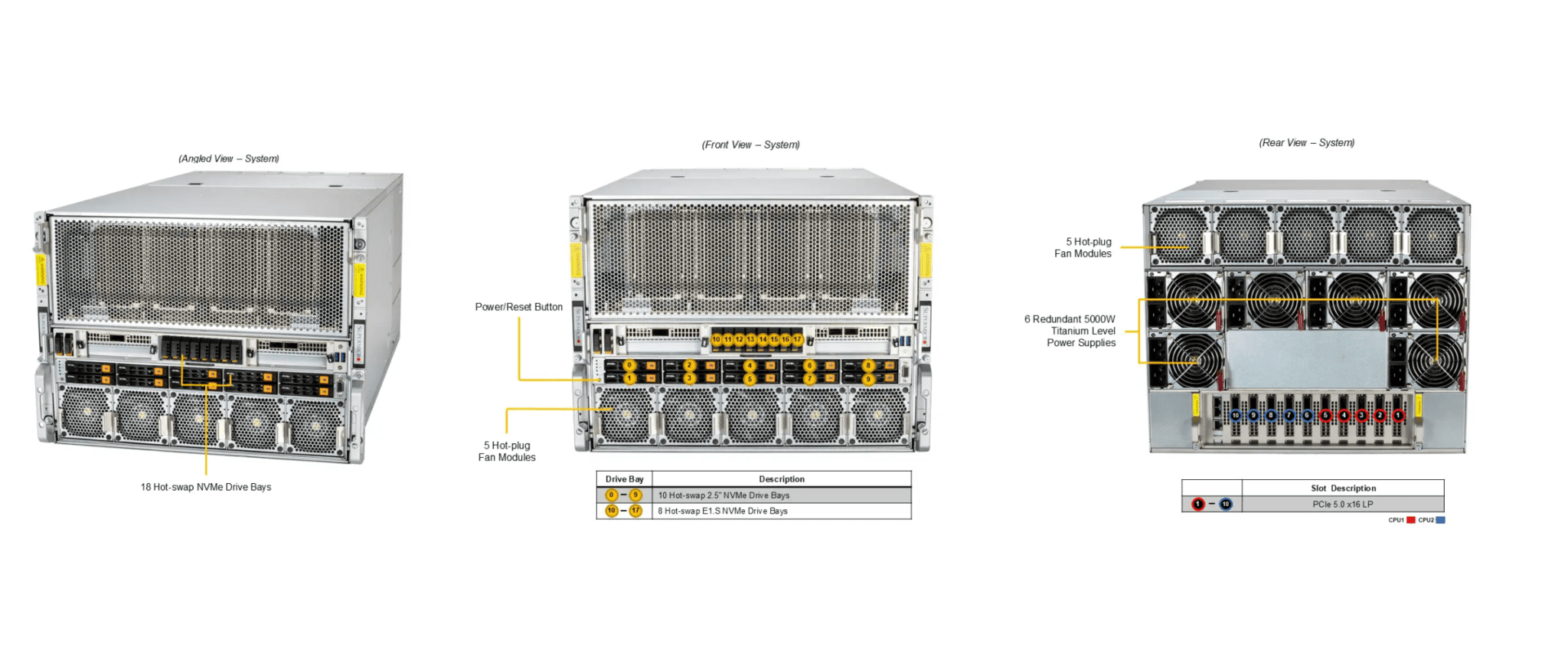

GPU A+ Server AS-8126GS-TNMR / 8U

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Climate and Weather Modeling

Key Features

  1. Dual Socket SP5 AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
  2. 8 onboard OAM GPU accelerator cards
  3. Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
  4. Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHFL slots
  5. 8 front hot-swap 2.5″ NVMe + 2 front hot-swap 2.5″ SATA w/ optional 8 E1.S drives

Categories

Download datasheet

Product Specifications

Product SKUs
A+ Server AS -8126GS-TNMR
Motherboard
Super H14DSG-OD
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Note Supports up to 500W TDP CPUs
GPU
Max GPU Count Up to 8 onboard GPUs
Supported GPU AMD: Instinct MI300X Accelerators
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset System on Chip
Input / Output
Video 1 VGA port
System BIOS
BIOS Type AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 8U Rackmount
Model CSE-GP805TS-R000NPF
Dimensions and Weight
Height 13.8″ (356 mm)
Width 17.6″ (447 mm)
Depth 33.2″ (843 mm)
Package 27.6″ (H) x 51″ (W) x 29.5″ (D)
Weight
  • Gross Weight: 158.73 lbs (72 kg)
  • Net Weight: 105.82 lbs (48 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Buttons
  • Power On/Off
  • UID/ Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default: 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays
  • 2 front hot-swap 2.5″ SATA drive bays
  • 8 front hot-swap 2.5″ NVMe drive bays
  • Option A: Total 8 bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2 2 M.2 NVMe slots (M-key)
System Cooling
Fans N/A
Power Supply
6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies
Dimension (W x H x L) 106.5 x 82.1 x 245.3 mm
Input 5250W: 200-240Vac / 50-60Hz
+12V Max: 125A / Min: 0A (200Vac-240Vac)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Certification 94%+ Titanium (certification pending) Level [ Test Report ]
Operating Environment
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
