Supermicro

GPU A+ Server AS-5126GS-TNRT / 5U

Key Applications

AI / Deep Learning
3D Rendering Farm
Visualization / Simulation
High Performance Computing
Multimedia/Digital Content creation

Key Features

Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
Support for up to 8 double-width PCIe GPU accelerator cards
Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
Up to 9 PCIe 5.0 x16 FHFL slots

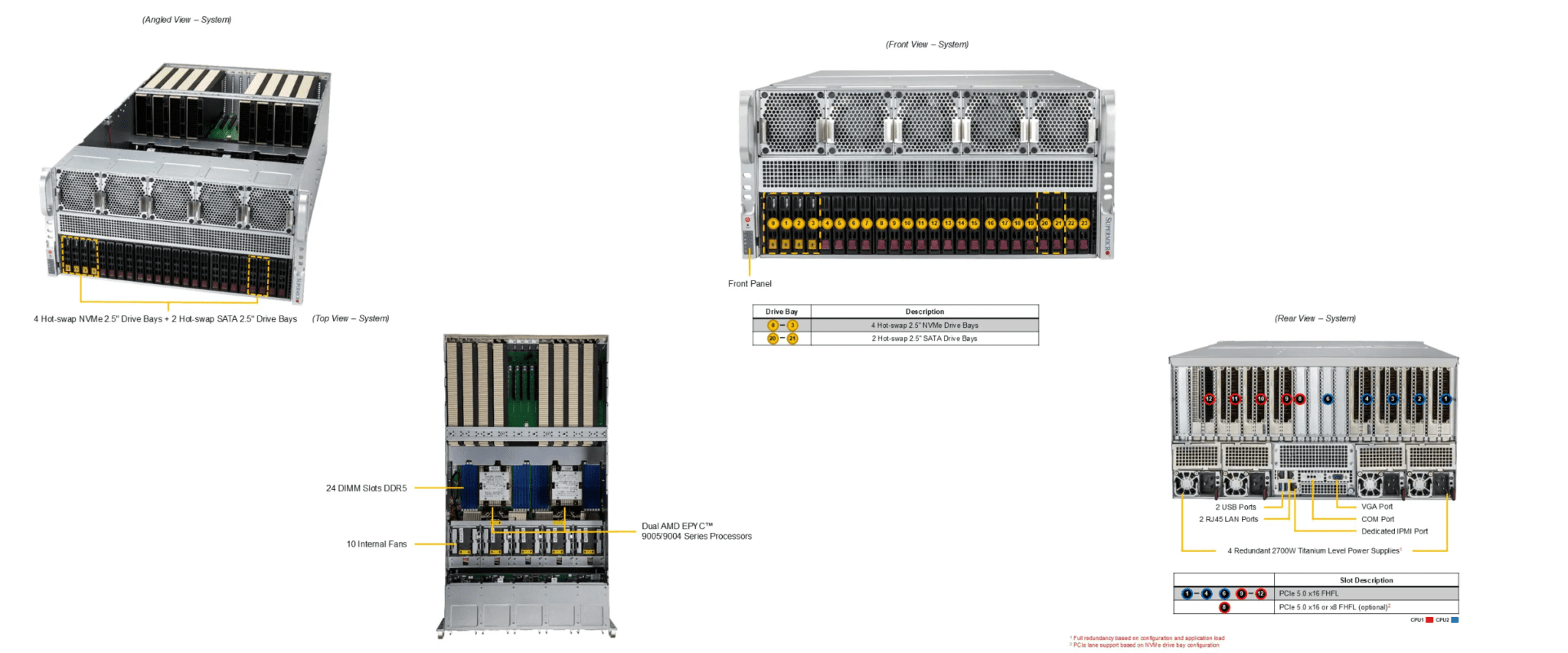

Up to 2 front hot-swap 2.5″ SATA + 4 front hot-swap 2.5″ NVMe drive bays

Product Specifications

Product SKUs
A+ Server AS -5126GS-TNRT
Motherboard
Super H14DSG-O-CPU
Processor
CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 192C/384T
Note	Supports up to 500W TDP CPUs
GPU
Max GPU Count	Up to 8 double-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S View GPU Options
CPU-GPU Interconnect	Direct Attached
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM View Memory Options
On-Board Devices
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GBASE-T LAN ports
USB	2 ports (rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	5U Rackmount
Model	CSE-528G2TS-R000NDP
Dimensions and Weight
Height	8.75″ (222.5 mm)
Width	17.2″ (437 mm)
Depth	29″ (737 mm)
Package	17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 9 PCIe 5.0 x16 FHFL slots View AOC Options
Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bays 2 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe drive bays View NVMe Options View Drive Options
M.2	1 M.2 PCIe 3.0 x4 NVMe slot (M-key) View M.2 Options
System Cooling
Fans	10 heavy duty fans with optimal fan speed control
Power Supply
6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
Input	2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling	Return Server-End of Life Product
