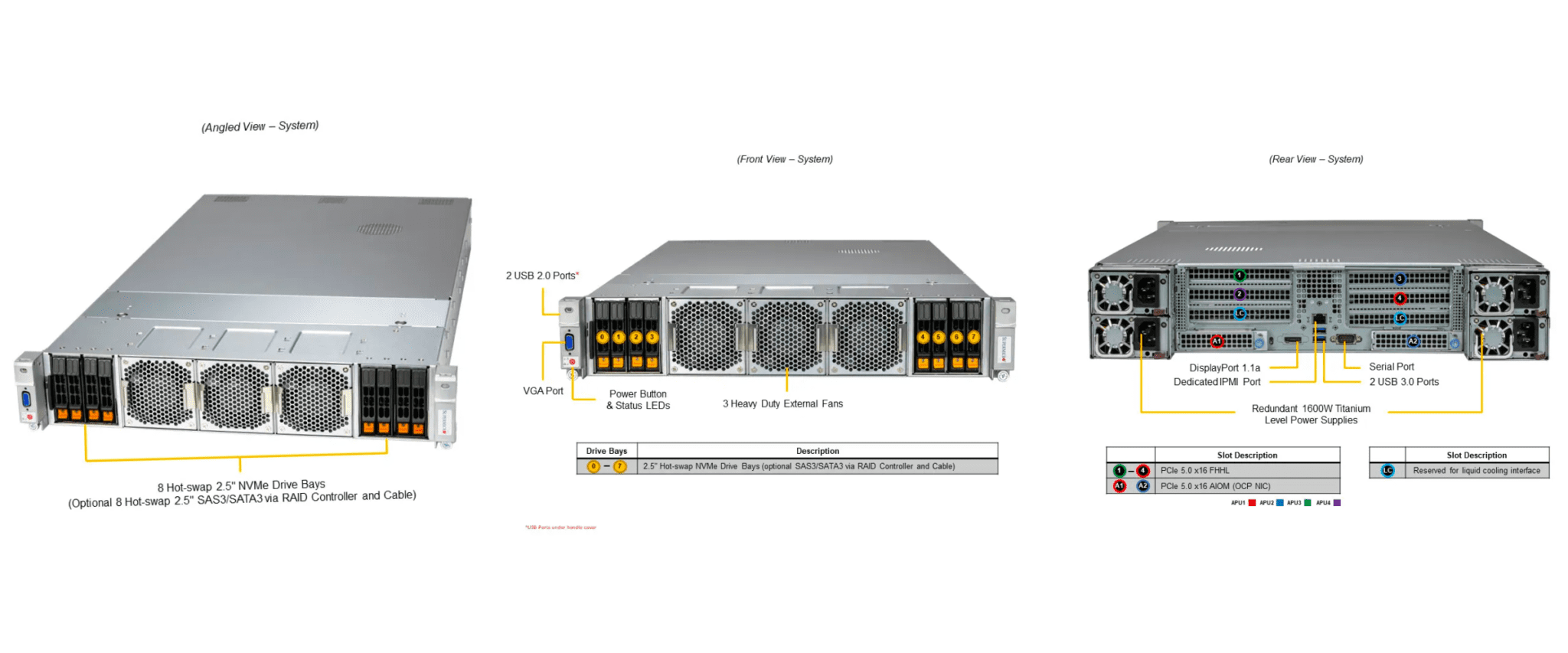

GPU A+ Server AS-2145GH-TNMR 2U

Key Applications

Quad AMD® EPYC™ MI300A processors
HBM3 Stacks 512GB
Optional PCIe configurations up to 6 PCIe slots x16 FHHL
Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
Default 8x 2.5″ Hot-swap NVMe or Optional 8x 2.5″ SAS3/SATA3 via storage add-on card;

2x internal M.2 NVMe/SATA;
3 heavy duty fans w/ Liquid Cooled
4x 1600W redundant Titanium level power supplies

Product SKUs
A+ Server AS -2145GH-TNMR
Motherboard
Super H13QSH
Processor
CPU	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Note	Supports up to 760W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	Up to 4 onboard GPU(s)
Supported GPU	AMD: MI300A View GPU Options
System Memory
Memory	Slot Count: Onboard Memory Max Memory: Up to 512GB ECC HBM3
On-Board Devices
Chipset	AMD SH5
Network Connectivity	Via AIOM View AIOM Options
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 port(s) (2 front) 2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s) 1 DisplayPort(s)
Serial Port	1 COM Port(s) (1 rear)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-218H2TS-R3K2AWP
Dimensions and Weight
Height	3.5″ (87.9mm)
Width	17.3″ (438.4mm)
Depth	32″ (812.9mm)
Package	9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight	Net Weight: 45.5 lbs (20.64 kg) Gross Weight: 71.5 lbs (32.43 kg)
Available Color	Black
Expansion Slots
PCI-Express (PCIe)	4 PCIe 5.0 x16 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap	8x 2.5″ hot-swap NVMe/SAS3/SATA3 drive bays
M.2	2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans	3 Heavy duty counter-rotating 8cm Fan(s)
Liquid cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
