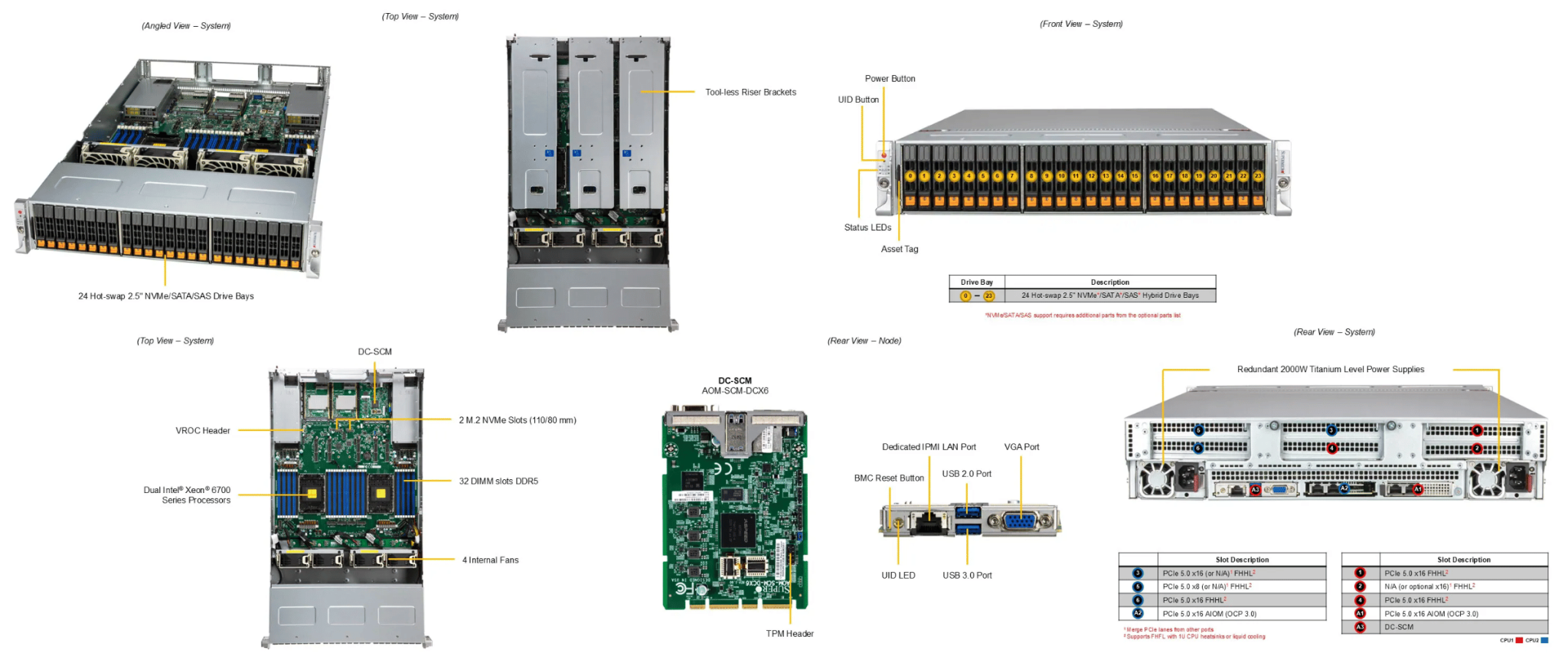

CloudDC SuperServer SYS-222C-TN / 2U

Key Applications

  • Networking Appliance
  • Data Center Optimized, Value IaaS
  • Cloud Computing
  • HPC, Data Center
  • Private & Hybrid Cloud
  • Cloud Solution Provider (CSP)

Key Features

  1. Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
  2. Optimized power & balanced performance for cloud applications
  3. Server management flexibility with OpenBMC

Categories

Download datasheet

Product Specifications

Product SKUs
SuperServer SYS-222C-TN
Motherboard
Super X14DBHM
Processor
CPU
Core Count Up to 144C/144T; Up to 108MB Cache per CPU
Note Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 3 double-width or 6 single-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
NVMe
Chipset System on Chip
Network Connectivity
Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
USB 1 USB 3.0 Type-A port (Rear), 1 USB 2.0 Type-A port (Rear)
Video 1 VGA port (Rear)
TPM 1 TPM header
System BIOS
BIOS Type AMI 64MB SPI Flash ROM
Management
Software
Power configurations ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
Chassis
Form Factor 2U Rackmount
Model CSE-DC201TS-R000NP
Dimensions and Weight
Height 3.47″ (88 mm)
Width 17.25″ (438 mm)
Depth 30.7″ (780 mm)
Package 9.4″ (H) x 23.5″ (W) x 43.2″ (D)
Weight
  • Gross Weight: 83.78 lbs (38 kg)
  • Net Weight: 61.73 lbs (28 kg)
Available Color Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) FHFL slots
    • 1 PCIe 5.0 x8 (in x16) FHFL slot
  • Option A
    • 2 PCIe 5.0 x16 (in x16) FHFL slots
    • 1 PCIe 5.0 x8 (in x16) FHFL slot
  • View AOC Options
CXL Support Up to 3 internal CXL 2.0 x16/x8 Type 2/Type 3 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays
    • 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud 1 Air Shroud
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 185 mm
Input 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-30°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (Non-Condensing)
  • Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
