A+ Server AS-2014S-TR / 2U

Key Applications

  • Backup storage
  • Web or Database Servers
  • Compact Network Appliance

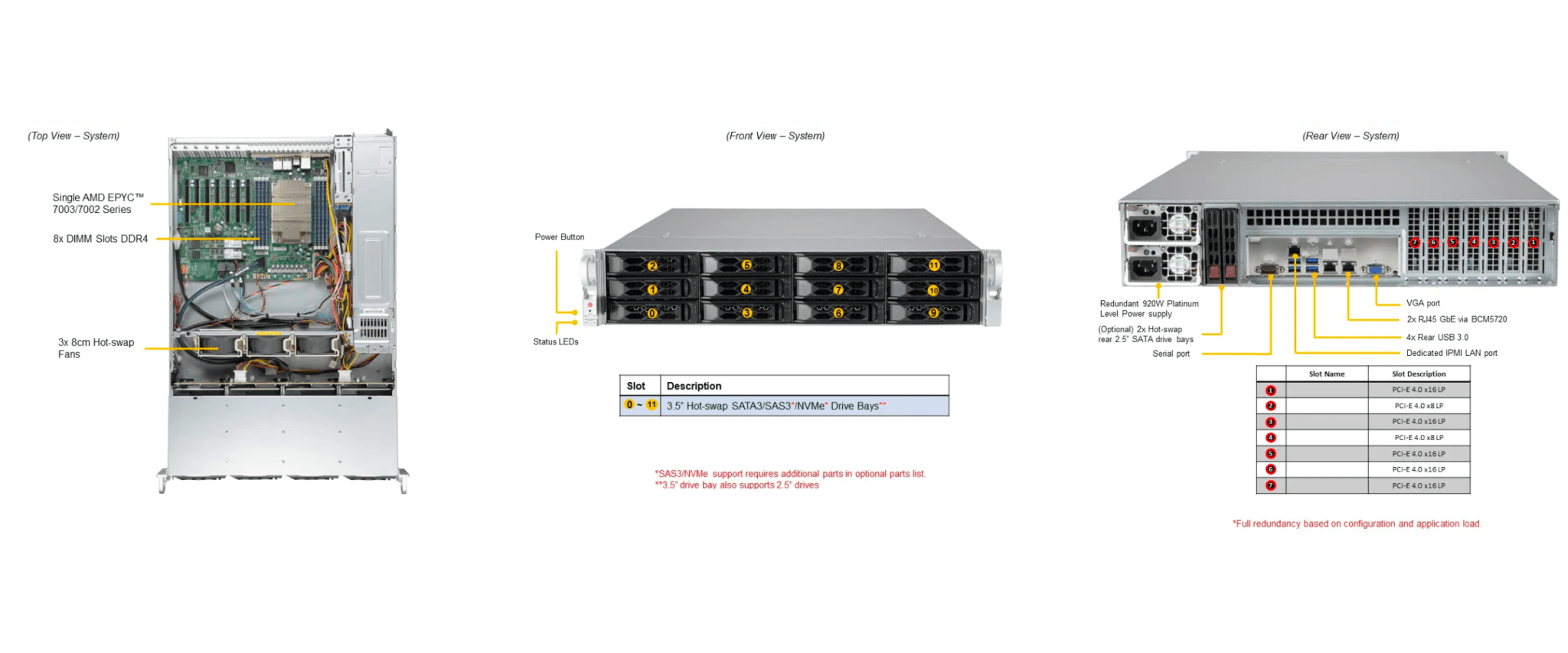

Key Features

  1. Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  3. 5 PCI-E 4.0 x16 LP slots, 2 PCI-E 4.0 x8 LP slots
  4. 2x 1GbE LAN ports, 1 dedicated IPMI LAN port
  5. 12 Hot-swap 3.5″ SATA3 drive bays, 2 rear Hot-swap 2.5″ SATA3 Drive bays via optional kit
    • M.2 Interface: 2 PCI-E 4.0 x4
    • M.2 Form Factor: 2242, 2260, 2280, 22110
    • M.2 Key: M-key
  6. 6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, 1 COM, ASPEED AST2500 BMC graphics
  7. 920W Redundant Platinum Level Power Supplies
    (Full redundancy based on configuration and application load)

Categories

Download datasheet

Product Specifications

Product SKUs
AS -2014S-TR A+ Server 2014S-TR (Black)
Motherboard
Super H12SSL-i
Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset System on Chip
SATA SATA3 (6Gbps)
Network Controllers Broadcom BCM5720 Gigabit Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video ASPEED AST2500 BMC
Input / Output
SATA 8 SATA3 (6 Gbps) ports
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 6 USB 3.0 ports (4 rear, 2 via header)
COM 1 COM Port (rear)
Video 1 VGA port
System BIOS
BIOS Type AMI 256Mb SPI Flash EEPROM
Management
Software
Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • 3 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-LA26TS-R920LPP1
Dimensions and Weight
Width 17.2″ (437mm)
Height 3.5″ (89mm)
Depth 25.5″ (648mm)
Package 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Net Weight: 33.5 lbs (15.2 kg)
  • Gross Weight: 60 lbs (27.2 kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 5 PCI-E 4.0 x16 LP slots
  • 2 PCI-E 4.0 x8 LP slots
Drive Bays
Hot-swap
  • 12 Hot-swap 3.5″ SATA3 drive bays
  • 2 rear Hot-swap 2.5″ SATA3 drive bays via optional kit
Backplane
2U SAS/SATA/NVMe HDD Backplane
System Cooling
Fans 3x 80x80x38mm middle cooling fans
Power Supply
1U 920W redundant power supply
Total Output Power and Input
  • 920W with Input 100 – 127Vac
  • 920W with Input 200 – 240Vac
  • 920W with Input 200 – 240Vdc
Dimension (W x H x L) 76 x 40 x 336 mm
AC Input Frequency 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
+5Vsb Max: 4A / Min: 0A
Output Type Backplanes (connector)
Certification Platinum Level Certified
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
