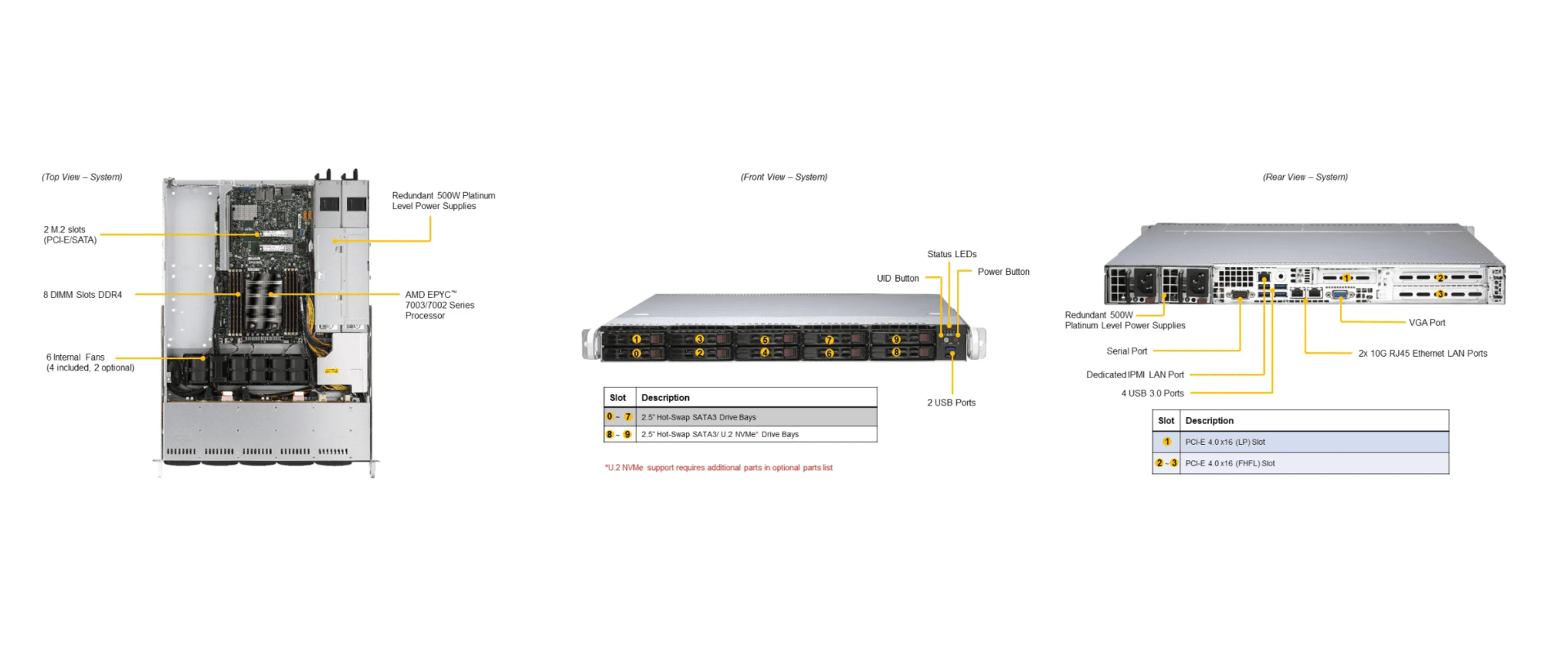

A+ Server AS-1114S-WTRT / 1U

Key Applications

  • DB Processing & Storage
  • Data Center Applications
  • Firewall Applications

Key Features

  1. Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECC
    DDR4-3200MHz RDIMM/LRDIMM
  3. 2 PCI-E 4.0 x16 (FHFL) slots,
    1 PCI-E 4.0 x16 (LP) slot
  4. Integrated IPMI 2.0 + KVM with dedicated LAN
    • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  5. 10 Hot-swap 2.5″ SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
  6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
  7. 1 VGA,
    7 USB 3.0 (4 rear, 2 front, 1 Type A)
  8. 2 SuperDOM (Disk on Module) ports
  9. 500W Redundant Power Supplies Platinum Level High-efficiency
    (Full redundancy based on configuration and application load)


Categories

Download datasheet

Product Specifications

Product SKUs
AS -1114S-WTRT Standard version with PWS-504P-1R (Platinum Level)
AS -1114S-WTRT-EU European version with PWS-601A-1R (Titanium Level)
Motherboard
Super H12SSW-NT
Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
  • (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset System on Chip
SATA SATA3 (6Gbps)
Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video ASPEED AST2500 BMC
Input / Output
SATA 2 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video 1 VGA port
DOM 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software
Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-116TS-R504WBP2
Dimensions and Weight
Width 17.2″ (437mm)
Height 1.7″ (43mm)
Depth 23.5″ (597mm)
Package 7.63″ (H) 23.42″ (W) 31.45″ (D)
Gross Weight 46 lbs (20.9kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  • * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
Drive Bays
Hot-swap
  • 10 Hot-swap 2.5″ SATA3 drive bays
  • Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Note: AS -1114S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
Total Output Power 500W
Dimension (W x H x L) 54.5 x 40.25 x 320 mm
Input 100-240Vac, 50-60Hz, 6.1-2.6A
+12V Max: 42A / Min: 0.5A
+5Vsb Max: 4A / Min: 0A
Output Type Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification
Platinum Certified
[ Test Report ]
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
