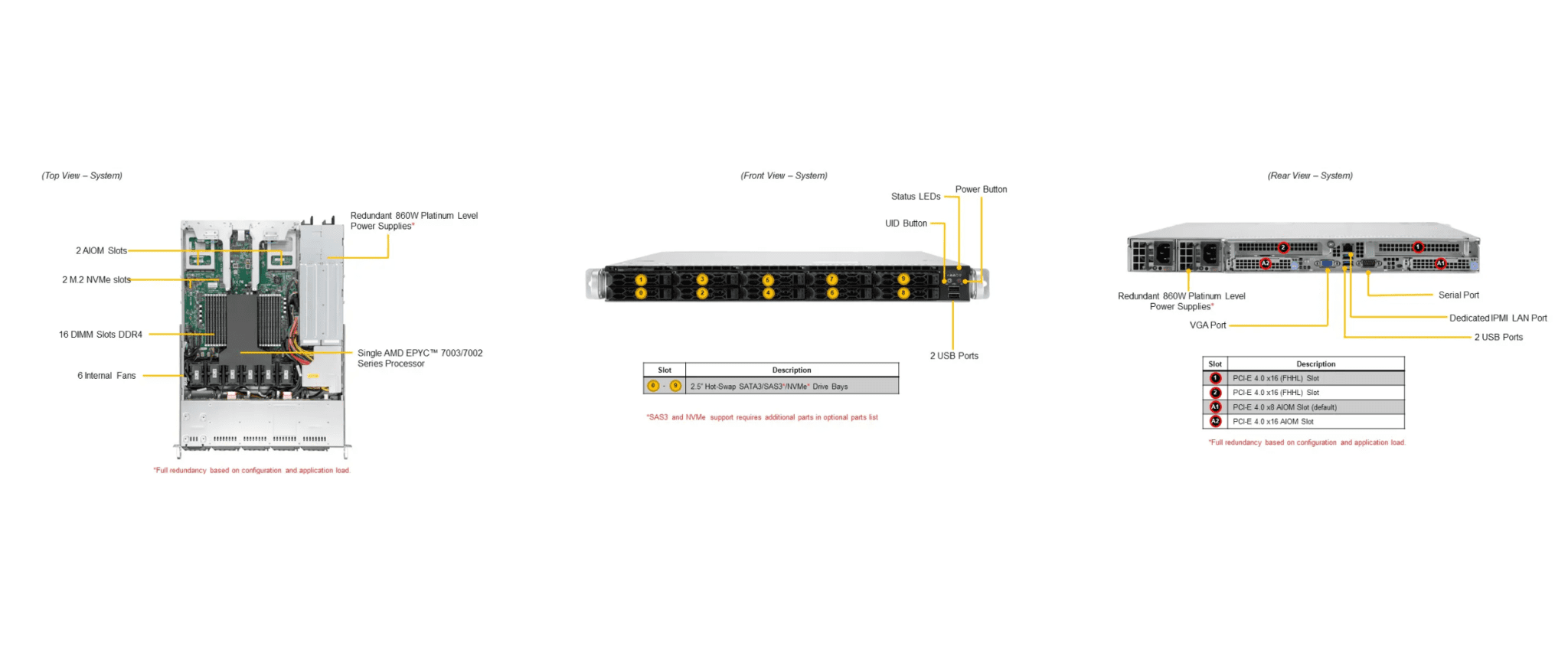

A+ Server AS-1114CS-TNR / 1U

Key Applications

  • Financial Services
  • Cloud Computing
  • Network Appliance
  • Private Cloud
  • Content Delivery Network (CDN)
  • Deep Learning Inferencing

Key Features

  1. Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  3. Expansion slots:
    • 2 PCI-E 4.0 x16 (FHHL) slots,
    • 1 2 AIOM slots for flexible networking (One x8 AIOM slot and one x16 AIOM slot)
  4. Integrated IPMI 2.0 + KVM with dedicated LAN
    • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  5. 10 Hot-swap 2.5″ SATA3 drive bays,
    optional 10x SAS3/NVMe support via additional SAS/NVMe kit
    M.2 Interface: 2 PCI-E 4.0 x4
    M.2 Form Factor: 2242, 2260, 2280, 22110
    M.2 Key: M-Key
  6. 2 USB 3.0 ports (rear),
    1 VGA, 1 COM,
    ASPEED AST2600 BMC graphics
  7. Tool-less Drive Trays and Tool-less Brackets
  8. 860W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)

Categories

Download datasheet

Product Specifications

Product SKUs
AS -1114CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
AS -1114CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard
Super H12SSW-AN6
Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
  • (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores Up to 64 Cores
Note CPU 7773X, 7573X, 7473X, 7373X, 75F3, or 7763 requires updating Fans to 6x FAN-0163L4
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset System on Chip
SATA SATA3 (6Gbps)
Network Controllers Flexible networking provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video ASPEED AST2600 BMC
Input / Output
SATA 16 SATA3 (6 Gbps) ports
LAN
  • Networking provided via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
COM 1 COM Port (rear)
Video 1 VGA port
System BIOS
BIOS Type AMI 256Mb SPI Flash EEPROM
Management
Software
Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 6 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-LB16TS-R860AWP2
Dimensions and Weight
Width 17.2″ (437mm)
Height 1.7″ (43mm)
Package 7.76″ (H) 23.82″ (W) 32.36″ (D)
Depth 23.5″ (597mm)
Gross Weight 46 lbs (20.9kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHHL) slots
  • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)
Drive Bays
Hot-swap
  • 10 Hot-swap 2.5″ SATA3 drive bays
  • Optional 10 SAS3/NVMe drive support via additional SAS/NVMe kit
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans
6 Counter-rotating 40x40x56mm PWM fans
Power Supply
800W/860W 1U redundant power supply
Note: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level)
Total Output Power and Input
  • 800W with Input 100 – 127Vac
  • 860W with Input 200 – 240Vac
  • 860W with Input 200 – 240Vdc
Dimension (W x H x L) 54.5 x 40.25 x 322 mm
AC Input Frequency 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
+5Vsb Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Certification
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
