A+ Server AS-1014S-WTRT / 1U | Taknet
  • Supermicro

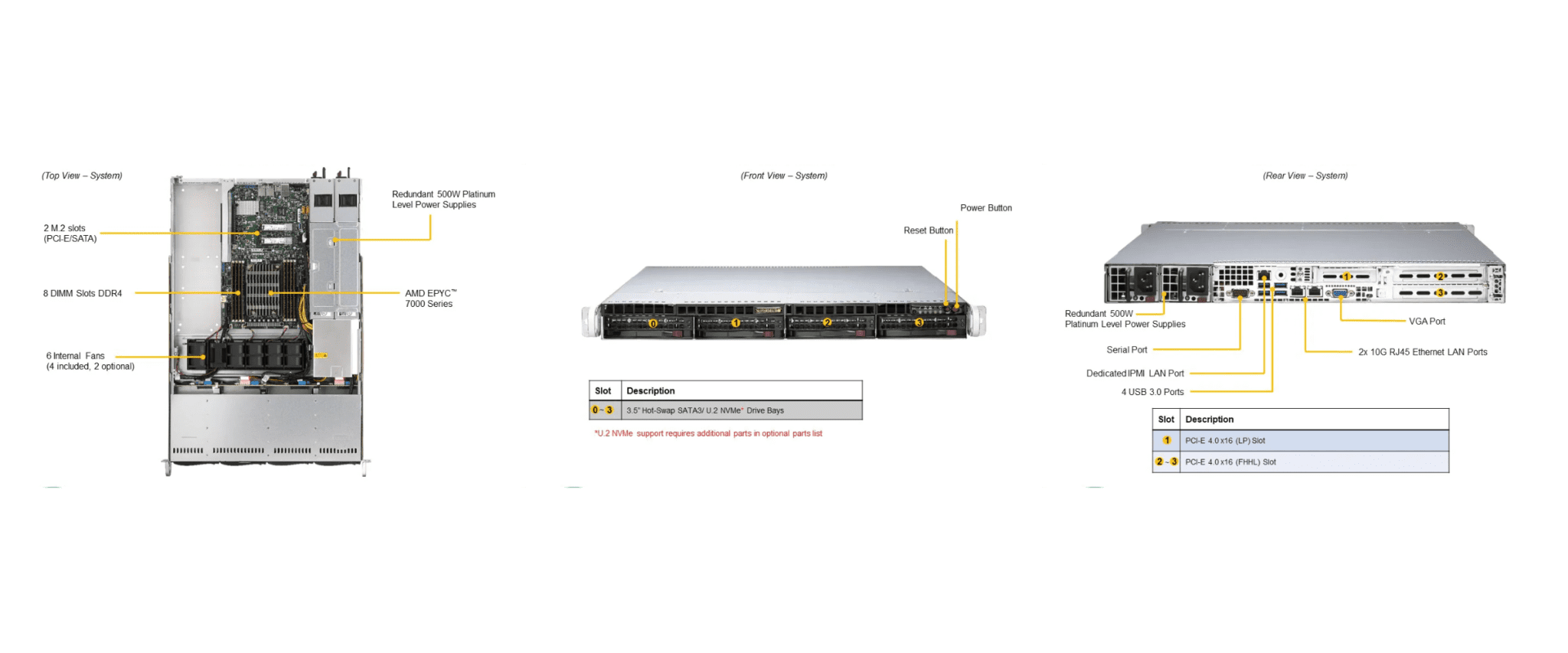

A+ Server AS-1014S-WTRT / 1U

Key Applications

  • DB Processing & Storage
  • Data Center Applications
  • Firewall Applications

Key Features

  1. Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECC
    DDR4-3200MHz RDIMM/LRDIMM
  3. 2 PCI-E 4.0 x16 (FHFL) slots,
    1 PCI-E 4.0 x16 (LP) slot
  4. Integrated IPMI 2.0 + KVM with dedicated LAN
    • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  5. 4 Hot-swap 3.5″ SATA3 drive bays, Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
  6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
  7. 1 VGA,
    5 USB 3.0 (4 rear, 1 Type A)
  8. 2 SuperDOM (Disk on Module) ports
  9. 500W Redundant Power Supplies Platinum Level High-efficiency
    (Full redundancy based on configuration and application load)


Categories

Download datasheet

Product Specifications

Product SKUs
AS -1014S-WTRT Standard version with PWS-504P-1R (Platinum Level)
AS -1014S-WTRT-EU European version with PWS-601A-1R (Titanium Level)
Motherboard
Super H12SSW-NT
Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
  • (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset System on Chip
SATA SATA3 (6Gbps)
Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video ASPEED AST2500 BMC
Input / Output
NVMe 4 U.2 NVMe Support via optional kit
SATA 4 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 5 USB 3.0 ports (4 rear, 1 Type A)
Video 1 VGA port
DOM 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software
Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-815TS-R504WBP4
Dimensions and Weight
Height 1.7″ (43mm)
Width 17.2″ (437mm)
Depth 25.6″ (650mm)
Package 7.63″ (H) 23.42″ (W) 31.45″ (D)
Weight
  • Gross Weight: 46 lbs (20.87kg)
  • Net Weight: 22 lbs (9.98kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  • * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5″ SATA3 drive bays
  • Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Peripheral 1 Slim DVD-ROM drive bay (optional)
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Note: AS -1014S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
Total Output Power 500W
Dimension (W x H x L) 54.5 x 40.25 x 320 mm
Input 100-240Vac, 50-60Hz, 6.1-2.6A
+12V Max: 42A / Min: 0.5A
+5Vsb Max: 4A / Min: 0A
Output Type Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification
Platinum Certified
[ Test Report ]
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
  • 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
  • -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
  • 8% to 90% (non-condensing)
Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
